HAC-T Standard anchor channel

A.-Channel HAC-30 68/1050 F #431894

Configurator
Technical Data
Documents
Features & Applications
Related Products
L040205_v2 (182434)
HAC_T70_0001_us_o (182477)
36132.tif
HAC_T50_0003_us_o (182479)
HAC_30 (76106)
HAC-30 (82921)
HAC-30 (82924)

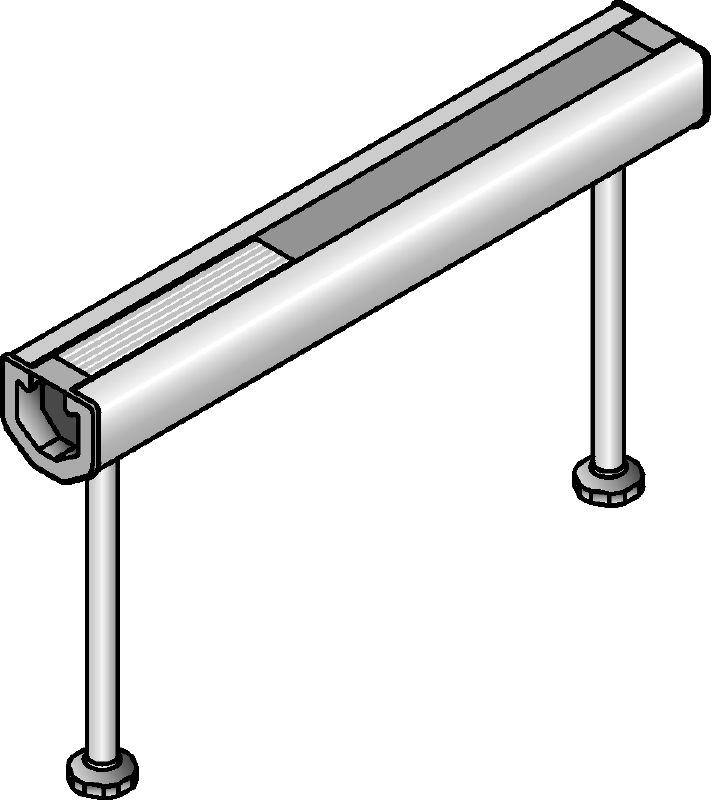

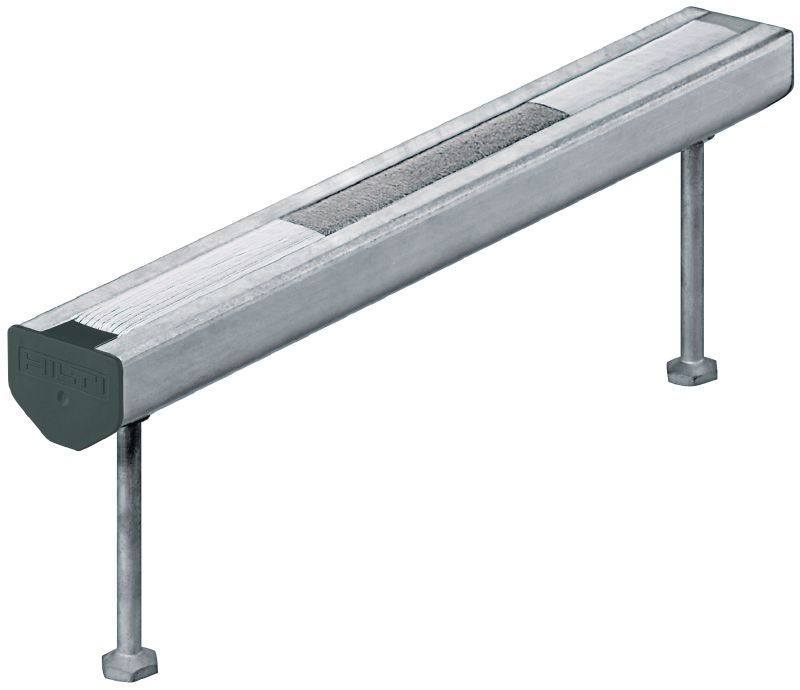

Serrated cast-in anchor channels in standard sizes and lengths with the approvals needed for 3D loads

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Channel profile: HAC-30
  • Length: 1050 mm

Choose options

Channel profile
  • HAC-30
Length
  • 1050 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 1,671.01
ZAR 1,671.01 / 1 Piece

Technical Data

Details

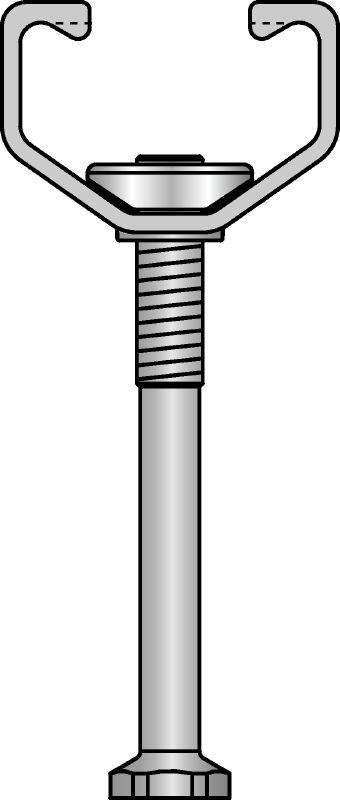

Technical illustrations
Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Channel profile
HAC-30
Length
1050 mm
Standard embedment depth
68 mm
Anchor distance
250 mm
PROFIS software
Yes

Documents

Approval document
Technical information
Operating Instruction
pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]
pdf ETA 11/0006 Hilti HAC(-V) anchor channel, English, German, Polish [ 14.5 MB ]
pdf ETA 11/0006 for HAC cast-in anchor (ETAG -, Option -), English [ 6.9 MB ]
pdf ETA_11_0006_HAC_Anchor_Channels, German [ 6.9 MB ]

Features & Applications

Features

  • High-performance, safer solution – designed for demanding 3D applications
  • Approved for static, fatigue, seismic (ICC-ESR 3520) and fire loading
  • Serrated HAC-30 Anchor Channel is compatible with Hilti MQ41 installation components
  • Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects
  • Customisable – options available for virtually any specification

Applications

  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guiderails, sliding doors or divider beams)
  • Building appliances (e.g. heating, ventilation)
  • Power plants
  • Projects with high environmental standards
