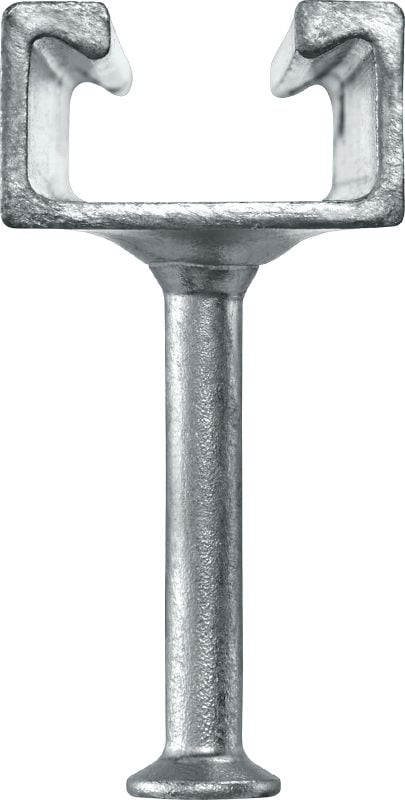

HAC-C Hot-rolled anchor channel

A.-Channel HAC-C 52/34 300 F #2168542

Hot-rolled cast-in anchor channels in standard sizes and lengths suitable for a wide range of applications

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Channel profile: HAC-C 52/34
  • Length: 300 mm

Choose options

Channel profile
  • HAC-C 52/34
Length
  • 300 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Piece
1
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

200 Packs (Total pieces 200)

EX. VAT
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Channel profile
HAC-C 52/34
Length
300 mm
Standard embedment depth
155 mm
Anchor distance
250 mm
PROFIS software
Yes

Documents

Features & Applications

Features

  • Hot-rolled channels with thick, sturdy profiles – engineered for high load resistance

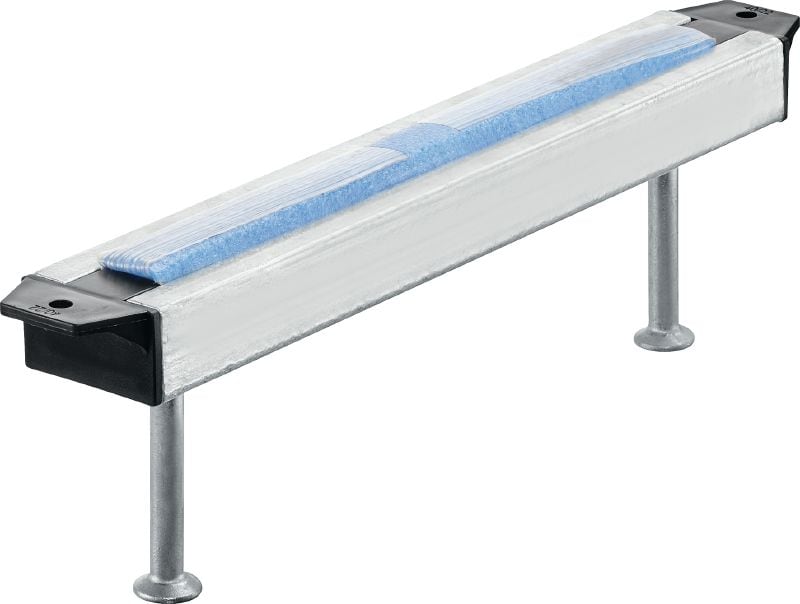

  • LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
  • Available in three sizes to fit virtually any installation – HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
  • ETA and fire approval documents available
  • Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions

Applications

  • Fastening production equipment (e.g. machines, conveyor belts)
  • Metro, railway or utility tunnels (e.g. fixing cantilever systems, supply pipes, signs, ventilation or support beams)
  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guide-rails, sliding doors or divider beams)
  • Power plants
