HVU2 Anchor capsule

Configurator
Technical Data
Documents
Features & Applications
Related Products
L129338 (2445412)
L100856_cropped (181130)
L100875_cropped (181142)
L100847_cropped (181144)
L100850_cropped (181126)
L100863_cropped (181134)

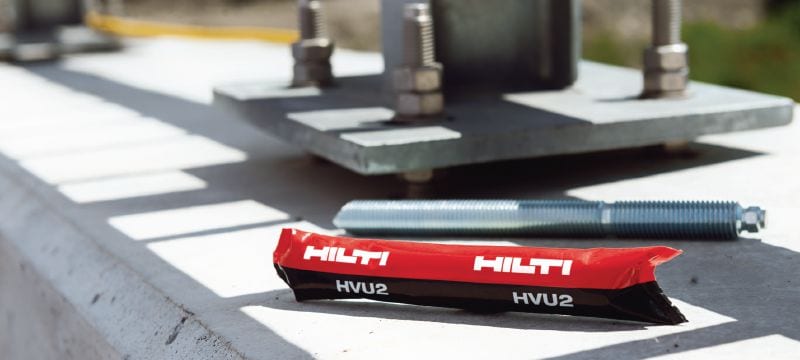

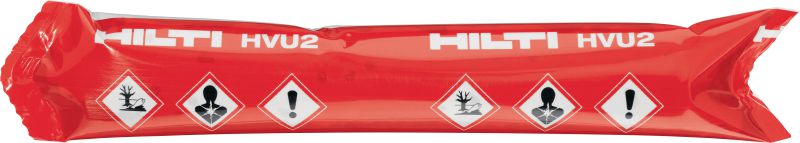

Ultimate-performance foil adhesive capsule for heavy-duty anchoring in concrete

  • Approvals / test reports: ETA, Fire
  • Base material condition: Dry
  • PROFIS software: Yes

Customers also searched for capsule or glass capsule.

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
  • M30
Standard embedment depth
  • 80 mm
  • 90 mm
  • 110 mm
  • 125 mm
  • 170 mm
  • 210 mm
  • 270 mm
Pack size
  • 4 pc
  • 5 pc
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 1,934.25

Technical Data

Approvals / test reports
ETA, Fire
Base material condition
Dry
PROFIS software
Yes
Material composition
Hybrid urethane methacrylate adhesive
Tested/approved for diamond drilling
Yes
In-service temperature – range
-40 - 120 °C
Storage and transportation temperature range
5 - 25 °C
Cleaning procedures
Manual cleaning

Documents

Approval document
Certificate
Brochure
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf ETA_16/0515_HVU2_capsule_022023, English, German, Polish [ 5.6 MB ]
pdf ETA-23/0277 HAS-U A4 Fatigue, English, German, Polish [ 5.3 MB ]

Features & Applications

Features

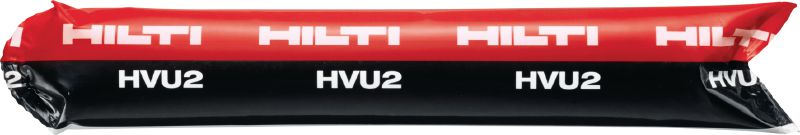

  • Tough and resilient soft foil capsule – no more risk of breakage, like with glass capsules
  • Suitable for use under tough jobsite conditions including water-saturated holes and at low temperatures, even in diamond-cored holes
  • High performance in seismic and static conditions in cracked and uncracked concrete

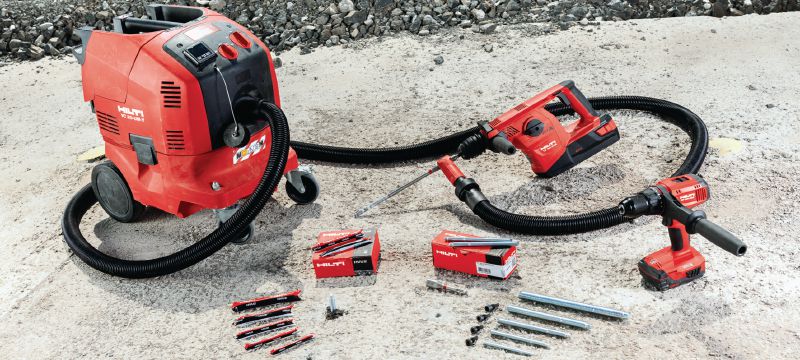

  • Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
  • Fast and convenient installation and no need to purchase a special setting tool

Applications

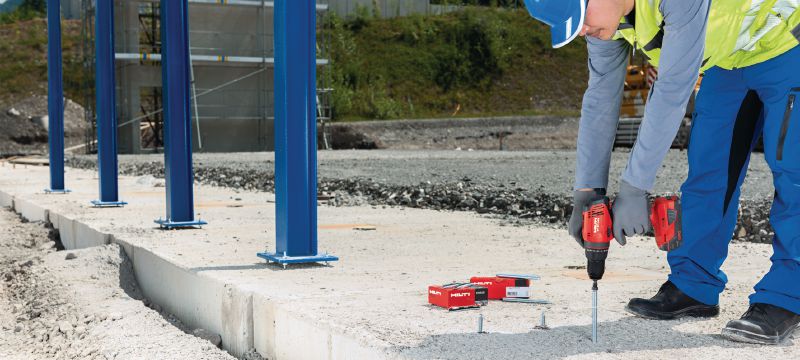

  • Anchoring steel structures (e.g. racking, guard rails, fences and gates)
  • Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
  • Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
  • Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)
  • Anchoring curtain wall facades

For approval or certificate information, please see individual items.
