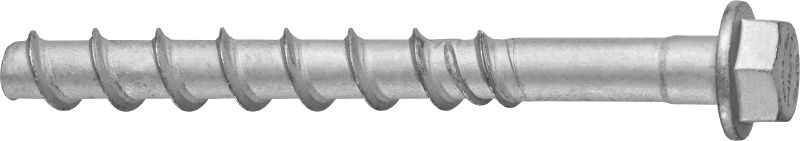

HUS4-HF Screw anchor

L144893 (1918719)
L144823_cropped (1918649)
L155913_cropped (4335940)
L155936_cropped (4341690)
L155937_cropped (4341696)

High-performing hexagonal head screw anchor for fastening to concrete and masonry (multilayer corrosion protection)

  • Material, corrosion: Carbon steel, multilayer coating
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire, Seismic

Choose options

Anchor size
  • 8 mm
  • 10 mm
  • 12 mm
  • 14 mm
  • 16 mm
Anchor length
  • 60 mm
  • 65 mm
  • 70 mm
  • 75 mm
  • 80 mm
  • 85 mm
  • 90 mm
  • 100 mm
  • 110 mm
  • 120 mm
  • 130 mm
  • 150 mm
Pack size
  • 16 pc
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 3,356.96

Technical Data

Material, corrosion
Carbon steel, multilayer coating
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, multilayer coating

Documents

pdf ETA-20/0867, HUS4 for fastening in concrete static loading, ML, English, German, Polish, French [ 38.1 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish [ 5.7 MB ]
pdf ER-969 HUS4_IAPMO_Evaluation_Report, English [ 1.1 MB ]
pdf ETA-23/0936 HUS4 screw anchor in masonry, English, German, Polish [ 22.1 MB ]

Features & Applications

Features

  • Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Hexagonal head – with an integrated washer
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

  • Fastening of baseplates – such as secondary steelwork, fences, handrails and racking systems
  • Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 8-14), metal decks (size 8-10) and masonry (size 8-10)
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
  • Suitable for permanent fastenings in dry indoor environments and outdoor use

For approval or certificate information, please see individual items.
