HUS3-H Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L068903.tif
L069388.tiff
L069420.tiff
L069284.tiff
L069438.tiff
L069358.tiff

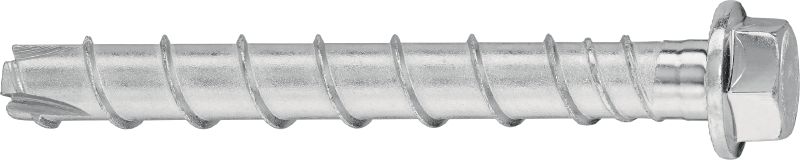

Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, hex head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for screw anchors, anchoring railings, anchors, reusable anchors or anchoring.

Choose options

Anchor size
  • 8 mm
Anchor length
  • 120 mm
  • 150 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 4,035.50

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Tested/approved for diamond drilling
No

Documents

Technical information
Approval document
Test Report
Operating Instruction
pdf Technical data sheet for HUS3 screw anchor steel to concrete and steel to masonry, English [ 1.8 MB ]
pdf TR 066 White paper W4595 (EN), English [ 2.3 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Hexagonal head with integrated washer for neat appearance when fastening through in-place parts

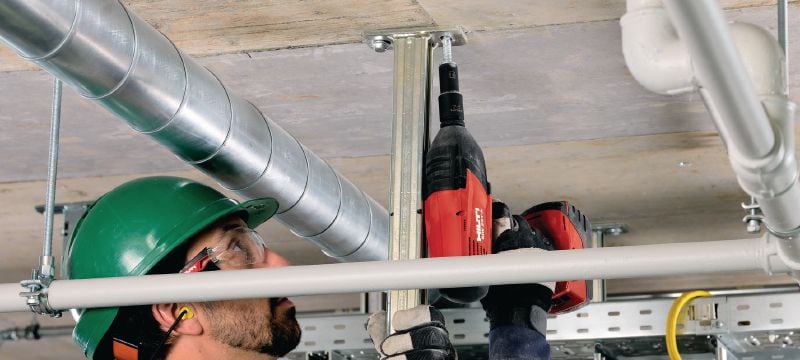

  • Ideal for overhead installation – greatly simplifies the work
  • Three embedment depths for maximum design flexibility
  • abZ (DiBt) approval for reusability in fresh concrete for temporary applications – fully-approved reusable system with gauges for all available diameters (8,10, 14 mm)

Applications

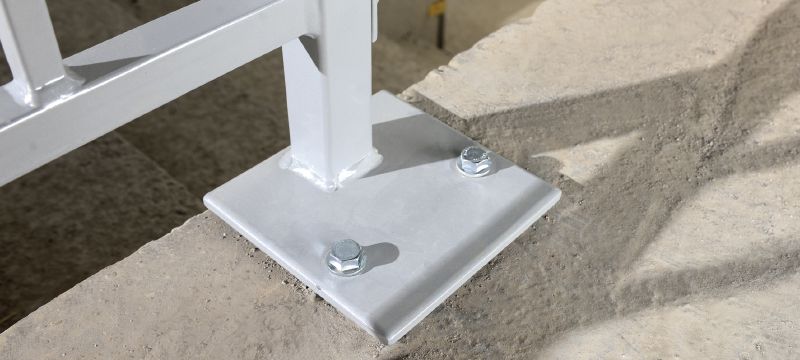

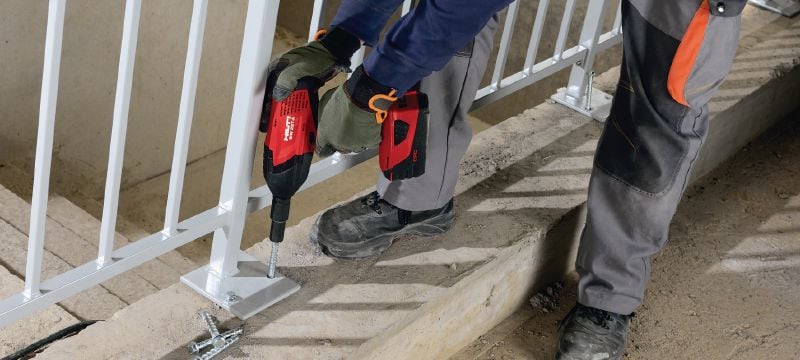

  • Railings and handrails

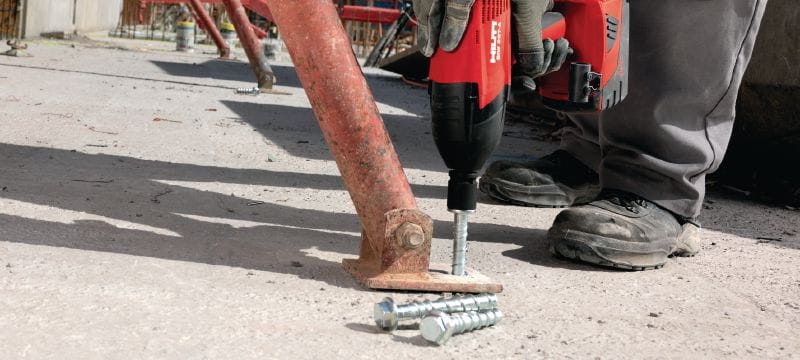

  • Formwork and bracing
  • Temporary applications
  • Fastening channels and brackets
  • Installing storage and rack systems

For approval or certificate information, please see individual items.
