HUS3-C Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L068906.tif
L069397.tiff
L069403.tiff

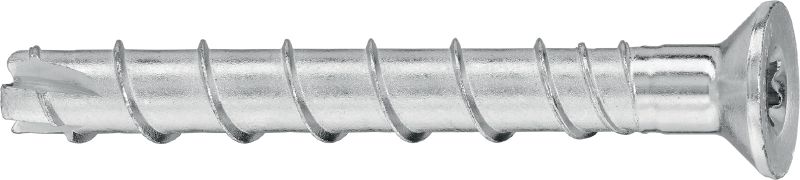

Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, countersunk head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Countersunk
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for screw anchors, anchoring railings, anchors, reusable anchors or anchoring.

Choose options

Anchor size
  • 8 mm
Anchor length
  • 65 mm
  • 85 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 2,998.50

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Tested/approved for diamond drilling
No

Documents

Technical information
Approval document
Operating Instruction
pdf Technical data sheet for HUS3 screw anchor steel to concrete and steel to masonry, English [ 1.8 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Countersunk head for neat appearance when fastening through in-place parts
  • Can be set more reliably without need for a torque wrench
  • Three embedment depths for maximum design flexibility
  • Adjustable screw: adjustability is included in the ETA approval

Applications

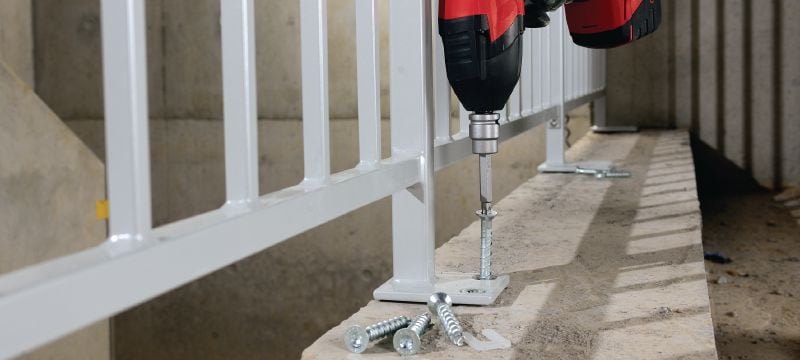

  • Railings and balustrades
  • Architectural metal
  • Glazing

For approval or certificate information, please see individual items.
