HKD Drop-in anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
30334.tif
Flush Anchor metric
30333.tif
31816.tif

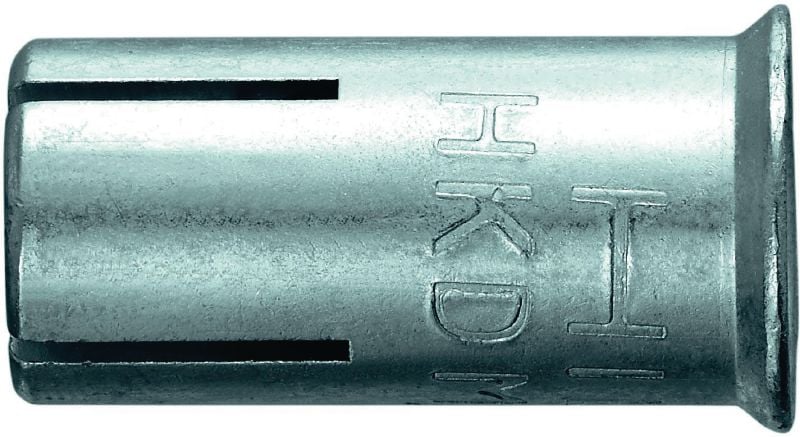

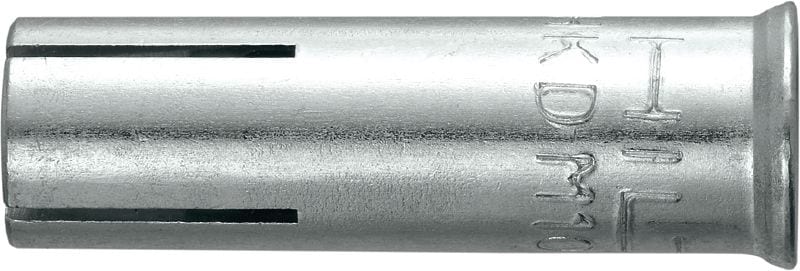

High-performance tool-set drop-in anchor (carbon steel)

  • Environmental conditions: Dry indoor
  • Approvals / test reports: DIBt, ETA, Fire, FM (Factory Mutual)
  • Material, corrosion: Carbon steel, zinc-plated

Customers also searched for hvac, plumbing, electrical, flush anchors or drop in anchor.

Choose options

Internal thread size
  • 6 mm
  • 8 mm
  • 10 mm
  • 12 mm
  • 16 mm
Anchor size
  • M6
  • M8
  • M10
  • M12
  • M16
Anchor length
  • 25 mm
  • 50 mm
  • 65 mm
Pack size
  • 1 pc
  • 25 pc
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 591.00

Technical Data

Environmental conditions
Dry indoor
Approvals / test reports
DIBt, ETA, Fire, FM (Factory Mutual)
Material, corrosion
Carbon steel, zinc-plated
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes

Documents

Technical information
Approval document
Certificate
Instruction for use
pdf Technical data sheet for the HKD push-in anchor single application, English [ 584.8 KB ]
pdf Technical data sheet for HKD push-in anchor redundant application, English [ 1 MB ]

Features & Applications

Features

  • “Intelligent” stepped expansion cone allows easy, correct setting even in harder materials
  • Available in a variety of sizes for maximised coverage of applications
  • Visual check for correct setting when used with the Hilti setting tool
  • Features a lip for flush setting regardless of hole depth
  • Shallow drilling depth (25 mm)

Applications

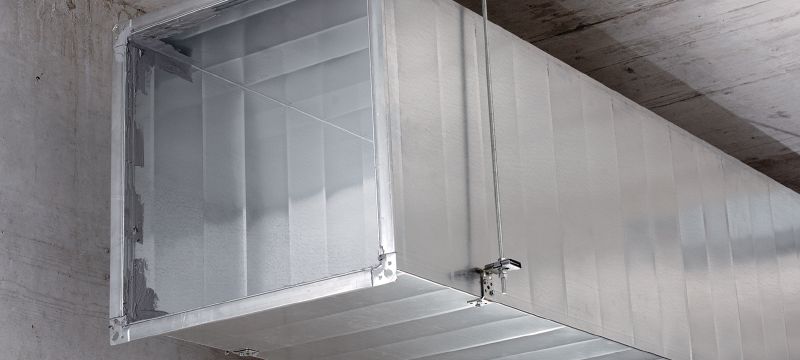

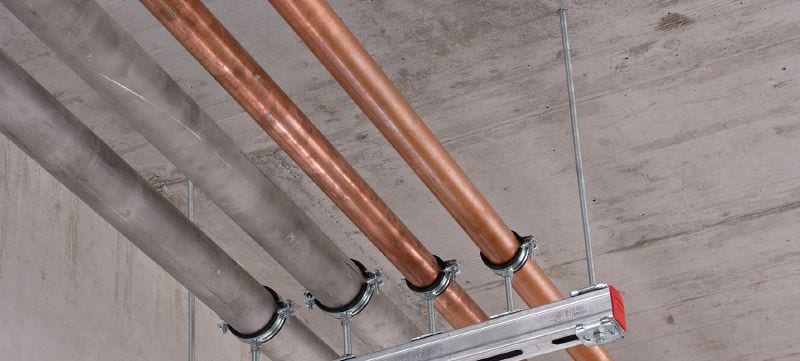

  • Medium-duty loads with anchor bolts and threaded rods, e.g. suspension systems for pipes, air ducts, sprinkler systems, etc.

For approval or certificate information, please see individual items.
