HRD-H Plastic frame anchor

34331.tif
L045197 (111333)
20884.tif
L050458.tiff
L141319_cropped (224448)
L141374_cropped (5193233)

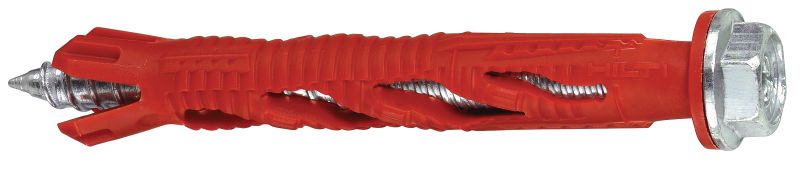

High-performance collared plastic anchor for frames (carbon steel, hex head)

  • Base materials: Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • 10 mm
Anchor length
  • 100 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 1,293.00
ZAR 25.86
/
1 Piece

Technical Data

Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Hex head
Approvals / test reports
ETA, Fire
Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Type of fastening
Through-fastening

Documents

pdf Tech_HRD_redundant_2023_en, English [ 1.2 MB ]
pdf Technical data sheet for the HRD frame anchor, English [ 691.3 KB ]

Features & Applications

Features

  • Flexible embedment depth (approved at 50 mm and 70 mm embedment depth) - the ideal anchor for a huge range of applications in virtually all base materials
  • Suitable for fastening thicknesses up to 150 mm (anchor lengths from 60 mm to 200 mm)
  • Available in 4 different materials for optimum suitability in all corrosive environments
  • Pre-assembled for optimum handling and fastening quality

Applications

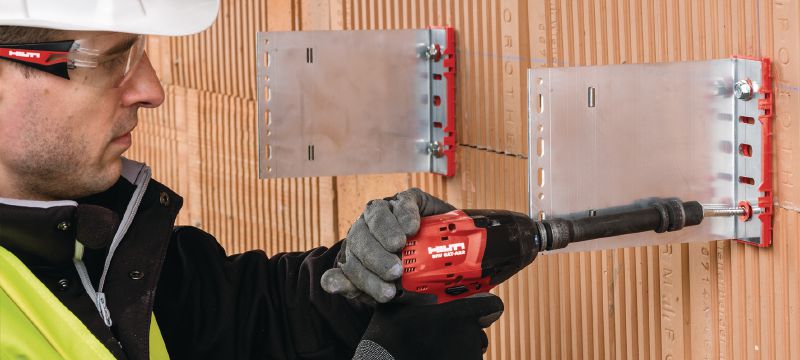

  • Fastening metal substructures for ventilated facades
  • Typical applications for metal fabricators such as fastening handrails, window bars, railings, balustrades, etc.
  • Suitable for fastening fixtures up to 150 mm thick (60-200 mm anchor length available)

For approval or certificate information, please see individual items.
