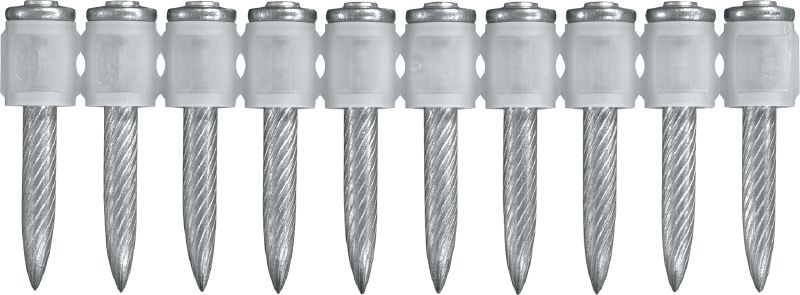

X-U MX steel/masonry nails (collated)

High-performance collated nails for fastening to concrete and steel using powder-actuated tools

Base materials: Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete): 80 mm
Minimum thickness of base material (steel): 6 mm

premium

Customers also searched for Steel nails, performance nails, Building Construction , nails or nail gun.

Technical Data

Base materials

Concrete (soft), Concrete (tough), Steel

Minimum thickness of base material (concrete)

80 mm

Minimum thickness of base material (steel)

6 mm

Corrosion protection

Galvanised zinc coated <20 µm

Environmental conditions

Dry indoor

Material

Carbon steel

Fastener shank diameter

4 mm

Point type

Ballistic point, knurled

Approvals

COLA, DIBt, IBMB, ICC-ES, LR

For use with (tools)

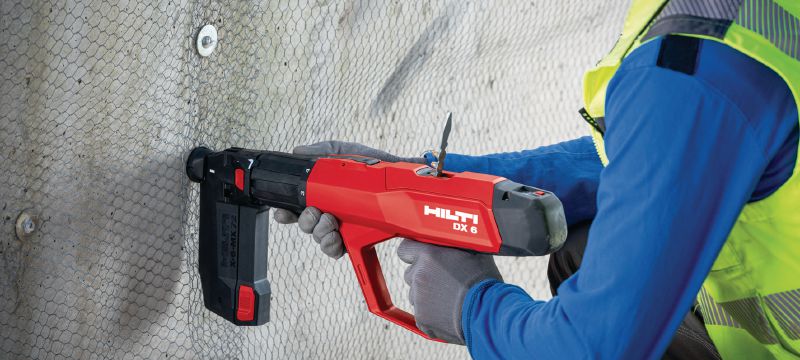

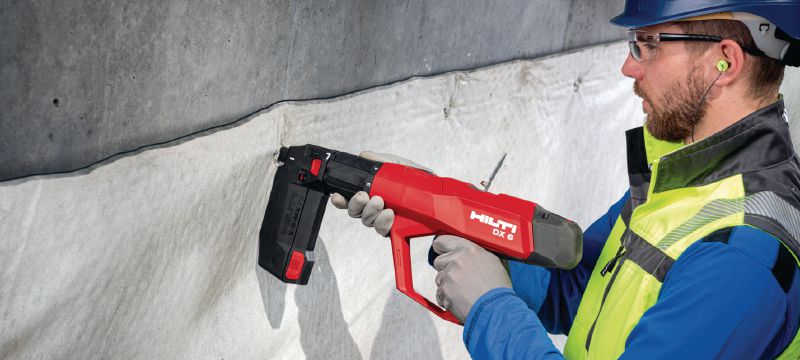

DX 5, DX 6

Product class

Premium

Documents

Features & Applications

Features

Galvanised nails for fastenings on concrete or steel
Higher application limits, higher ultimate tensile loads
Available in lengths up to 72 mm
Knurled point for increased performance on high-strength steel and hard concrete
Strips of 10 collated nails – for extremely high productivity and easier fastener loading

Applications

Fastening to concrete or steel
Fastening drywall track to concrete
Fastening wall ties
Fastening wood to concrete
Setting up formwork and safety barriers

For approval or certificate information, please see individual items.
