S-MS 01 Z Self-drilling sheet metal screws

Self-drill screw S-MS01Z 4,8x20 #385448

Configurator
Technical Data
Documents
Features & Applications
Related Products
L021402.tif
L022809_cropped (193669)

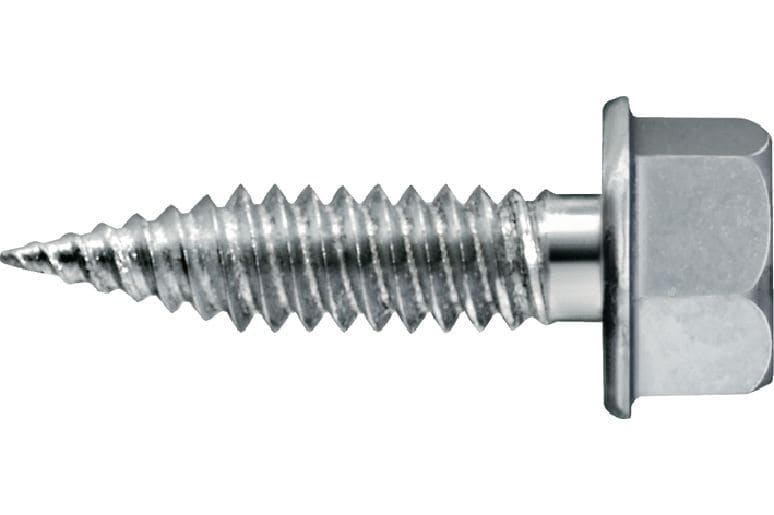

Self-drilling screw without washer for quickly connecting overlapping metal sheets

  • Screw drive/recess type: Hexagon 8
  • Base materials: Carbon steel
  • Environmental conditions: Dry indoor
premium

Choose options

Thickness fastened range MF
  • 1.2 - 2.5 mm
Length
  • 20 mm
Pack size
  • 1000 pc
 Product options
Quantity
Packs
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 2,620.00
ZAR 2.62 / 1 Piece

Technical Data

Screw drive/recess type
Hexagon 8
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
4.8 mm
Length
20 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none

Documents

Approval document
Certificate
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, German [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]

Features & Applications

Features

  • Material around the screw is simply displaced – helps to prevent corrosion of the sheet due to rusting metal chips
  • High load values
  • Can be collated for use with the SDT stand-up handle – for even greater speed and efficiency
  • Fast and efficient self-drilling sheet metal screws
  • Virtually no skidding when starting at an angle or on wet surfaces

Applications

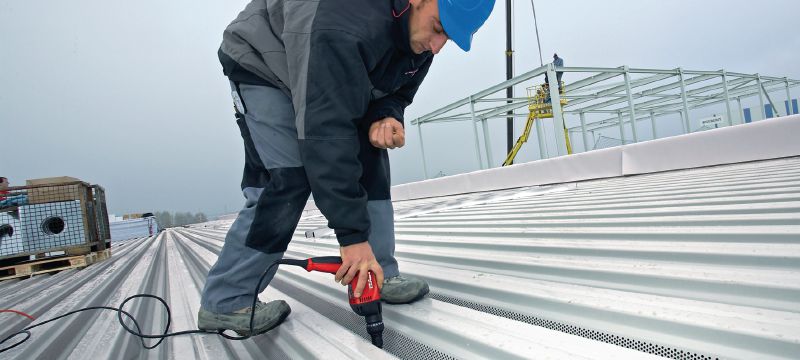

  • Fastening overlapping metal sheets on insulated roofs
  • Fastening liner trays and web joint brackets
  • Fastening wall cassette longitudinal overlaps
  • Fastening joints between trapezoidal profile sheets
  • Fastening thin metal sheets (up to 2x 1.25 mm)
