S-MD 05GZ Self-drilling metal screws

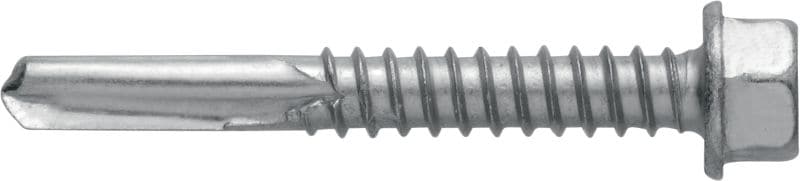

Self-drill screw S-MD 05Z 5,5x65 #2054485
Self-drilling screw (zinc-plated carbon steel) without washer for thick metal-to-metal fastenings (up to 15 mm)
- Screw drive/recess type: Hexagon 8
- Base materials: Carbon steel
- Environmental conditions: Dry indoor
premium
Customers also searched for Tek, hex head screw, hexagon, metal screw or self drilling screw.
Choose options
Thickness fastened range MF
- 4.6 - 43 mm
Length
- 65 mm
Pack size
- 100 pc
Quantity
Packs
Total Piece
100
EX. VAT
ZAR 861.00
ZAR 8.62 / 1 Piece
Technical Data
Screw drive/recess type
Hexagon 8
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
5.5 mm
Length
65 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
- For reliable fastenings with defined load values
- Attractive final appearance – screw head can be coloured to match the façade
- Galvanised carbon steel
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Galvanised carbon steel for fastening in dry, indoor environments
- Thick metal-to-metal connections (up to 15 mm)
