S-CD 53C Sandwich panel screws

Configurator
Technical Data
Documents
Features & Applications
Related Products
r5430,r585637

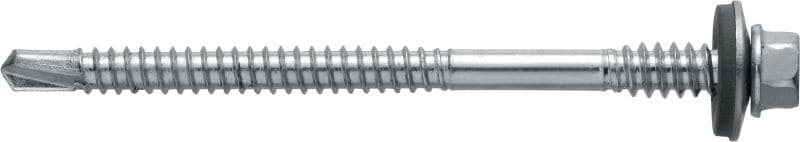

Sandwich panel screw (duplex coated carbon steel) with 16 mm washer and supporting thread for thin steel base structures (up to 6 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel
premium

Choose options

Thickness fastened range MF
  • 38 - 48 mm
  • 48 - 58 mm
Length
  • 76 mm
  • 86 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 1,068.00

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution
Screw diameter d
5.5 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM

Documents

Reference document
Approval document
Technical information
Operating Instruction
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • EPDM rubber washer – creates a more reliable seal against water
  • Fast and robust drill tip for use on high-strength steel (up to grade S 450 GD) with Racing Tip technology – a wave-form cutting edge which removes chips much faster and help prevents point burn-out
  • Supporting thread helps to fasten without dents
  • For reliable fastenings with defined load values

Applications

  • Fastening sandwich panels to steel framing
  • Duplex-coated carbon steel for fastening in slightly corrosive environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • For applications requiring watertight fastenings with 16 mm washer
  • Fastening sandwich panels to purlins

For approval or certificate information, please see individual items.
