S-BT MR Threaded Stud

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-BT-MR M8/7 SN 6 (84706)
S-BT-MF (85510)
S-BT-MF (85509)
S-BT-MF (85513)
S-BT-MF (85497)
S-BT-MF (85504)

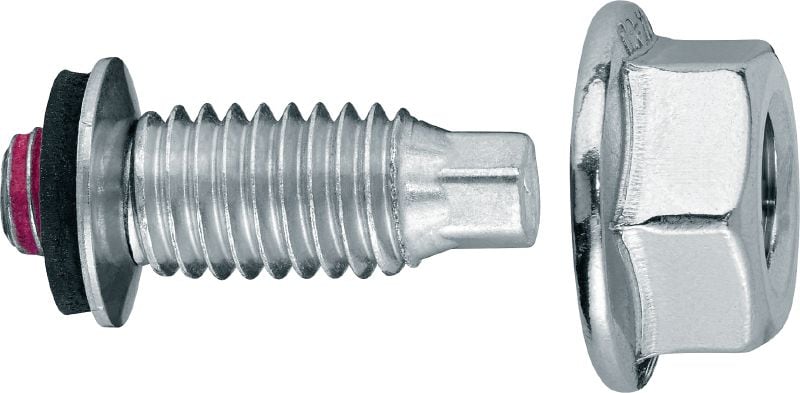

Threaded screw-in stud (stainless steel, metric or Whitworth thread) for multi-purpose fastenings on steel in highly corrosive environments

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Stainless steel A4(316) or equivalent
ultimate

Customers also searched for Stainless steel studs, Stainless stud, Threaded stud, Stainless threaded stud or Studs for stainless steel.

Choose options

Thread size
  • M8
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 17,494.00

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Marine, offshore, petrochemical, power plants, etc.
Material
Duplex stainless steel (1.4462)
Approvals
ABS, BV, DNV, ETA, ICC-ES, LR, RMR
Product class
Ultimate

Documents

Approval document
Technical information
Reference document
Operating Instruction
pdf ETA-20/0530_S-BT_2020.09.18_en, German, English [ 3.3 MB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf BV Type Approval 45116/B0_BV for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R_(NG), X-FCM-M-(NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 535 KB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]

Features & Applications

Features

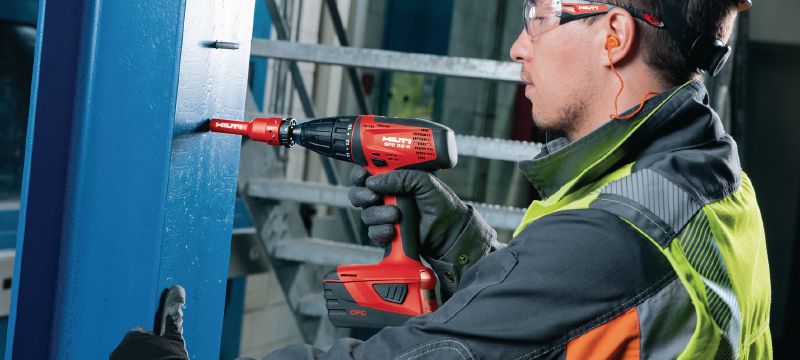

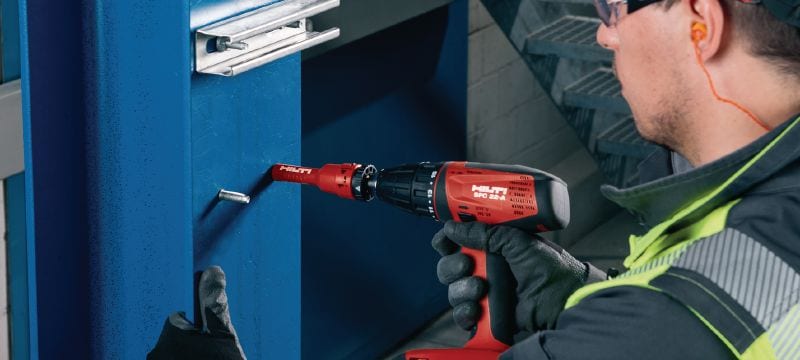

  • The S-BT MR is easier and more reliable to use – requires no electric supply cords or heavy equipment for installation
  • Suitable for use in highly corrosive environments (C4 and C5) on coated steel
  • Easy installation in tight spaces
  • No rework necessary on coated steel
  • High corrosion resistance – suitable for most marine, offshore, petrochemical and power plant applications

Applications

  • Fastening into steel with a thickness of 6 mm or greater in highly corrosive environments

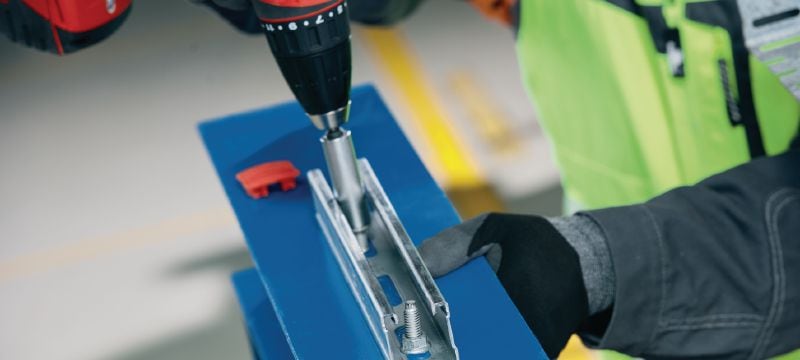

  • Fastening cable ladders using channels or hold-down/expansion guide clips

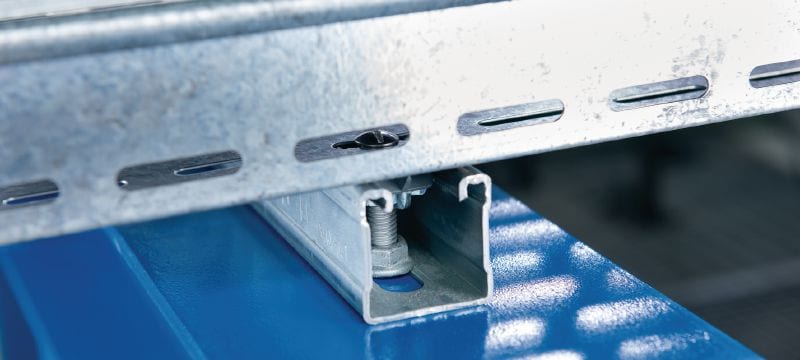

  • Fastening cable trays and cable runs using channels or conduit clips

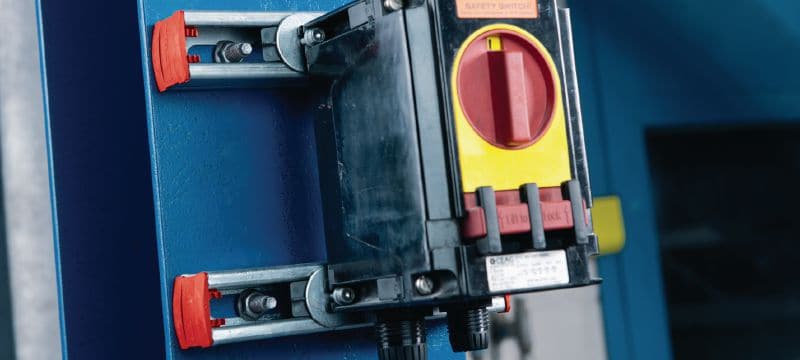

  • Fastening junction boxes, switchgear and instrumentation panels directly or using channels
  • Fastening lighting fixtures, signage etc.

For approval or certificate information, please see individual items.
