X-BT-GR Stainless steel threaded studs

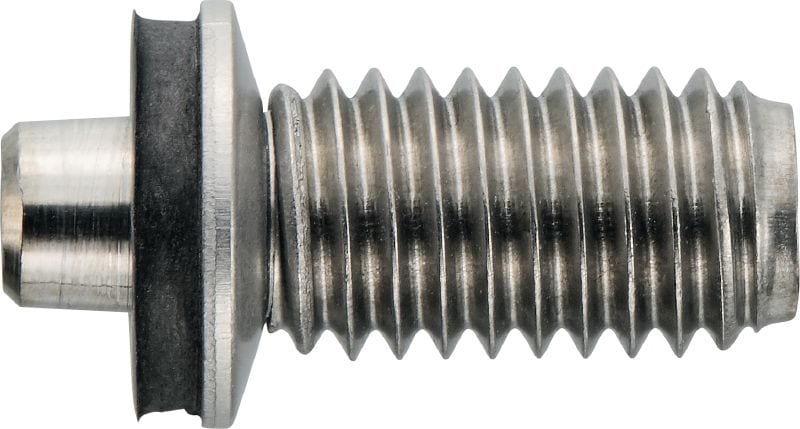

Threaded stud X-BT-GR M8/7 SN 8 #2194344

Configurator
Technical Data
Documents
Features & Applications
Related Products
L113879_cropped (196432)

Threaded stud for fastening grating and checker plate to steel

  • Base materials: Steel
  • Minimum thickness of base material (steel): 8 mm
  • Corrosion protection: Corrosion protection equivalent to A4(316)
ultimate

Customers also searched for Threaded stud, x-bt stud, grating stud or steel fastening stud.

Choose options

Thread size
  • M8
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 39,031.00
ZAR 390.31 / 1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Corrosion protection equivalent to A4(316)
Environmental conditions
Outdoor, areas with heavy industrial pollution
Material
Duplex stainless steel (1.4462)
Thread diameter
8 mm
Length
21 mm
Point type
Blunt tip
Approvals
ABS, BV, DNV, LR, UL
Product class
Ultimate

Documents

Approval document
Technical information
Reference document
Documentation
Certificate
Operating Instruction
pdf ETA-20/1042 for X-BT-MR and X-BT-GR, German, English [ 8.8 MB ]
pdf LR Type Approval LR2435310TA-02 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners in marine, offshore and industrial application, English [ 868.3 KB ]
pdf DNV Approval TAS00001SV-5 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners, English [ 435.1 KB ]
pdf ABS Type Approval 23-00T2426560-1-PDA for X-BT-GR. X-BT-MR, X-BT-ER fastening system in off-shore and shipbuilding application, English [ 114.9 KB ]
pdf BV approval 54054-B1 for X-BT-GR, X-BT-MR and X-BT-ER fastening system, English [ 1.1 MB ]

Features & Applications

Features

  • No rework necessary on coated steel – corrosion protection remains intact
  • Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
  • Portable, cordless system – eliminates the need for long electric supply cords
  • Fast – ideal for fastening directly to coated or treated steel
  • Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.

Applications

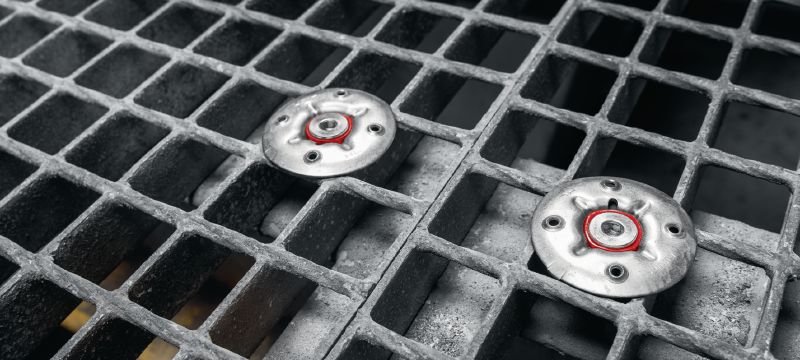

  • Fastening gratings to steel structures using X-FCM-M or X-FCM-R grating discs and X-FCS grating elements
  • Fastening cable trays, channels, strut, light-duty electrical installation (T-bars, instrumentation panels, junction boxes), fitting out and much more
  • Fastening threaded rod to steel
  • Fastening to fire-coated (PFP) beams
  • Fastening checker plate with X-FCP-R grating discs
