Electrical connector S-BT-EF HC Threaded Stud

Elec. connector S-BT-EF M10 HC 120 #2204932

Configurator
Technical Data
Documents
Features & Applications
Related Products
L113740 cropped (196106)
L113742 cropped (196121)
L113744 cropped (196118)
L113753 cropped (196117)
L113770 cropped (196233)
L113827 cropped (196234)
L113828 cropped (196235)
L113832 cropped (196236)

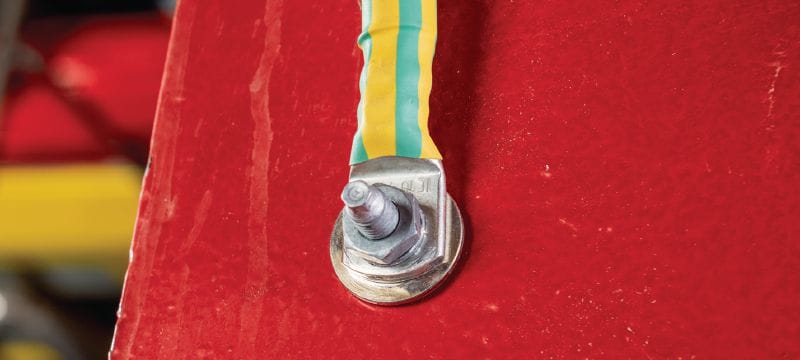

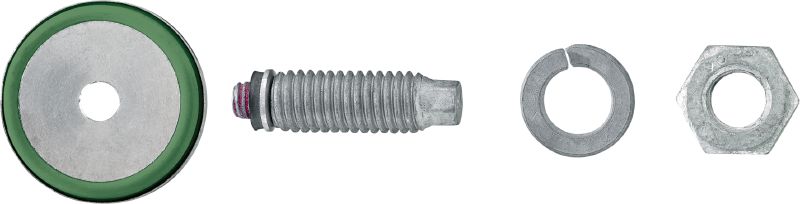

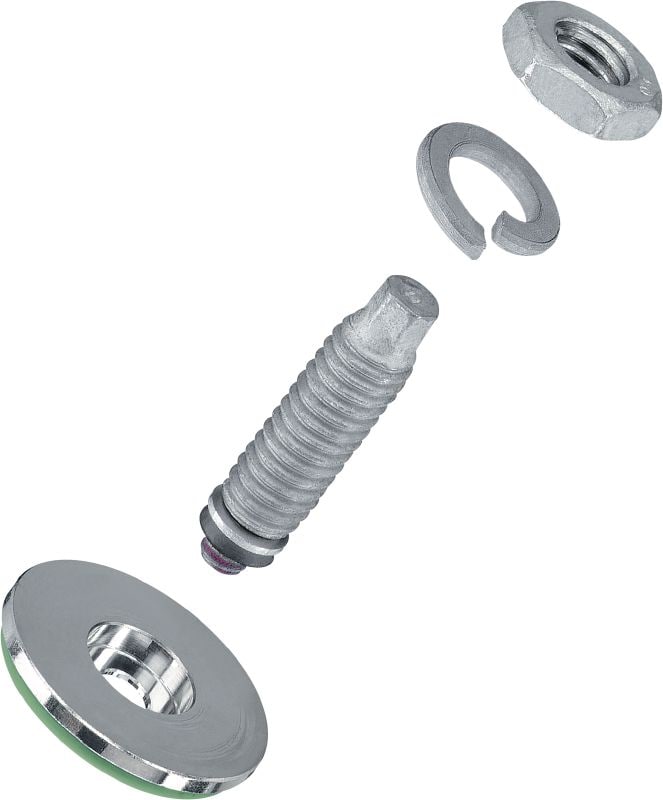

Threaded screw-in stud (carbon steel, metric thread) for electrical connections on steel in mildly corrosive environments. Recommended maximal cross section of connected cable: 120 mm²

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Duplex coating equivalent to 45 µm hot-dip galvanized
ultimate

Choose options

Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 38,767.00
ZAR 387.67 / 1 Piece

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Duplex coating equivalent to 45 µm hot-dip galvanized
Environmental conditions
Indoors or mildly corrosive environment
Material
Carbon steel
Approvals
BV, DNV, UL
Product class
Ultimate

Documents

Approval document
Technical information
Operating Instruction
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf BV Type Approval 45116/B0_BV for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R_(NG), X-FCM-M-(NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 535 KB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]

Features & Applications

Features

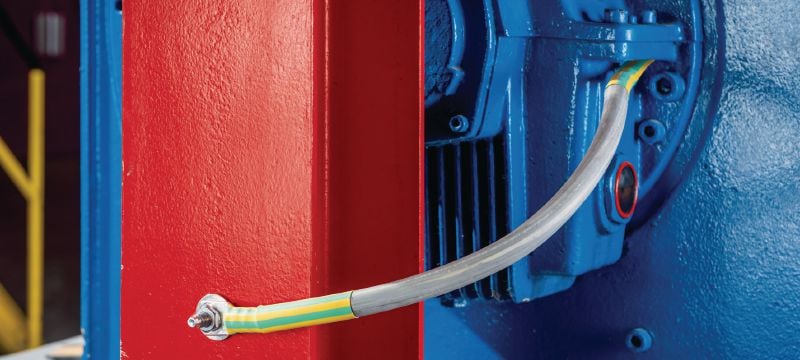

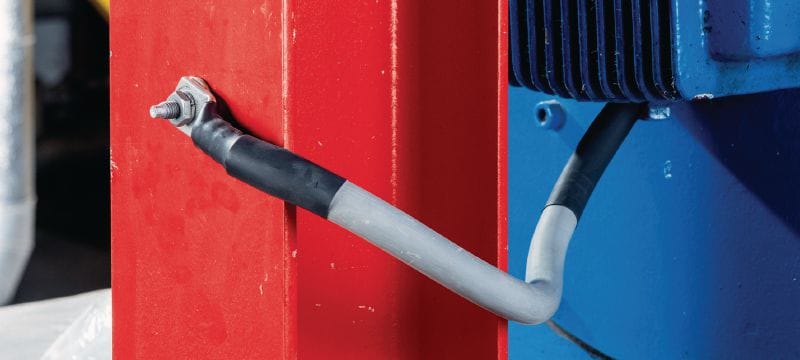

  • Ideal for equipotential bonding
  • Enhanced protection against static electricity
  • Enhanced safety – allows electrical current to flow through the conductivity disc and then discharges it properly into the base material
  • Suitable for use on most standard steel structures
  • Suitable for use in mildly corrosive environments (C3)

Applications

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection

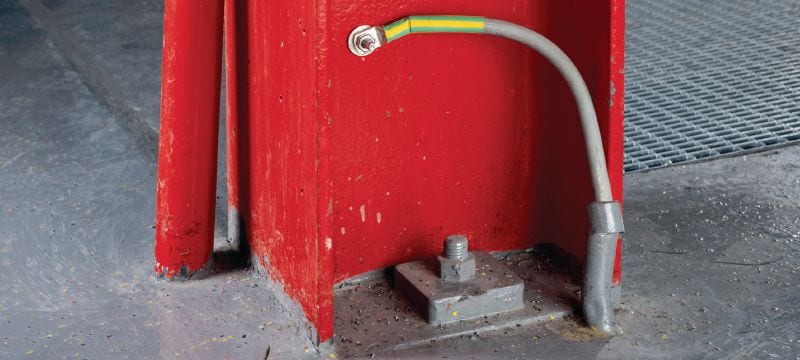

  • Bonding and earthing/grounding
