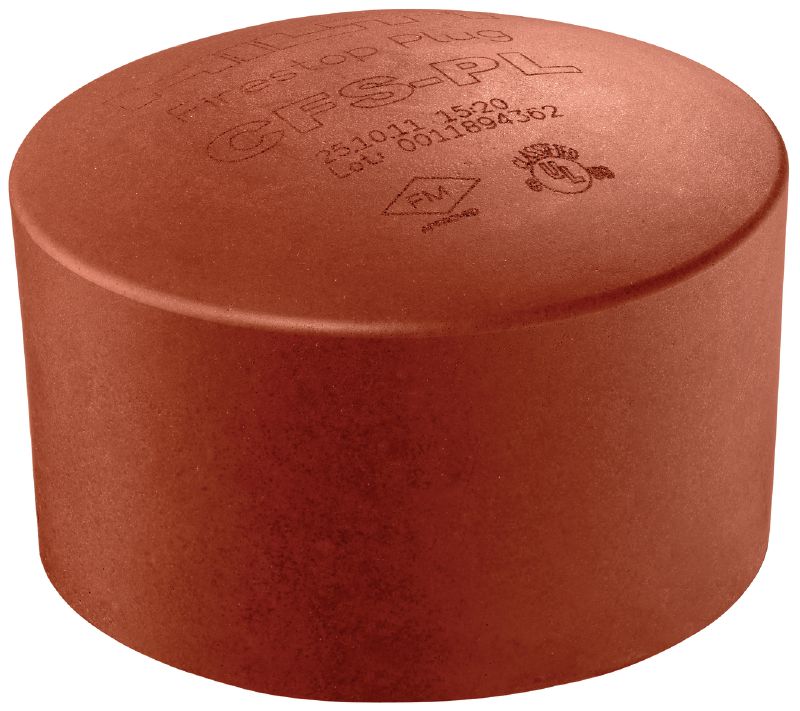

CFS-PL Firestop plug
Reusable intumescent firestop solution for permanent or temporary cable openings in walls and floors
- Base materials: Concrete, Masonry, Drywall
- LEED VOC: 4.9 g/l
- Application temperature range: 5 - 40 °C
ultimate
Choose options
Outside diameter
- 107 mm
- 132 mm
- 158 mm
- 202 mm
Pack size
- 1 pc
- 2 pc
- 4 pc
Quantity
Packs
Total Pieces
1
EX. VAT
From ZAR 1,329.34
Technical Data
Base materials
Concrete, Masonry, Drywall
LEED VOC
4.9 g/l
Application temperature range
5 - 40 °C
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate
Documents
Features & Applications
Features
- Simplifies maintenance and retrofitting of cables – no power tools required
- Economical solution – sealant-free, ready-to-use and reusable
- One-sided wall installation possible

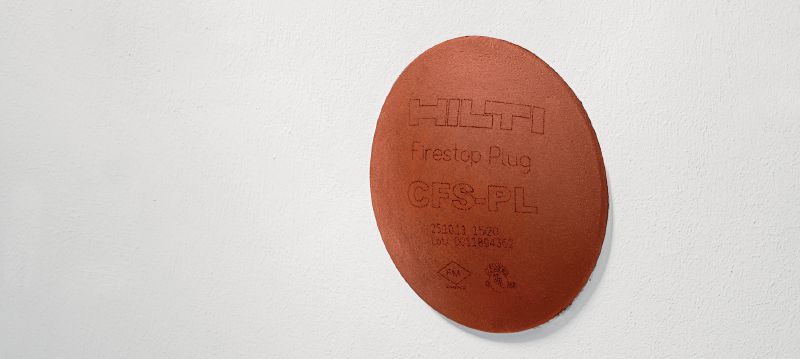

- Ideal for the temporary closing of empty core holes
- Acoustically tested according to ISO 140 and ASTM E90
Applications

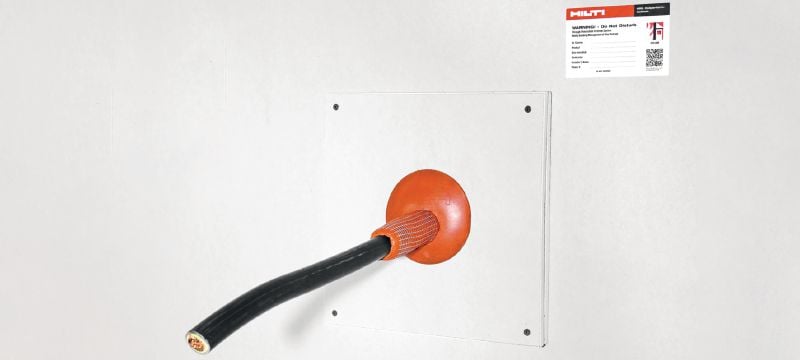

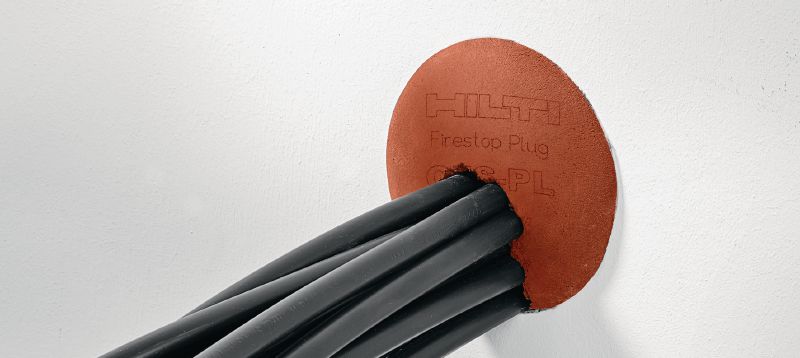

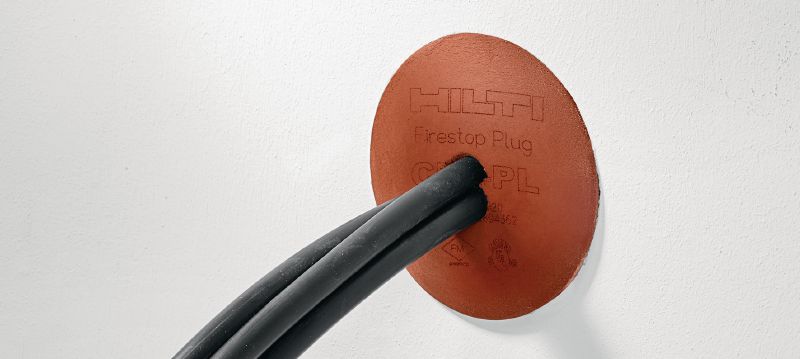

- Temporary or permanent sealing around cables and cable bundles in wall and floor openings
- Cables and cable bundles
- Conduits and conduit bundles
- Suitable for use with PVC sleeves in concrete cast-in applications
- Rooms with virtually dust- and fibre-free requirements and areas that often change services, such as server rooms, laboratories and hospitals
For approval or certificate information, please see individual items.
