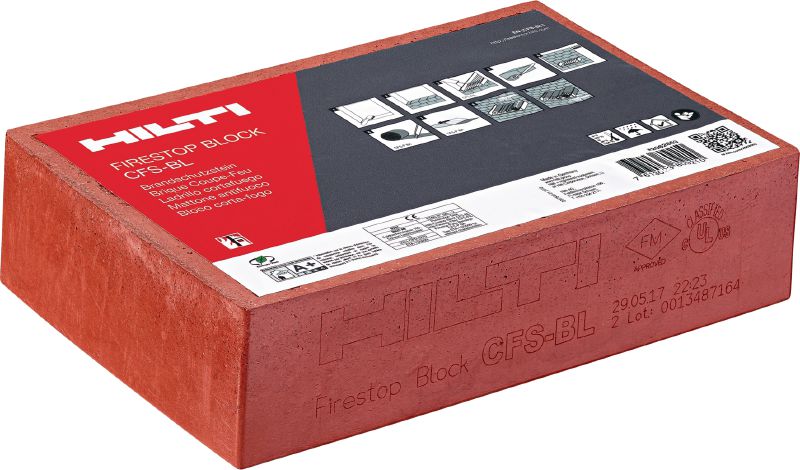

Preformed firestop blocks for sealing penetrations with cables

  • Dimensions (LxWxH): 200 x 130 x 50 mm
  • Base materials: Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
  • LEED VOC: 5.4 g/l
ultimate

Technical Data

Dimensions (LxWxH)
200 x 130 x 50 mm
Base materials
Concrete, Masonry, Gypsum board, Sandwich Panel, Multi
LEED VOC
5.4 g/l
Application temperature range
5 - 40 °C
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate

Documents

Features & Applications

Features

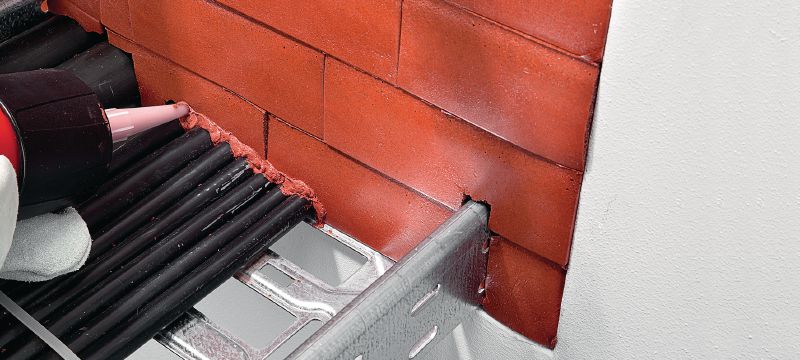

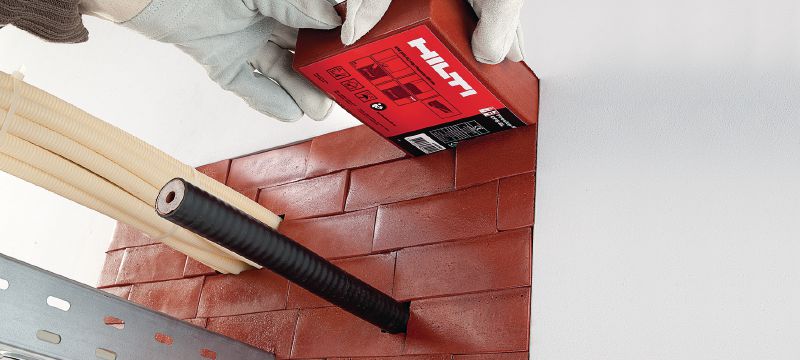

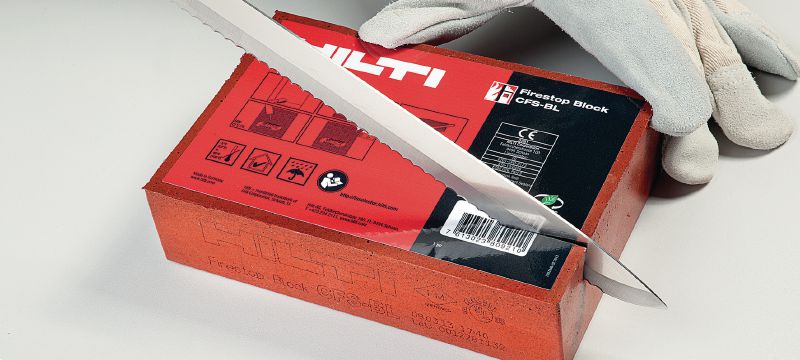

  • Easy to install – no power tools required

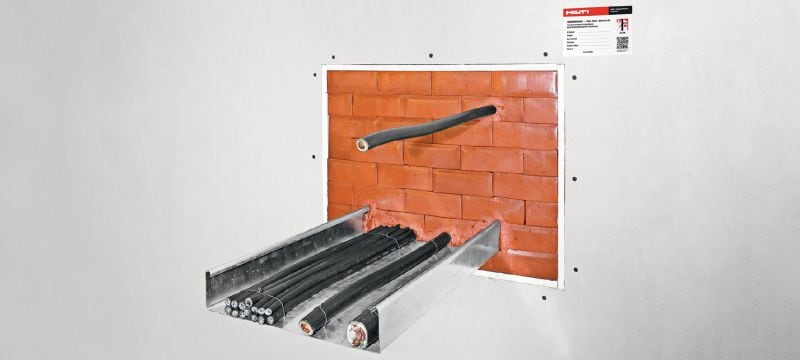

  • Easy maintenance and possible retrofitting of cables
  • Economical installation – firestop blocks arrive pre-cured and ready-to-use
  • Fibre-, halogen- and solvent-free
  • Virtually dust-free (depending on the installation method)

Applications

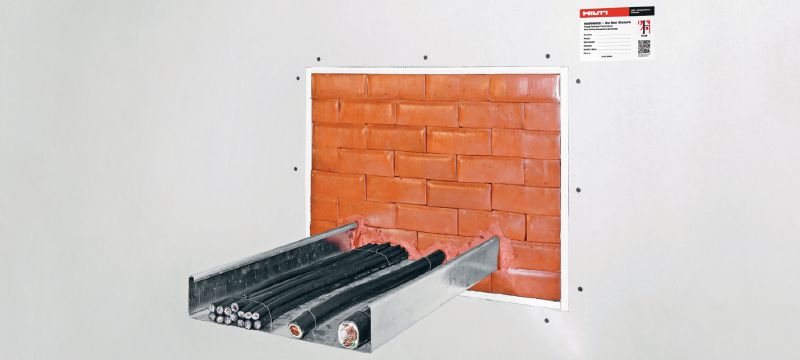

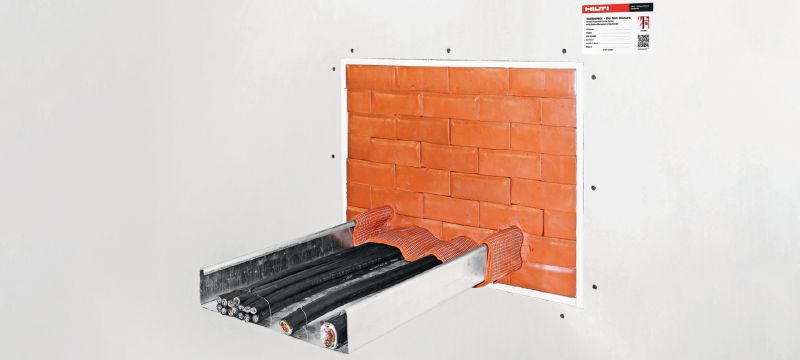

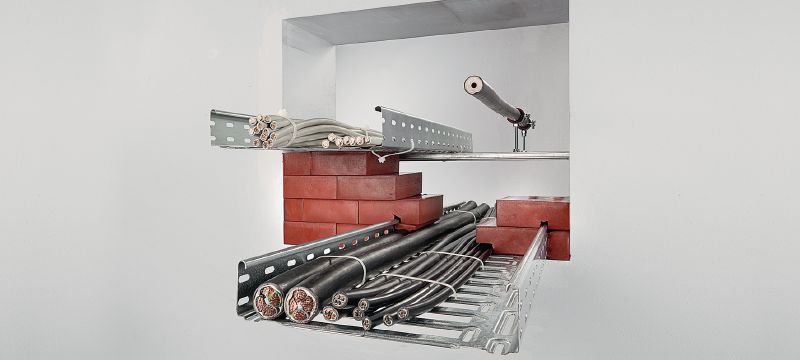

  • Temporary or permanent passive fire sealing around cables, cable bundles and cable trays in wall and floor openings
  • Firestopping penetrations for cables, cable bundles and cable trays
  • Firestopping penetrations for conduits and conduit bundles
  • Firestopping penetrations for co-axial cables
  • Optimal for rooms with dust- and fibre-free requirements and areas with frequent retrofitting, such as server rooms, laboratories and hospitals

For approval or certificate information, please see individual items.
