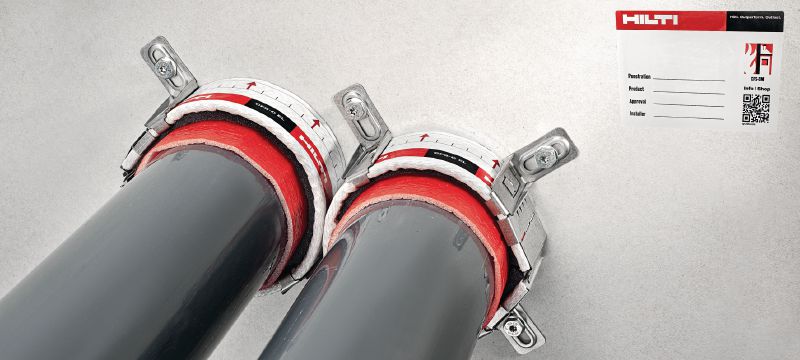

Solution to help create a fire and smoke barrier around pipes in non-standard configurations

  • Base materials: Drywall, Concrete (aerated), Concrete, Masonry, Shaftwall, Wood
  • LEED VOC: 11 g/l
  • Expansion ratio (unrestricted, up to): 1:19
ultimate

Customers also searched for fire seal pipe collarpipe collarfire rated pipe openingsintumescant pipe seal or fire seal.

Technical Data

Base materials
Drywall, Concrete (aerated), Concrete, Masonry, Shaftwall, Wood
LEED VOC
11 g/l
Expansion ratio (unrestricted, up to)
1:19
Expansion temperature (approx.)
210 °C
Product class
Ultimate
Application temperature range
-5 - 50 °C

Documents

Features & Applications

Features

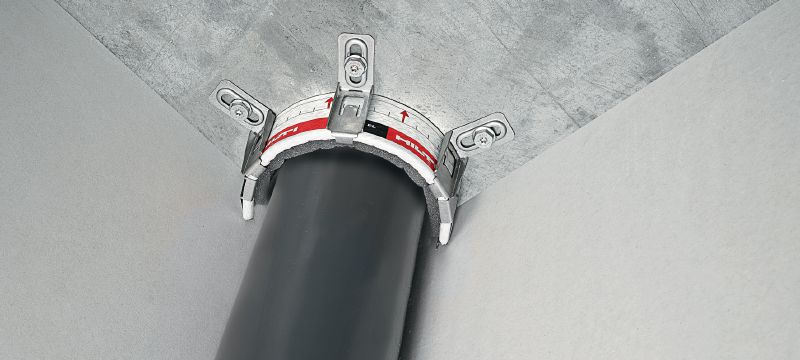

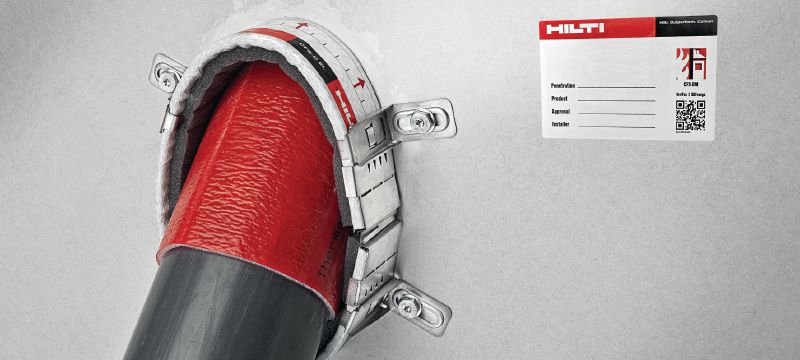

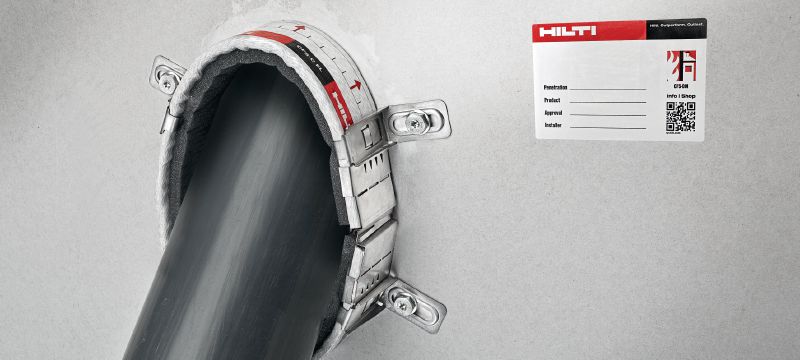

  • Problem-solver for non-standard pipe configurations – including pipe elbows, inclined pipes and pipes with limited clearance to the wall

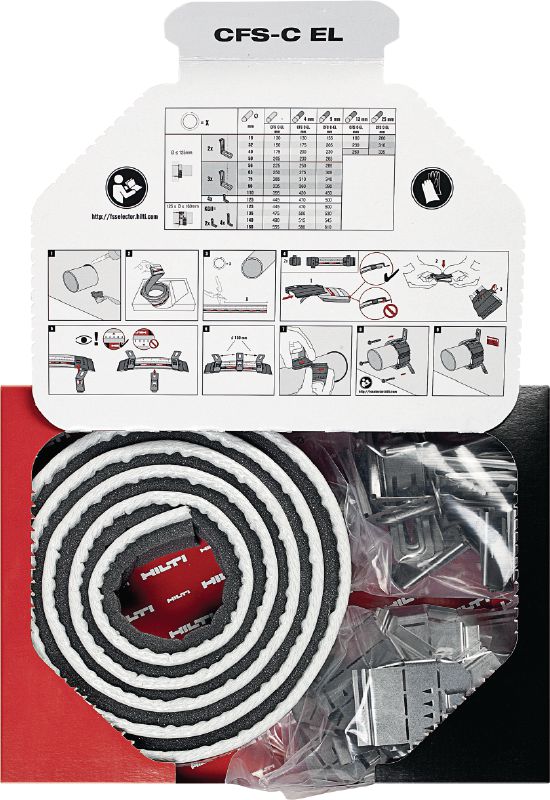

  • Space-saver – zero distance to CFS-C EL firestop endless collar, Conlit and CFS-B firestop bandage

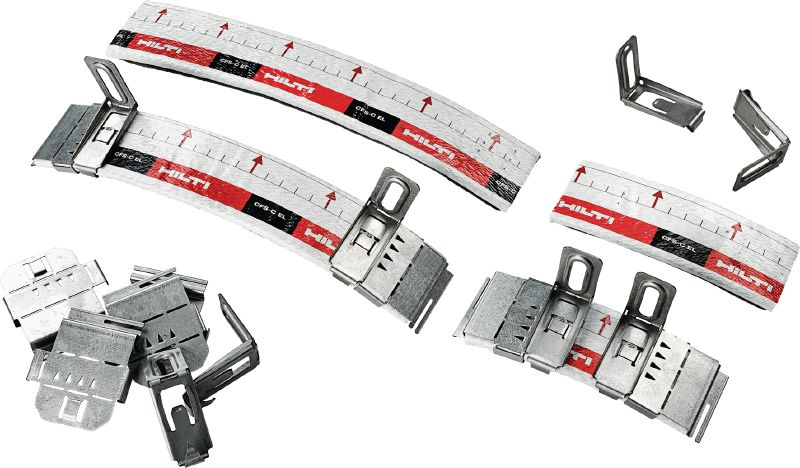

  • Endless solution – one product for most penetrant sizes
  • Installed outside of the base material – can be visually inspected easily
  • Well-suited to complex pipe configurations

Applications

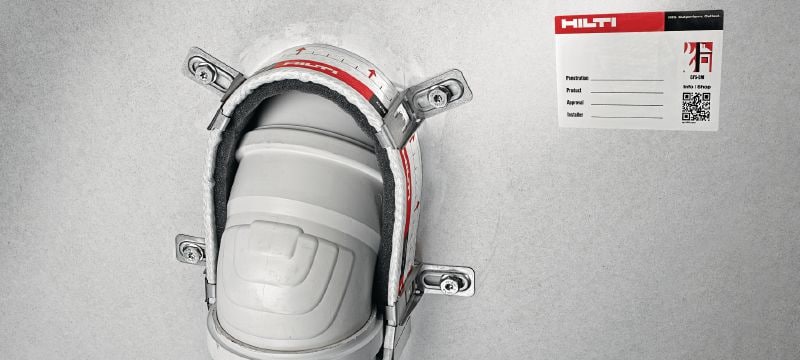

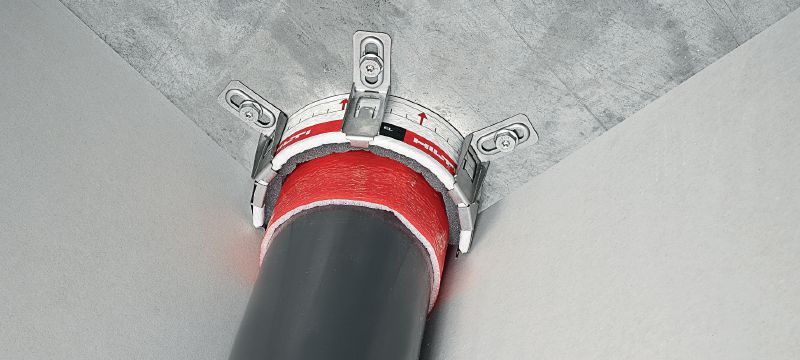

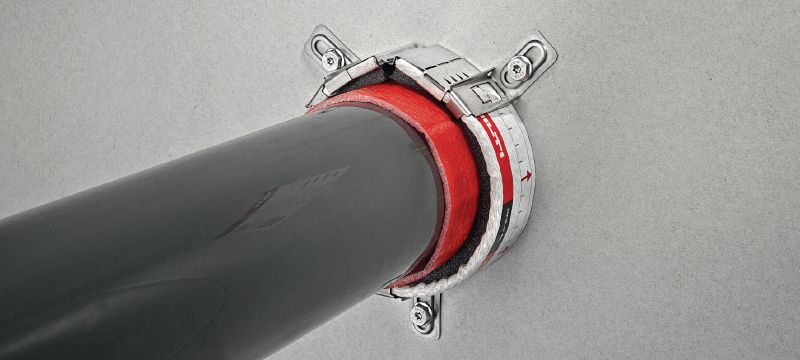

  • Configurations tested include pipe elbows, inclined pipes and pipes with limited clearance to the wall

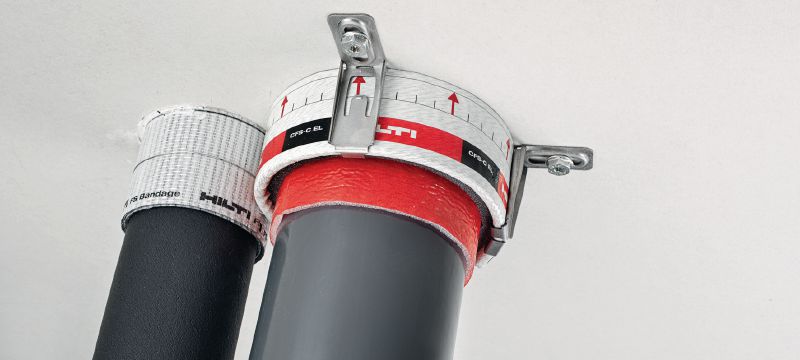

  • Zero distance required to CFS-B firestop bandage, CFS-C EL firestop endless collar and Conlit
  • Suitable for use on shaft walls, coated board, plasterboard, aerated concrete, masonry and concrete
  • Approved for use with PVC, PP, PE and a wide array of standard acoustic pipes.

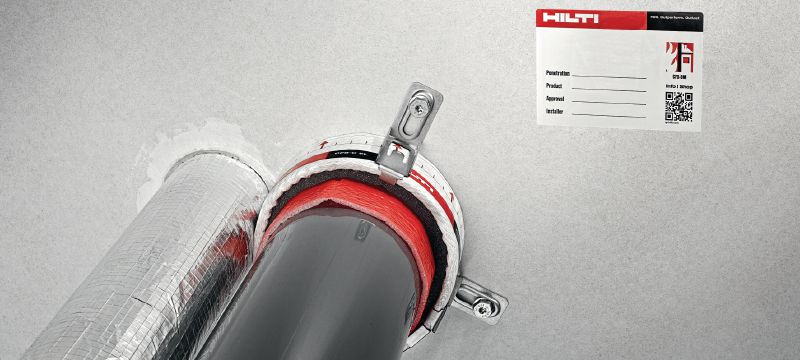

  • Acoustic pipes tested with insulation and sound decoupling

For approval or certificate information, please see individual items.
