CFS-CC Firestop cable collar

Firestop cable collar CFS-CC #2079667

Configurator
Technical Data
Documents
Features & Applications
Related Products
Firestop Cable Collar CFS-CC 4”
Firestop Cable Collar CFS-CC 4”
L064972.tiff
6046.tif
L064973.tiff
CFS-CC (75075)

Solution for renovation of sealed cable penetrations with 100% fill

  • Base materials: Concrete, Aerated Concrete, Drywall, Masonry, Wood
  • LEED VOC: 5.4 g/l
  • Diameter: 150 mm
ultimate

Choose options

Outside diameter
  • 150 mm
Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 2,158.14
ZAR 1,079.07 / 1 Piece

Technical Data

Base materials
Concrete, Aerated Concrete, Drywall, Masonry, Wood
LEED VOC
5.4 g/l
Diameter
150 mm
Application temperature range
5 - 40 °C
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate

Documents

Technical information
Approval document local
Sustainability Documentation
Instruction for use
pdf Technical Manual for ETA-13/0704 CFS-CC firestop cable collar for penetrations, English [ 2.3 MB ]

Features & Applications

Features

  • Suitable for new or existing single and bundled cables in floors and walls
  • Re-penetrable to allow future increases in cable capacity
  • Suitable for openings of max. 4" or 108 mm in diameter (sleeved or un-sleeved)
  • Simple and clean – sealant-free, no backfilling material required and low VOCs

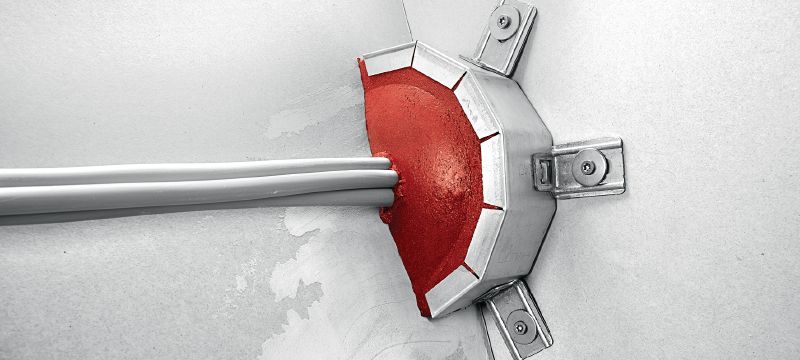

  • Problem solver – suitable for bending cables, cables close to the wall/floor and edge applications (half collar)

Applications

  • Single and bundled cables in floors and walls
  • New and existing cable installations
  • Membrane penetrations
  • Certain coaxial cables, conduit and conduit bundles, split-type air conditioner applications and smoke guide pipes
  • Bending cables and cables close to the wall/floor
