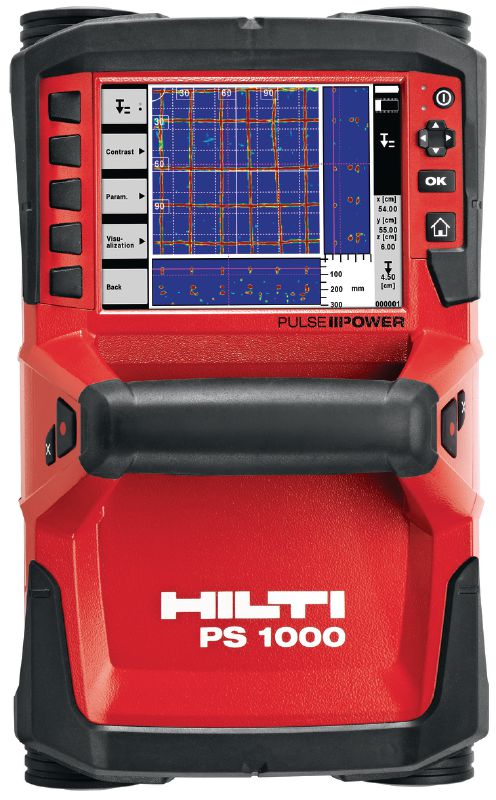

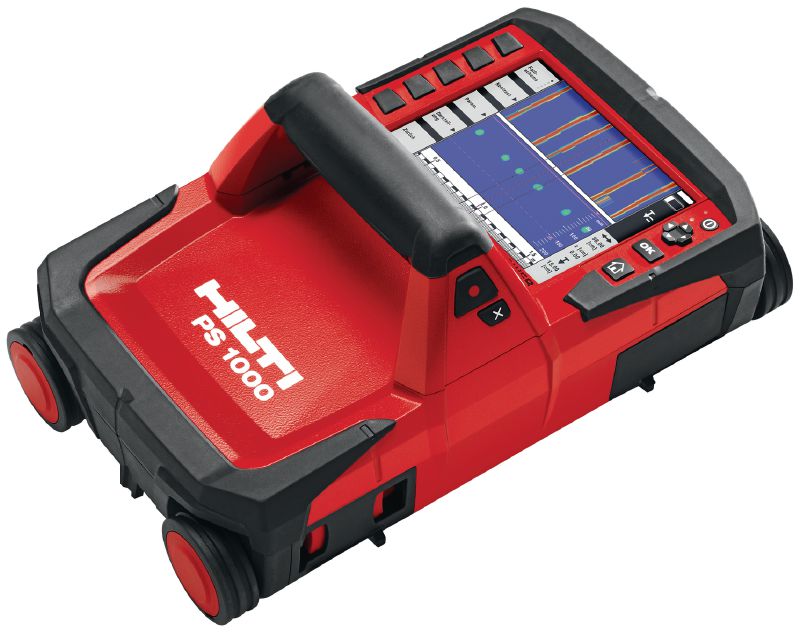

PS 1000 X-Scan Concrete scanner

X-Scan system PS 1000 trolley #2223494

Configurator
Technical Data
Documents
Features & Applications
Related Products
L113042 (195253)
X-Scan, Radar, Scanner, Concrete Scanning, PS 1000, PS 1000-B
L049812_V1.tif
X-Scan, Radar, Scanner, Concrete Scanning, PS 1000, PS 1000-B
PS 1000 X Scan jobsite
52272.tif
52274.tif
54224.tif
52275.tif
L134165 cropped (196264)

Efficient concrete scanner for structural analysis and to locate embedded objects in multiple layers

  • Localisation accuracy: ±10 mm
  • Minimum distance between two neighbouring objects: 40 mm
  • Operating temperature range: -10 - 50 °C

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 289,832.87
ZAR 289,832.87 / 1 Piece

Technical Data

Localisation accuracy
±10 mm 1
Minimum distance between two neighbouring objects
40 mm
Operating temperature range
-10 - 50 °C
Data memory (scanner)
200 scans
Maximum operating time
4 h
Weight with batteries
3 kg
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet LI-ION-BATTERIES <100Wh - BU M (EN) [ 178.2 KB ]

Features & Applications

Features

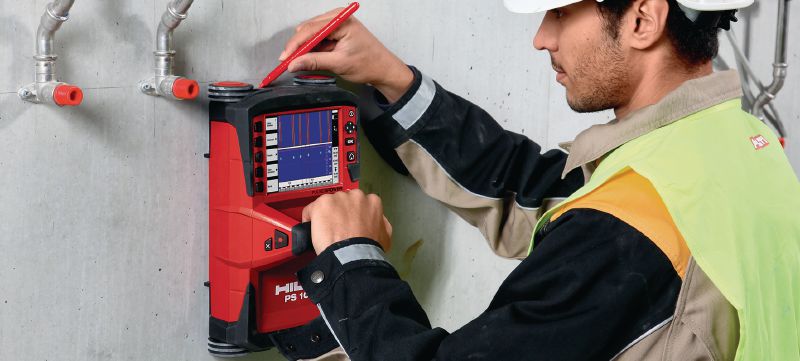

  • Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation
  • Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan
  • Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification
  • Compact all-in-one design offers easy operation, plus unmatched data visualisation means hundreds of square metres of concrete can be inspected in a day
  • Powerful monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation

Applications

  • Locating rebars, tendons, metal and plastic conduits, glass-fibre cables, voids and wood in dry concrete structures at depths of up to 300 mm
  • Minimising hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work
  • Rebar extension (post-installed rebar connections) in structural applications

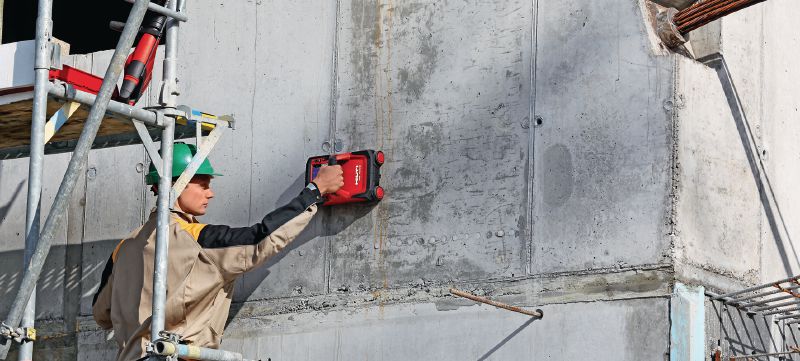

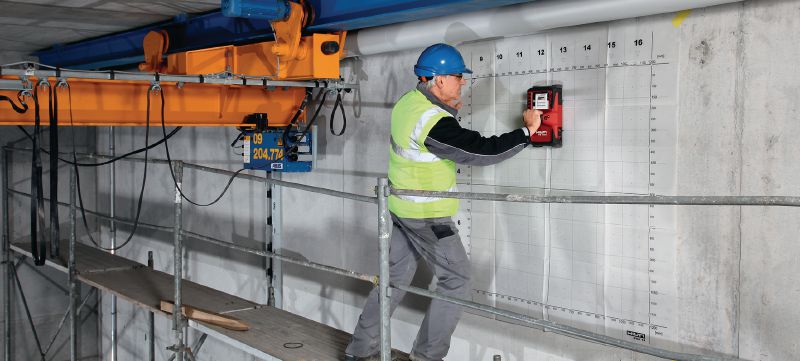

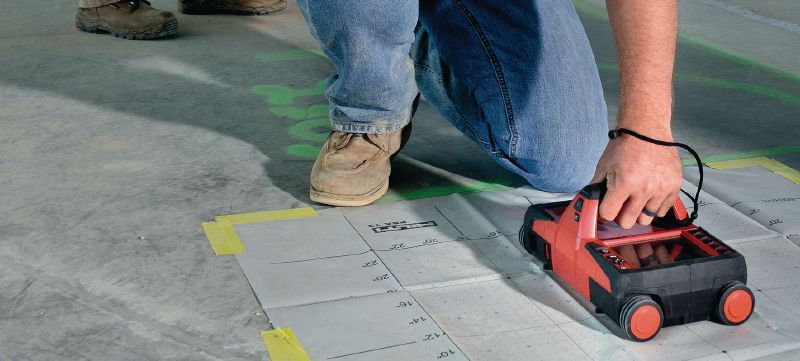

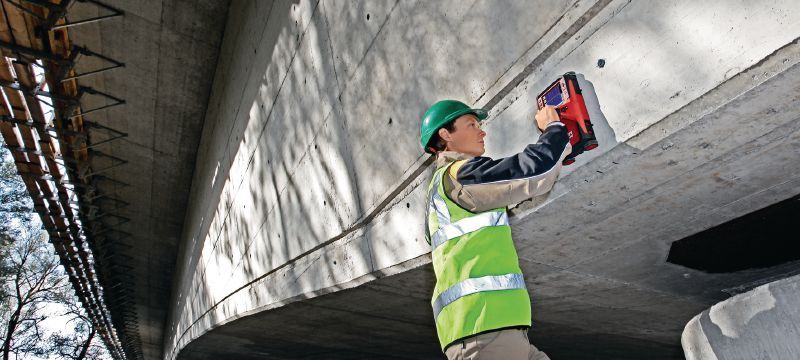

  • Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings
  • Detection of voids and cavities
