MT-50 C-Channel profile

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003277_v1 (217085)
LCG003472_v1_cropped (224125)
08_IS_MT-50_0001 (218617)

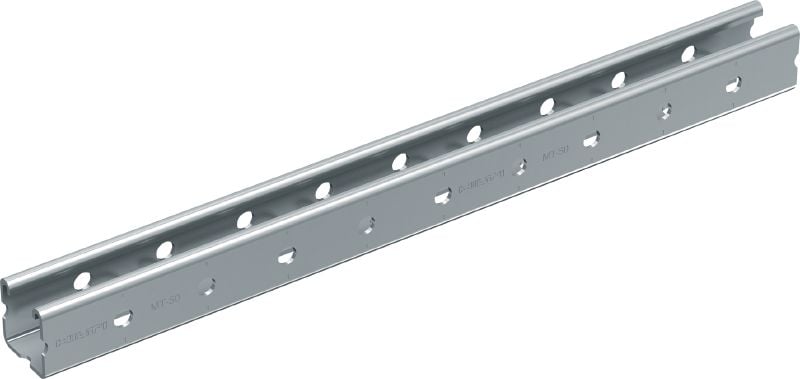

medium-duty C-Channel profile for use with MT-FL/MT-TL components in indoor environments

  • Material composition: S280 or better steel
  • Surface finish: Indoor Coated - Pre-galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Customers also searched for MT, channel, strut or strut channel.

Choose options

Pack size
  • 3 m
  • 6 m
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 5,643.42

Technical Data

Details
Technical illustrations
Material composition
S280 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Documentation
Approval document
Certificate
Sustainability Documentation
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to instal – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Floor-mounted MEP support structures, such as goal post-type strut framing

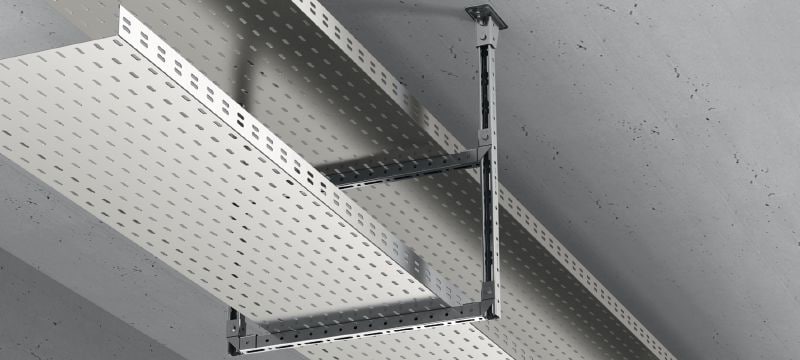

  • Ceiling-mounted MEP support structures, such as suspended strut trapeze frames
  • Wall-mounted cantilever brackets for smaller pipes, ducts and cables
  • Modular 3D framing to support pipes, ducts and cable trays
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
