MT-40 U C-Channel profile

Channel MT-40 U #2362806

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003847_v1 (2942552)
LCG003848_v1 (2942538)

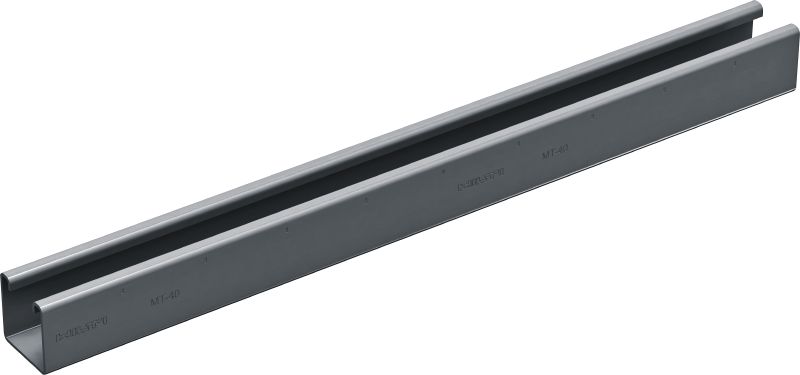

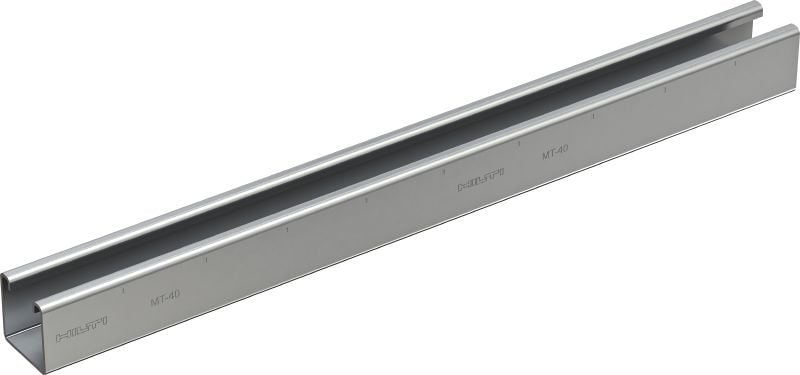

medium-duty unslotted C-Channel profile for use with MT-FL/MT-TL components in indoor environments

  • Material composition: S280GD
  • Surface finish: Galvanized
  • Material thickness: 2 mm

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 4,169.64
ZAR 694.94 / 1 m

Technical Data

Material composition
S280GD
Surface finish
Galvanized
Material thickness
2 mm
Weight
2.24 kg
Environmental conditions
Indoor

Documents

pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Airtight strut channels – ideal for building modular frames in data centres, especially hot/cold aisle containment
  • Simpler to instal – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Floor-mounted MEP support structures in data centres, such as hot/cold aisle containment
  • Suitable for use in dry, indoor environments
