MP-SRNI Light-duty pipe clamp

Pipe ring MP-SRNI 34 M8 stnls #374189

Configurator
Technical Data
Documents
Features & Applications
Related Products
14657.tif
18065.tif
60290_S18.eps

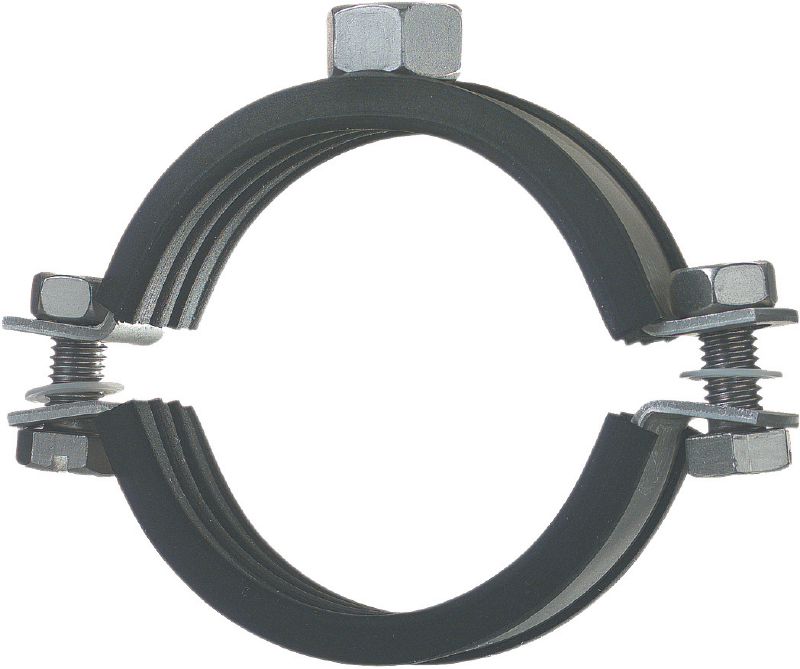

Stainless steel (A4) pipe clamp with sound insulation for light-duty applications

  • Clamping range - D: 33 - 37 mm
  • Nominal pipe size (imperial): 1 in
  • Thread connection - M: M8
premium

Customers also searched for A4 stainless steel pipe clamp;, stainless steel pipe clamp,, light-duty pipe clamp; or insulated pipe clamp.

Choose options

Clamping range - D
  • 33 - 37 mm
Thread connection - M
  • M8
Nominal pipe size (imperial)
  • 1 in
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 4,769.75
ZAR 190.79 / 1 Piece

Technical Data

Details
Technical illustrations
Clamping range - D
33 - 37 mm
Nominal pipe size (imperial)
1 in
Thread connection - M
M8
Maximum load - F
1300 N
Approvals
Fire class B2
Noise reduction
15 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Clamping screw
M8
Tightening torque
2 Nm
Cross section thickness - s
2 mm
Cross section width - b
17.5 mm
Width - B
76 mm
Product class
Premium
Distance centre pipe to top - h
30 mm

Documents

Documentation
Approval document
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Higher resistance to corrosion (A4 stainless steel)
  • Short connection head allows installation close to a wall, floor or ceiling
  • Pipe ring with verified fire resistance as per DIN 4102, part 2
  • Closure screw secured to help prevent loss
  • Non-slip (bonded), pre-fitted rubber inlay

Applications

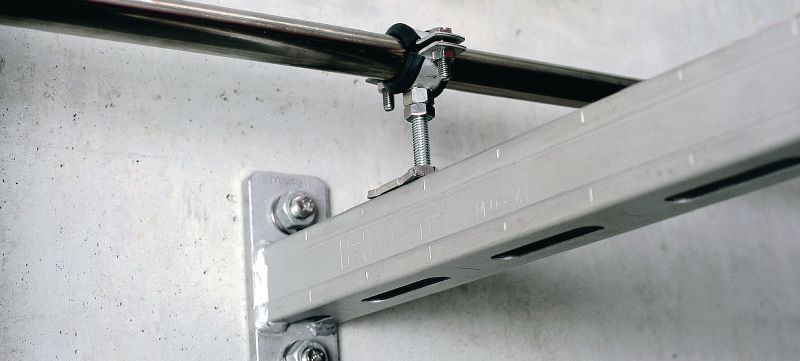

  • Light-duty pipe installations up to 2" (or 64mm)
  • Heating, plumbing and industry applications in corrosive environments
  • Mounting pipes in food industry (except production) and in water treatment
  • Water treatment
  • For fastening pipes up to 2" in corrosive environments
