LH Sprinkler loop hanger
Sprinkler pipe hanger LH 4" M10 #388620
Galvanised sprinkler loop hanger with FM and UL approvals for fire sprinkler applications
- Clamping range - D: 106 - 114 mm
- Nominal pipe size (imperial): 4 in
- Thread connection - M: M10
Customers also searched for Installing sprinklers, hanging pipes sprinkler systems, pipe hangers, pipe clamps or installation channel.
Choose options
Clamping range - D
- 70 - 76 mm
- 83 - 89 mm
- 106 - 114 mm
- 165 - 168 mm
Thread connection - M
- M10
- M12
Nominal pipe size (imperial)
- 2-1/2 in
- 3 in
- 4 in
- 6 in
Pack size
- 25 pc
- 50 pc
- 100 pc
Quantity
Packs
Total Piece
50
EX. VAT
ZAR 4,854.00
ZAR 97.08 / 1 Piece
Technical Data
Clamping range - D
106 - 114 mm
Nominal pipe size (imperial)
4 in
Thread connection - M
M10
Maximum load - F
4500 N
Approvals
UL approved EX15279, FM approved
Material composition
Carbon steel type B - ASTM A653M-06a, SGCC - JISG 3302
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Cross section thickness - s
2 mm
Cross section width - b
19 mm
Distance centre pipe to top - h
131 mm
Documents
Features & Applications
Features
- Easy pipe installation thanks to two-component sprinkler loop hangers
- Part of an extensive range of sprinkler pipe fastening solutions for virtually any fire sprinkler installation
- Helps to save labour by making installation quicker and easier
- Height adjuster nut to simplify leveling
Applications

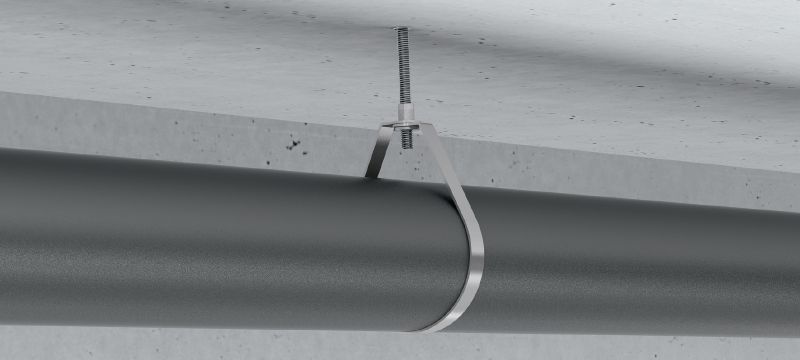

- single-point fastening for fire sprinkler applications
- Recommended for use in dry, interior environments
