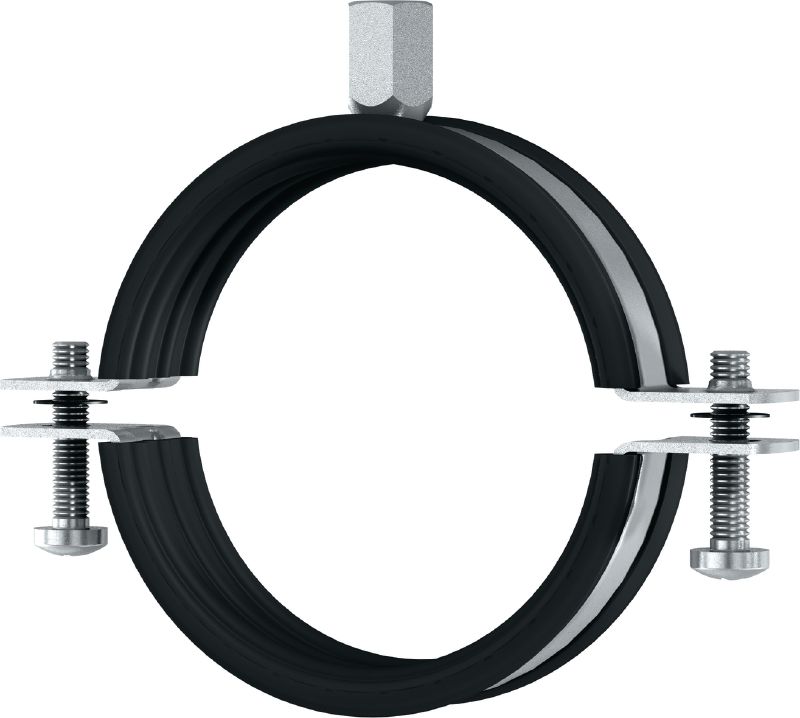

Galvanised pipe clamp with sound insulation for economical light/medium-duty applications

  • Approvals: Acustic insulaton DIN 4109 inspected, Fire Class E
  • Noise reduction: 16 dB (A)
  • Temperature resistance: -40 - 110 °C

Customers also searched for pipe clampspipe ringspipe supportsinstalling pipes or plumbing.

Technical Data

Approvals
Acustic insulaton DIN 4109 inspected, Fire Class E
Noise reduction
16 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
SPCC-SD FB - Q/BQB402, DC01 – EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM
Hardness insulation material
75° ±5° Shore A
Additional product information
The maximum load of 5000 N in accordance with RAL-GZ 655-B can be achieved if pipe rings 8 inches in diameter and larger are mounted on two threaded rods

Documents

Features & Applications

Features

  • Two-screw pipe ring to simplify pipe installation
  • Short connection head allows installation close to a wall, floor or ceiling
  • Clamping ranges suitable for all standard plastic and steel pipes
  • High quality recognised by third-party approvals
  • Securely fixed rubber inlay – virtually impossible to drop or lose

Applications

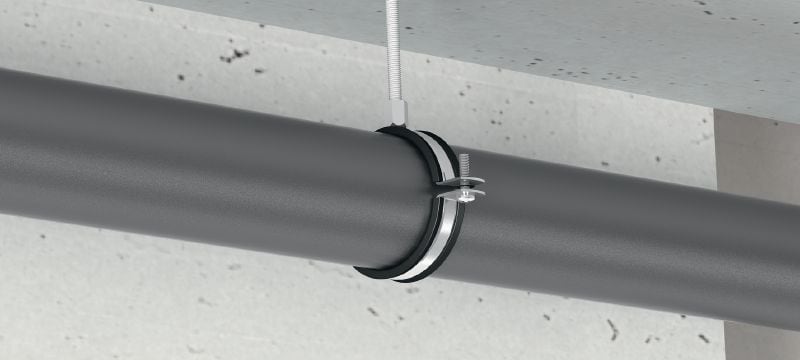

  • Light to medium-duty pipe installations
  • Fastening pipes in residential and industrial construction
  • Fastening fresh water, waste water and heating pipes in residential and industrial construction
  • Recommended for use in dry, interior environments
  • Pipe rings for use in dry interiors only

For approval or certificate information, please see individual items.
