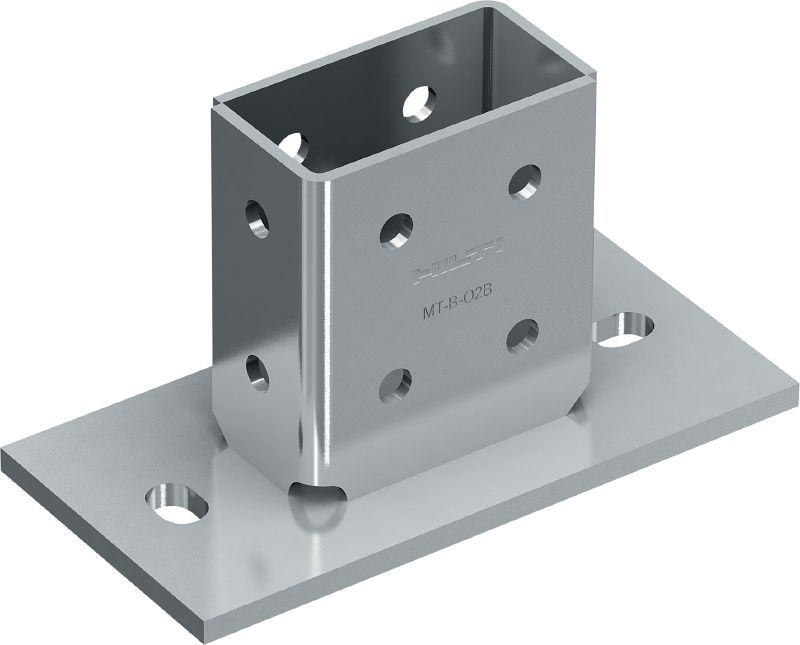

MT-B-O2B 3D-load baseplate

LCG003357_v1 (218287)
04_IS_MT-B-O2B_0001 (218665)

Base connector for anchoring strut channel structures under 3D loading to concrete or steel

  • Material composition: Q235 or better steel
  • Surface finish: Indoor Coated - Pre-galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Pack size
  • 6 pc
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 3,795.66
ZAR 632.61
/
1 Piece

Technical Data

Material composition
Q235 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures to a base material when resistance to 3D stresses is required
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
