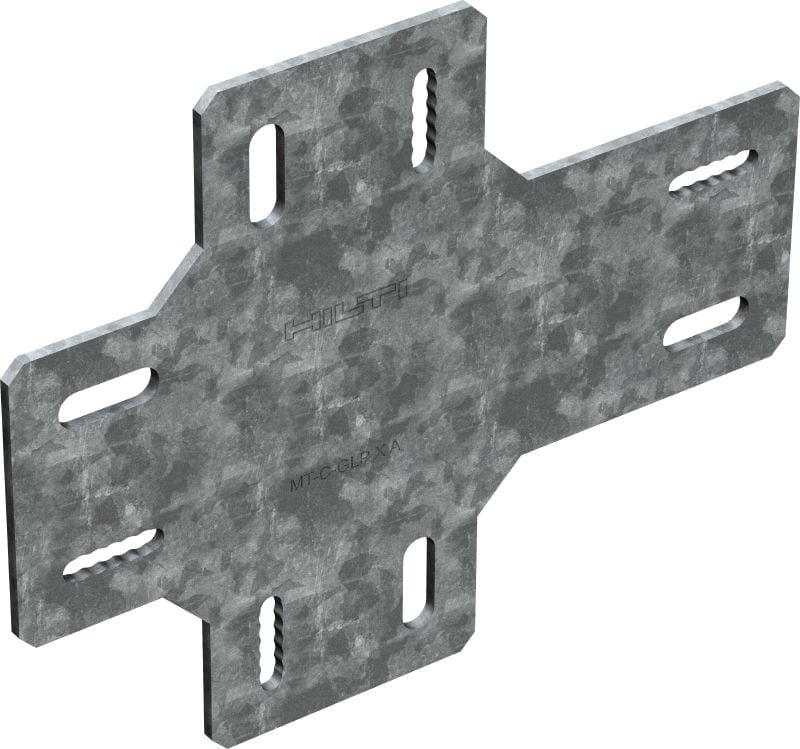

MT-C-GLP X A OC Connector plate

Connector MT-C-GLP X A OC #2332783

Hot-dip galvanised connector plate for cantilever connections with MT-80 MT-100 girders in moderately corrosive environments

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Choose options

Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
Price loading error occured

Please contact us

Technical Data

IS_MT-C-GLP X A_0001 (2192634)
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Weight
1.02 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Increased load resistance for cantilevered girders
  • Adjustable – elongated holes allow 5 mm (1/4") adjustability
  • Compatible with MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Right-angle connections between MT-80 girders (including cantilevers)
  • Suitable for use in moderately corrosive environments
