X-MW ALH L Wire hanger system

Configurator
Technical Data
Documents
Features & Applications
Related Products
L125957 (226826)
L125960 (226823)
L125961 (226828)
L144760 (2206195)
L144764 (2206249)
L144788 (2206496)
L144800 (2206643)
L144801 (2206652)
L144804 (2206688)
L144814 (2206397)

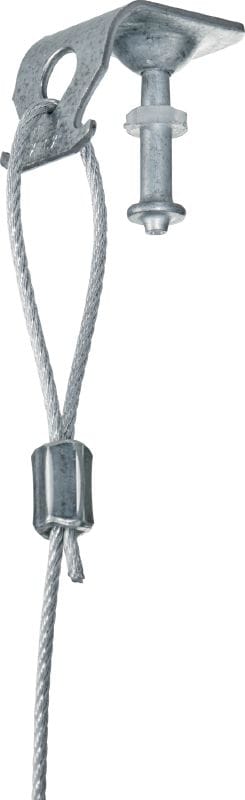

Wire hanger system for spiral HVAC ducting and lighting applications, installed using powder-actuated fastening tools

  • Material: Carbon steel
  • For use with (tools): DX 351, DX 460, DX 5, DX 6
  • Base materials: Concrete (tough), Concrete (soft), Concrete (pre-cast), Concrete (normal-weight over metal deck), Steel
ultimate

Customers also searched for Wire, hanger, air duct support, light support or hanging wire.

Choose options

Pack size
  • 20 pc
  • 30 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 5,097.00

Technical Data

Material
Carbon steel
For use with (tools)
DX 351, DX 460, DX 5, DX 6
Base materials
Concrete (tough), Concrete (soft), Concrete (pre-cast), Concrete (normal-weight over metal deck), Steel
Corrosion protection
Zinc-coated
Environmental conditions
Dry indoor
For use with (tools) (global)
DX 351, DX 460, DX 5, DX 6
Product class
Ultimate

Documents

Technical information
Approval document
Certificate
Operating Instruction
pdf X-MW, X-MW ALH Data Sheet, English [ 1.8 MB ]

Features & Applications

Features

  • Shorter installation time – wire rope suspensions are a faster alternative to threaded rod
  • Easier to adjust – self-closing wire lock can be adjusted tool-free, making leveling, retrofitting and long drop lengths much simpler
  • Aesthetics – wire rope suspension is a discreet installation method for exposed building services and open soffits

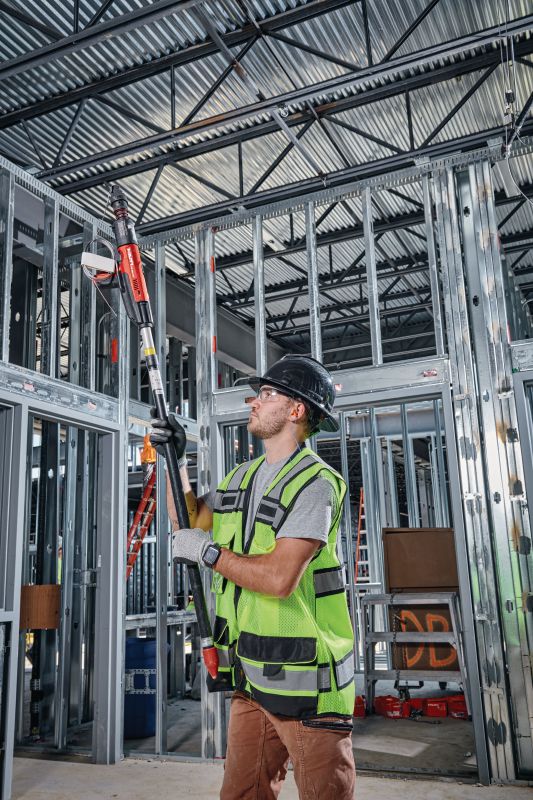

  • Can be fastened while standing on the floor using the DX pole tool – safer method of installation avoiding lifts and ladders

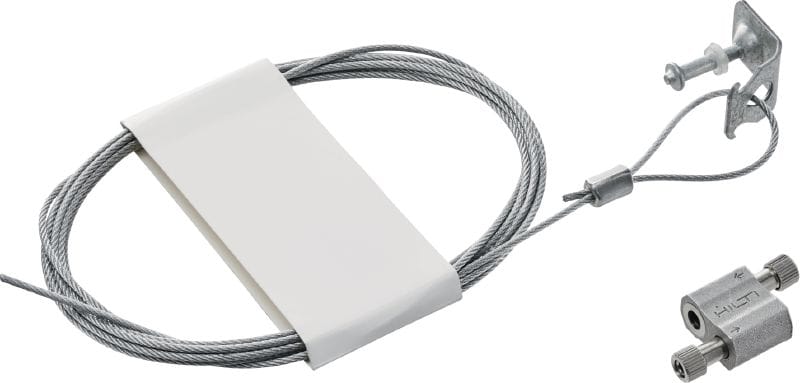

  • All you need in one sales box (lock, pre-cut wires and nail clip)

Applications

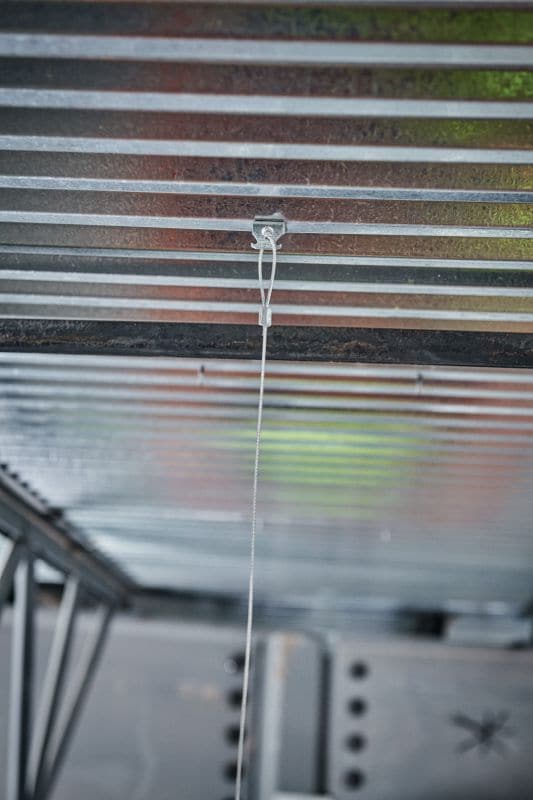

  • Suspending spiral HVAC duct from concrete

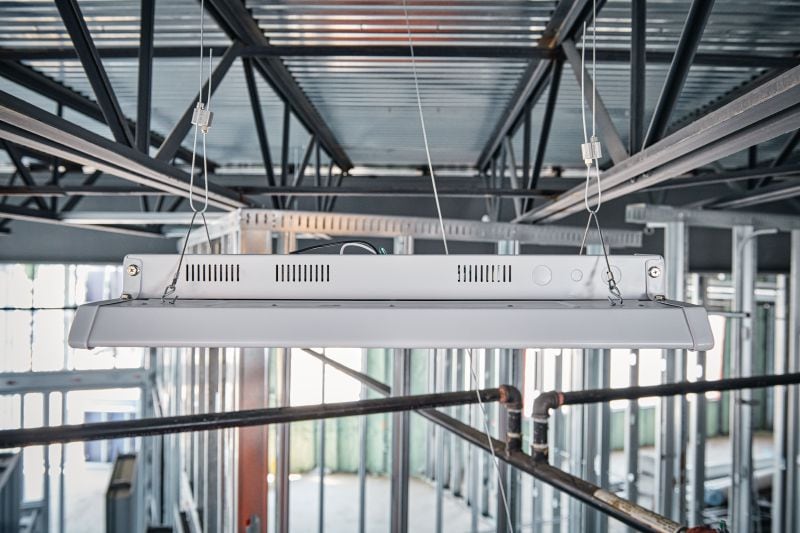

  • Suspending electrical lighting from the ceiling
  • Suspending security attachments (secondary attachment point to work if first attachment point fails)
  • Up to 100 lbs (45kg) allowable load values
  • Suitable for use in dry, indoor environments only

For approval or certificate information, please see individual items.
