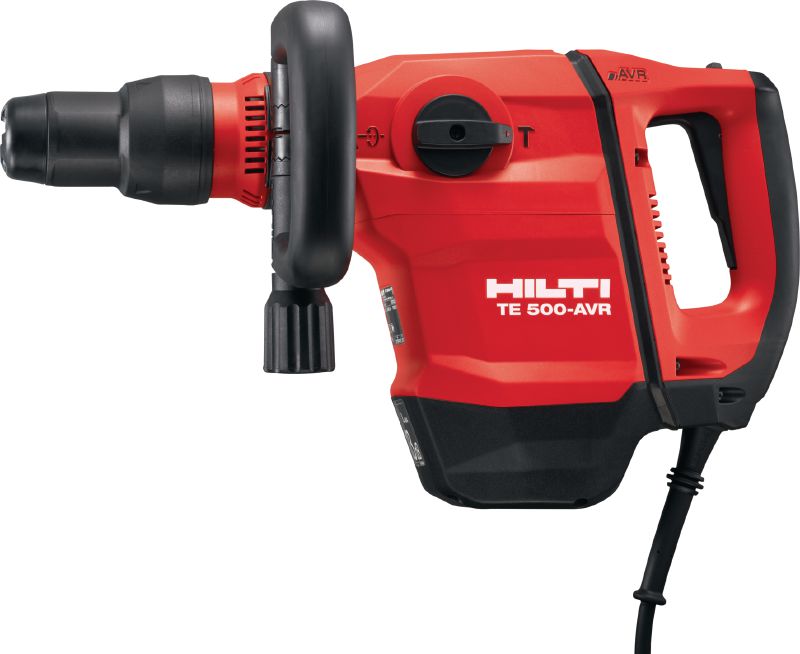

TE 500-AVR SDS-Max chipping hammer

Breaker TE 500-AVR 230V #2146855

Configurator
Technical Data
Documents
Features & Applications
Related Products
L601737 (4390518)
L104297 (184530)
L108977_cropped (187930)
L108991_cropped (187933)
L109020_cropped (187947)

Versatile SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry, with Active Vibration Reduction (AVR)

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS-max)
  • Weight according EPTA Procedure 01/2003 without battery: 6.3 kg

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 30,191.53
ZAR 30,191.53 / 1 Piece

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS-max)
Weight according EPTA Procedure 01/2003 without battery
6.3 kg
Single impact energy
8.5 J
Full hammering frequency
3510 impacts/minute
Max. chiselling performance
1000 cm³/min
Dimensions (LxWxH)
467 x 118 x 265 mm
Triaxial vibration for chiselling in concrete
8.2 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
96 dB (A) 2
Rated input power
1300 W
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 734.8 KB ]

Features & Applications

Features

  • High versatility for a wide range of chiseling applications
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High robustness and long lifetime due to separate lubrication chambers

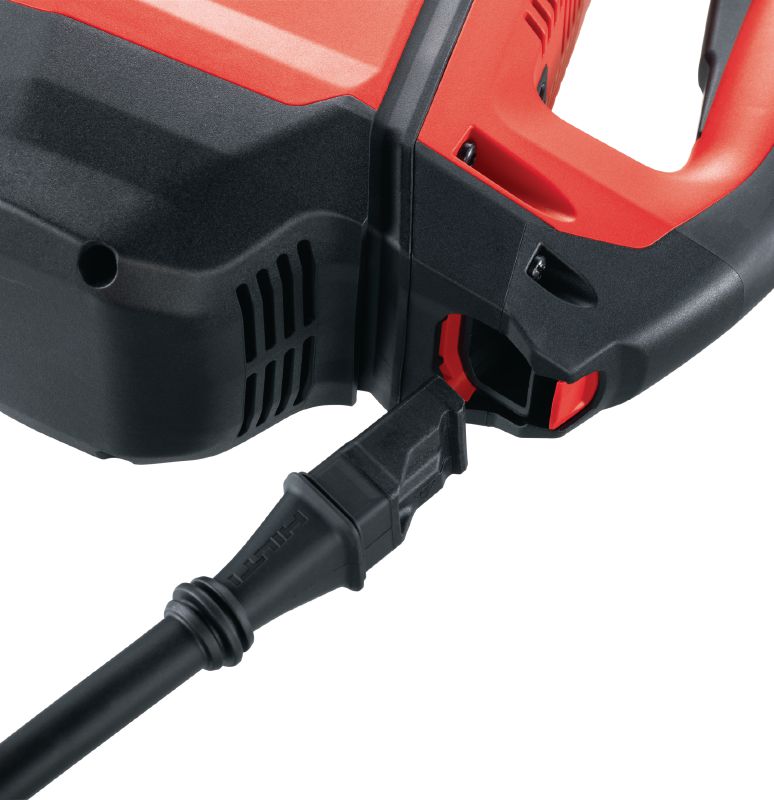

  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

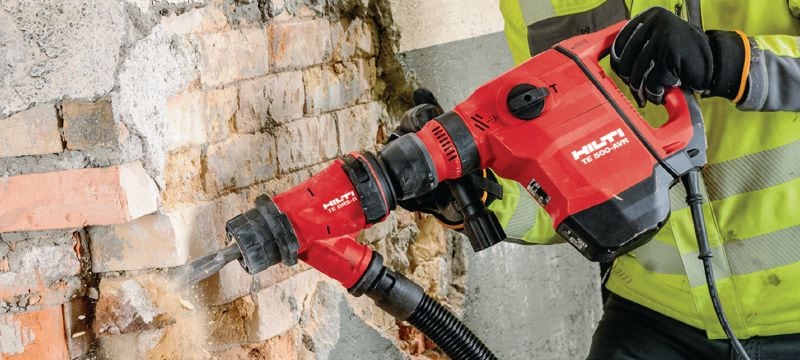

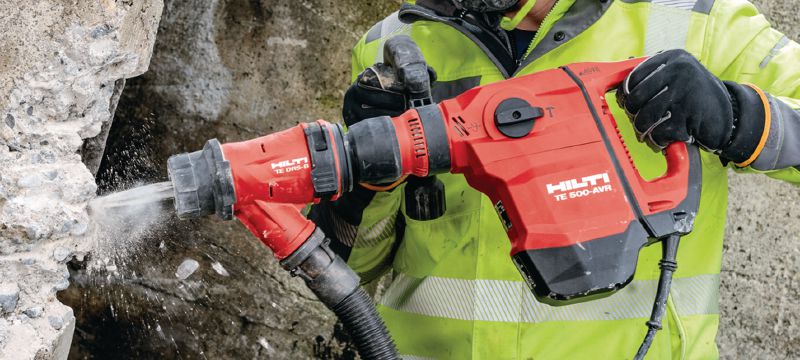

  • Optional DRS-B dust removal system collects up to 95% of dust

Applications

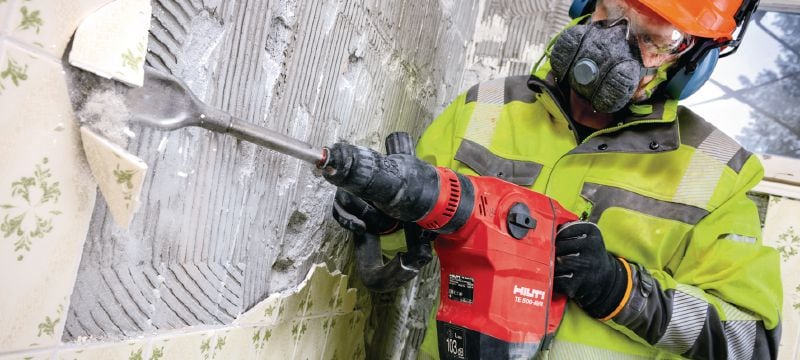

  • Chiseling on concrete and masonry walls
  • Channeling on concrete and masonry
  • Repairing concrete
  • Enlarging breaches
  • Light chipping on concrete or masonry
