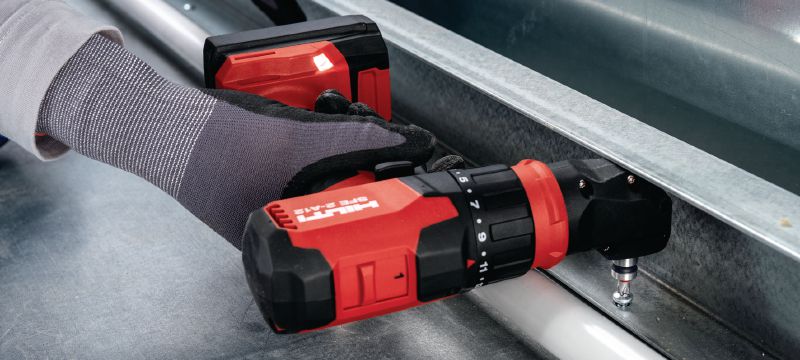

Subcompact-class 12V multi-head cordless drill driver (offset, right-angle, 13 mm keyless and hex bit holder) for installation work in tight spaces and around corners

  • Maximum torque (soft/hard joint): 21 Nm (soft joint), 34 Nm (hard joint)
  • No load RPM: gear 1: 400 rpm; gear 2: 1600 rpm
  • Number of gears: 2

Technical Data

Maximum torque (soft/hard joint)
21 Nm (soft joint), 34 Nm (hard joint)
No load RPM
gear 1: 400 rpm; gear 2: 1600 rpm
Number of gears
2
Dimensions (LxWxH)
131 x 68 x 177 mm
Tool body weight
0.66 kg
A-weighted emission sound pressure level
74 dB (A) 1
Rated voltage
10.8 V
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

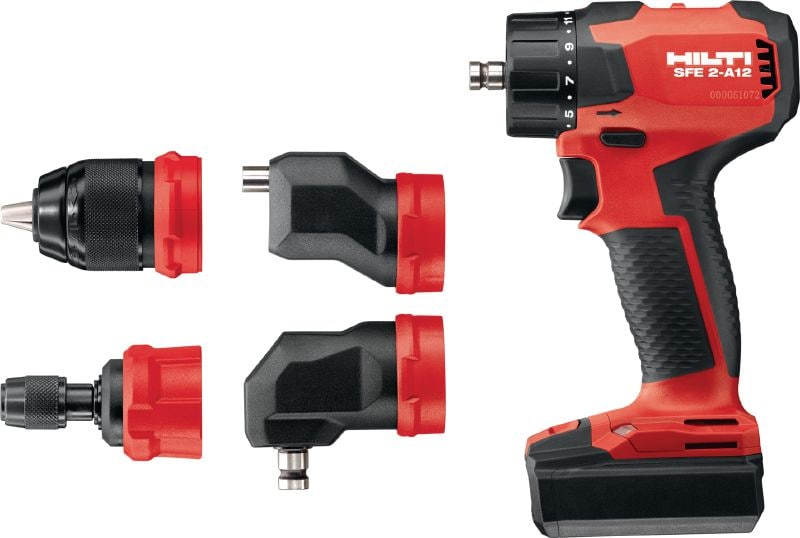

  • Four-in-one versatility – interchangeable attachments: offset chuck, right-angle drill driver adapter, 13 mm (1/2”) keyless chuck and hex bit holder
  • Specialised ergonomics – this multi-head drill driver has been engineered to give you the firm grip needed to maintain comfort and control, especially in awkward working positions
  • Heavy on torque, but light in your hand – powerful 1600 rpm drilling speed and 34 Nm hard joint torque in the smallest body possible
  • Equipped for precise work – two bright LEDs, a magnetic bit holder and 15-step clutch are geared towards efficient screwdriving while protecting your materials
  • Brushless motor – virtually maintenance-free to minimise tool downtime

Applications

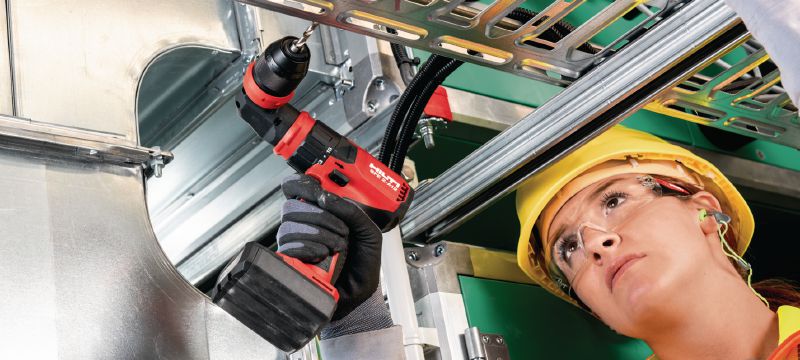

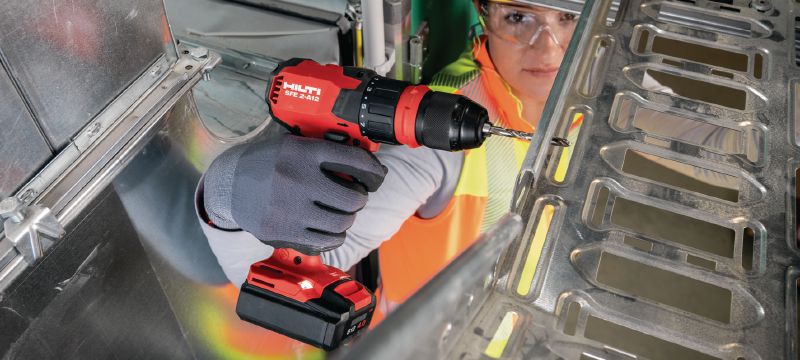

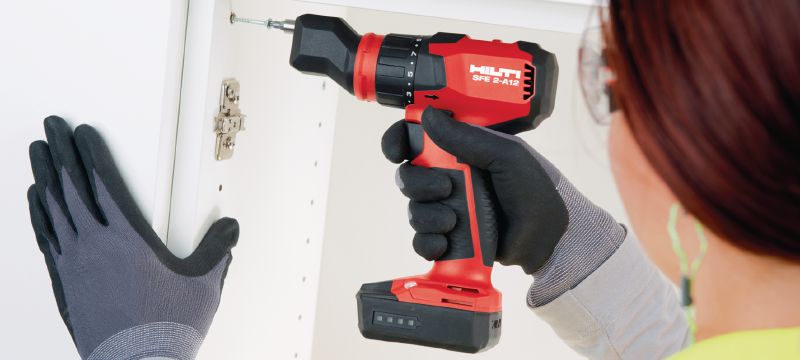

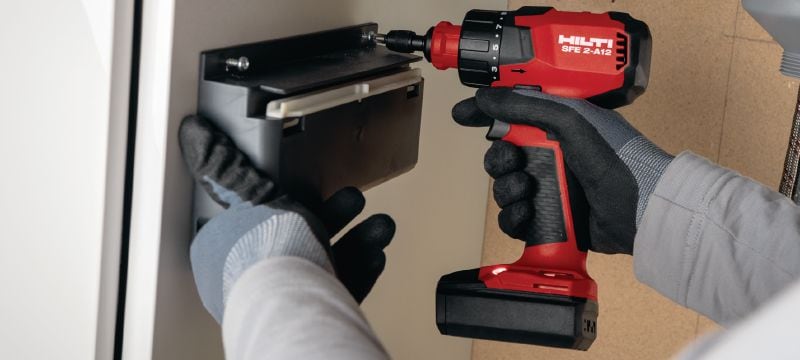

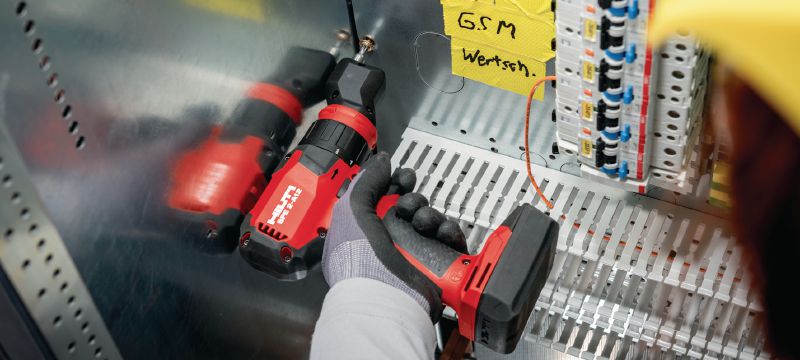

  • Everyday drilling and screwdriving in tight spaces – especially for carpentry, plumbing, electrical fixings and installing cabinets
  • Driving screws up to 6 mm diameter in wood
  • Driving self-tapping screws up to 4.8 mm diameter in metal
  • Drilling with auger and spade bits up to 14 mm diameter in wood
  • Drilling with HSS bits up to 6 mm diameter in metal

For approval or certificate information, please see individual items.
