Nuron

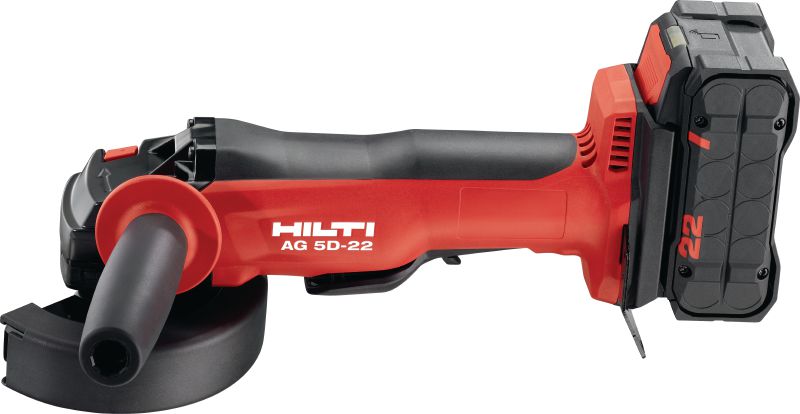

Nuron AG 5D-22 Cordless angle grinder (125 mm)

Configurator
Technical Data
Documents
Features & Applications
Related Products
L125684_V1 (225806)
L141781_cropped (225888)
L141789_cropped (225889)

Cordless brushless angle grinder with dead man's switch for everyday cutting and grinding with discs up to 125 mm (Nuron battery platform)

  • Tool Service 01: 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Rated voltage: 21.6 V
  • Disc diameter: 125 mm

Customers also searched for cordless angle grinder, hilti cordless grinder , brushless angle grinder , hilti ag-6d22 or battery grinder .

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 8,186.57

Technical Data

Tool Service 01
3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
Rated voltage
21.6 V
Disc diameter
125 mm
Tool Service 06
Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
Tool body weight
2.1 kg
Tool Service 10
After the no-cost period, repair costs are capped
Max. cutting depth
34 mm
No load RPM
gear 1: 9000 rpm
Dimensions (LxWxH)
289 x 83 x 132 mm
A-weighted emission sound pressure level
88 dB (A) 1
Triaxial vibration value for angle grinding (ah,AG)
5.4 m/s² 2
Weight according EPTA Procedure 01/2003 without battery
2.1 kg
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction AG 5D-22 (01), Arabic, cn, Danish, English, Spanish, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Portuguese, Romanian, Swedish, Turkish, Chinese [ 11.4 MB ]
pdf Operating Instruction DC-D, DG-CW, DC-TP, Russian, English, Spanish, French, Portuguese [ 3.1 MB ]

Features & Applications

Features

  • Compact, cordless 125 mm angle grinder for everyday cutting and grinding around the jobsite
  • More cuts per charge – upgraded run time thanks to the combination of brushless motor and longer-lasting Nuron batteries
  • Active Torque Control (ATC) – stops the grinder from spinning if the disc jams
  • Comprehensive safety features – dead-man’s paddle switch, disc brake, soft start and auto shut-off
  • Improved ergonomics – low weight and comfortable balance makes the grinder less tiring to use in any position

Applications

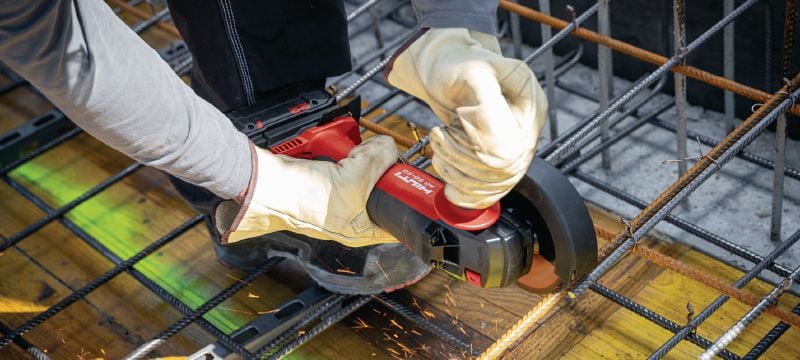

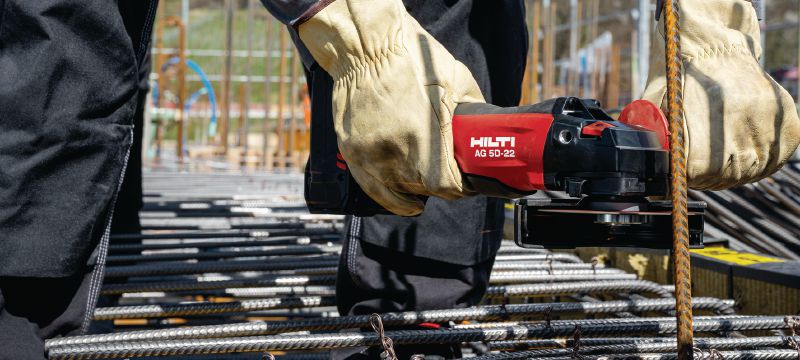

  • Cutting rebar, pipes and sheet metal
  • Cutting and grinding concrete, masonry, stone or roof tiles
  • Notching, grinding, deburring and finishing metal surfaces

For approval or certificate information, please see individual items.
