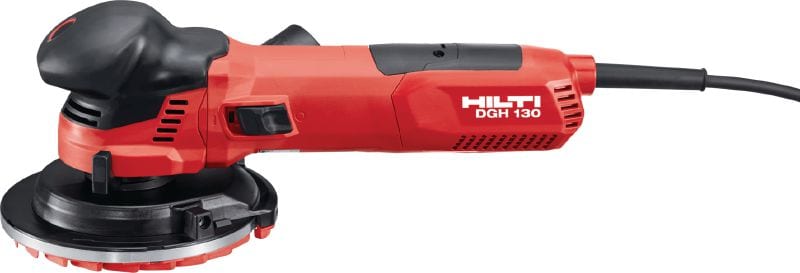

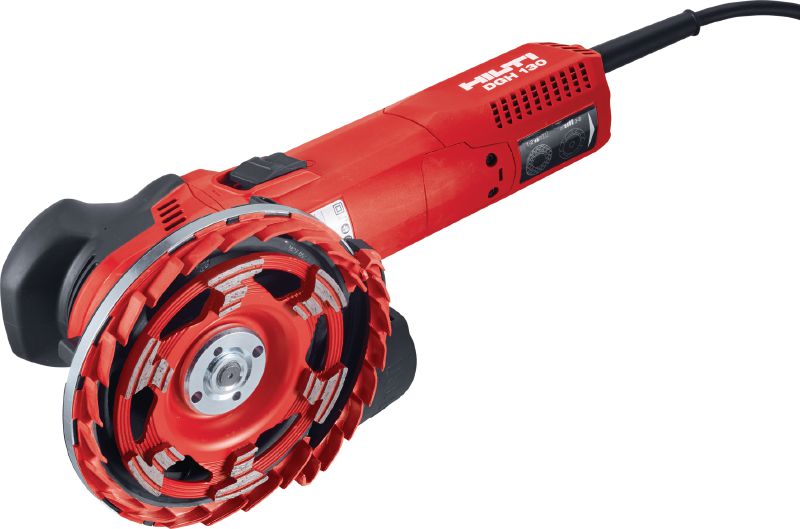

DGH 130 Concrete grinder

Diamond grinder DGH 130 230V box #2267004

Configurator
Technical Data
Documents
Features & Applications
Related Products
L110925 (191564)
DGB 130 Application_cropped (193219)
L111639_cropped (191587)
L111616_cropped (191589)
L111615_cropped (191590)
L111631_cropped (191588)

Concrete grinder for grinding and finishing of wall surfaces

  • Grinding wheel diameter: 130 mm
  • Weight according EPTA Procedure 01/2003 without battery: 2.54 kg
  • Base material: Concrete, Cement

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 11,154.04
ZAR 11,154.04 / 1 Piece

Technical Data

Grinding wheel diameter
130 mm
Weight according EPTA Procedure 01/2003 without battery
2.54 kg
Base material
Concrete, Cement
No load RPM
gear 1: 3000 rpm; gear 2: 4100 rpm; gear 3: 5200 rpm; gear 4: 6400 rpm; gear 5: 7400 rpm; gear 6: 8700 rpm
Arbor size
22.2 mm
A-weighted emission sound pressure level
88 dB (A) 1
Rated input power
1300 W
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction DGH 130 (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 4.5 MB ]

Features & Applications

Features

  • Dedicated grinding system – purpose-built to deliver much higher productivity than conventional angle grinders
  • Ergonomic head grip – for full control and comfortable hold when working in any position
  • Speed selection for better control on every surface
  • Virtually dust-free when used with a compatible Hilti vacuum cleaner
  • Adjustable dust hood for grinding edges and corners

Applications

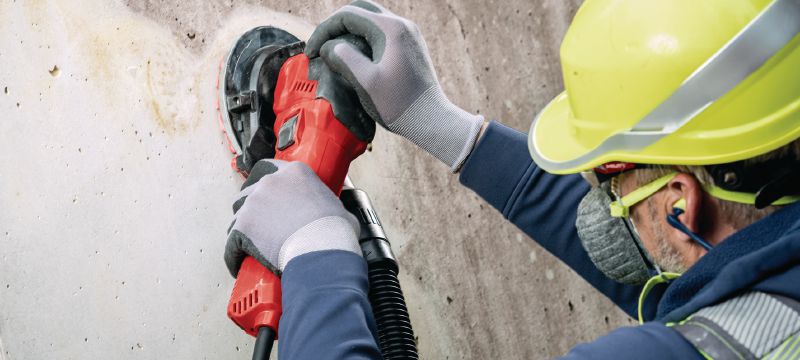

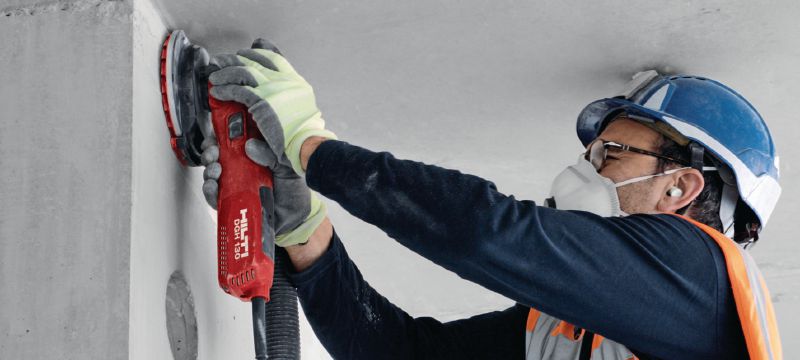

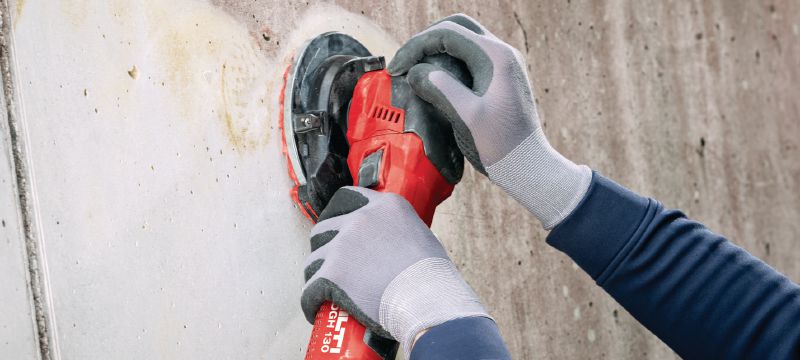

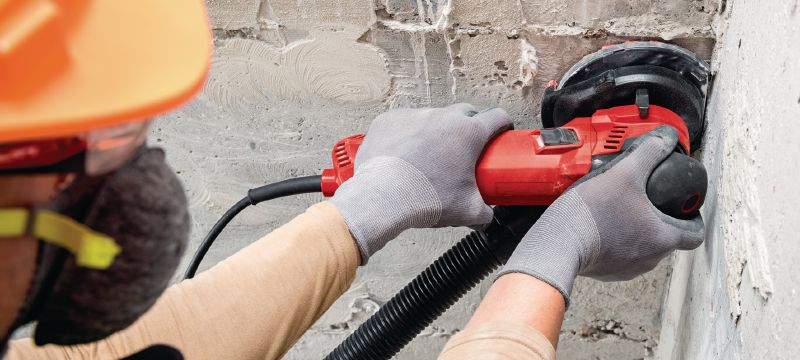

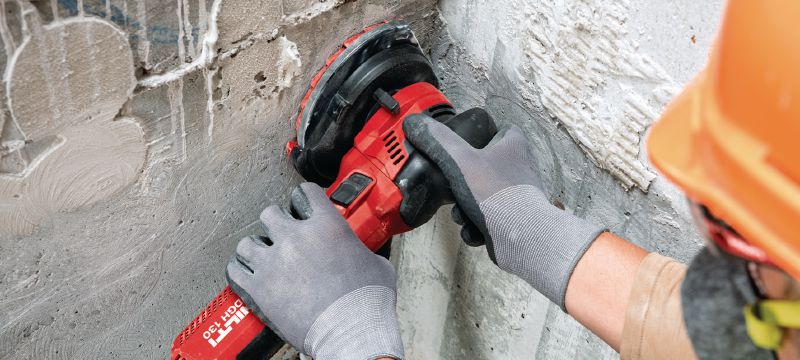

  • Surface grinding on concrete walls, joints and formwork
  • Surface finishing of concrete walls
