Nuron

SB 6-22 Deep cut band saw

Band saw SB 6-22 case #2326039

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130939 (2792541)
L130940 (2792551)
L147216_cropped (2748988)
L147205_cropped (2749001)

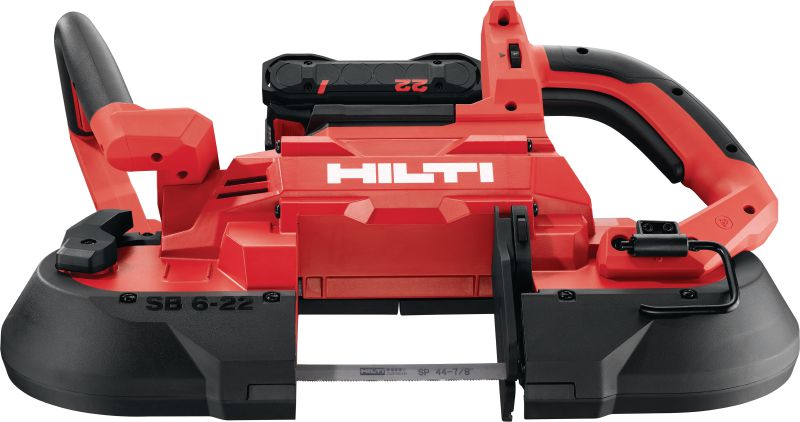

Deep cut dual trigger band saw for precise, low-noise and virtually spark-free cuts through metal up to 127 mm│5” cutting depth (Nuron battery platform)

  • Base material: Metal, Stainless steel, Cast iron, Aluminium, Carbon steel
  • Blade Dimensions (LxWxH): 1140 x 12.4 x 0.5 mm
  • Maximum cutting capacity: 127 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 18,872.93
ZAR 18,872.93 / 1 Piece

Technical Data

Base material
Metal, Stainless steel, Cast iron, Aluminium, Carbon steel
Blade Dimensions (LxWxH)
1140 x 12.4 x 0.5 mm
Maximum cutting capacity
127 mm
Tool body weight
6.32 kg
A-weighted emission sound pressure level
75 dB (A) 1
Triaxial vibration value for sawing into metal (ah,M)
0.8 m/s² 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SB 6-22 (01), Arabic, cn, Danish, English, Spanish, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Swedish, Chinese [ 5.5 MB ]

Features & Applications

Features

  • Deep cut band saw with advanced safety features – the extra cutting depth gives you a portable solution for even more metal/plastic sawing tasks, while the dual trigger design requires two-handed operation to better avoid accidents
  • Cut in any conditions – with virtually no sparks, debris and noise, portable deep cut band saws give you a safer way to cut in occupied buildings or other sensitive environments
  • High performance, low maintenance – the brushless motor delivers long-lasting power, while the keyless adjustable cutting shoe keeps you in control when slicing through larger objects
  • Five speeds for efficiency and comfort – cut metal pipe, strut, threaded rod or conduit with Hilti’s wide variety of easy-to-change, high-quality band saw blades
  • On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, energy-saving blades and a range of services to keep you more productive, today and tomorrow

Applications

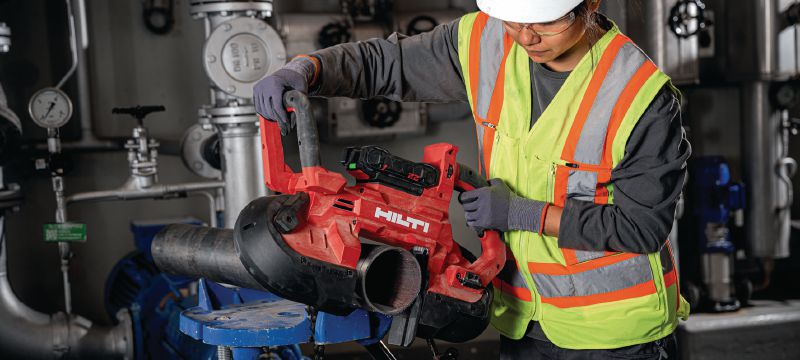

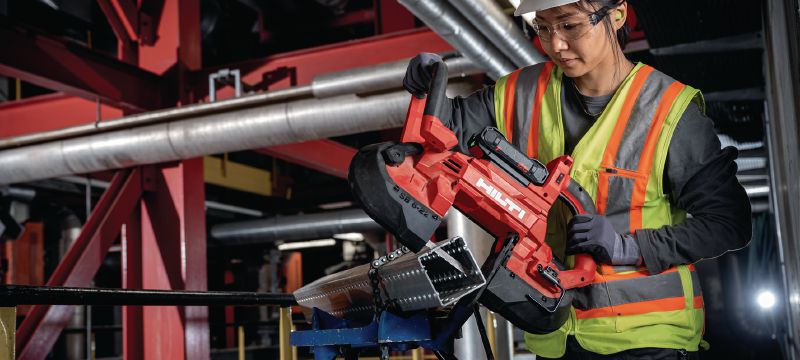

  • Cutting metal strut, pipes and threaded rod (max. cutting depth 127 mm)
  • Cutting MI, MT and Mekano® modular girders
  • Cutting plastic pipes
  • Cutting metal strut, pipes and threaded rod (max. cutting depth 5”)
  • Cutting 4.5” metal pipes
