Nuron

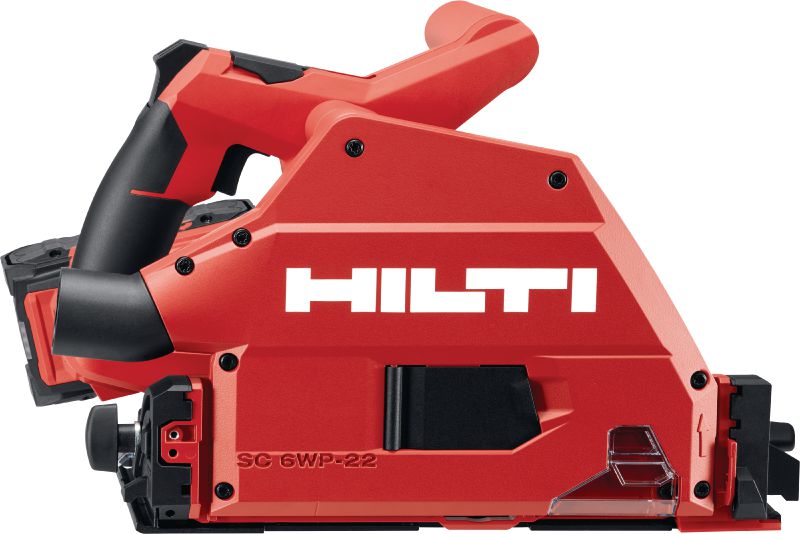

SC 6WP-22 cordless plunge saw

Configurator
Technical Data
Documents
Features & Applications
Related Products
L600185 (3080178)
L149614_cropped (3332089)
L149621_cropped (3332675)
L149626_cropped (3332083)
L149641_cropped (3332073)
L149821_cropped (3399205)
L149823_cropped (3399207)
L149827_cropped (3399214)

Precision plunge circular saw with high dust capture rate for clean and controlled, straight cuts in wood up to 53 mm│2-1/8" depth with guiderail

  • Max. cutting depth: 57 mm
  • Blade diameter: 165 mm
  • Base material: Drywall, Fibre board, Fibre cement board, Gypsum board, Hardwood (beech, oak etc.), Laminated board, Plastic, Plexiglass, Plywood, Softwood (fir, pine, etc.), Wood, Wood composites

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 28,712.90

Technical Data

Max. cutting depth
57 mm
Blade diameter
165 mm
Base material
Drywall, Fibre board, Fibre cement board, Gypsum board, Hardwood (beech, oak etc.), Laminated board, Plastic, Plexiglass, Plywood, Softwood (fir, pine, etc.), Wood, Wood composites
No load RPM
gear 1: 6000 rpm
Guiding rail compatibility
Yes
Dimensions (LxWxH)
360 x 200 x 237 mm
Cutting depth at 45 degrees
41 mm
Max. bevel angle
47 °
Tool body weight
3.3 kg
Maximum Cross Cut Capacity
x
A-weighted emission sound pressure level
98 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
0.9 m/s² 2
Triaxial vibration value for sawing into metal (ah,M)
1.7 m/s² 3
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SC 6WP-22 (01), Arabic, cn, Danish, English, Estonian, Finnish, French, Hebrew, Japanese, Kazakh, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 10.9 MB ]

Features & Applications

Features

  • Precision cutting – adjustable bevel, incremental 1mm depth adjustment and guiderail for accurate cuts and queue alignment
  • Virtually dust-free sawing – optimised dust and wood chip capture to reduce harmful dust inhalation and save time on clean-up
  • Designed for smoother, safer, more accurate cuts –ergonomic grips, parallel guide, guiderail compatible and fully concealed blade when idle
  • Faster cutting speed – perfectly paired with our universal wood blade for optimised cutting speed, battery life and performance
  • On the Nuron battery platform – cordless plunge saw without compromise thanks to longer-lasting batteries, energy-saving blades and a range of services to keep you more productive, today and tomorrow

Applications

  • Blade portfolio, for a wide range of materials such as wood boards, plasterboard and fibre cement boards
  • Building construction, for large cut-outs and beveling of structural and wall elements
  • Interior finishing, precision cut-outs and fine finish blade for virtually splinter-free edges
  • Versatile alternative to table saw for straight cuts with guiderail, long bevel cuts and sizing sheet goods on site

For approval or certificate information, please see individual items.
