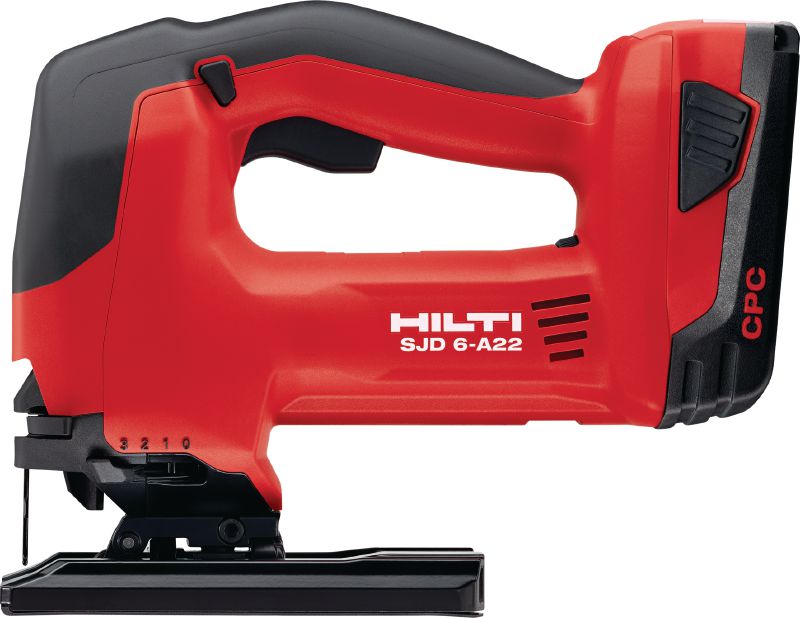

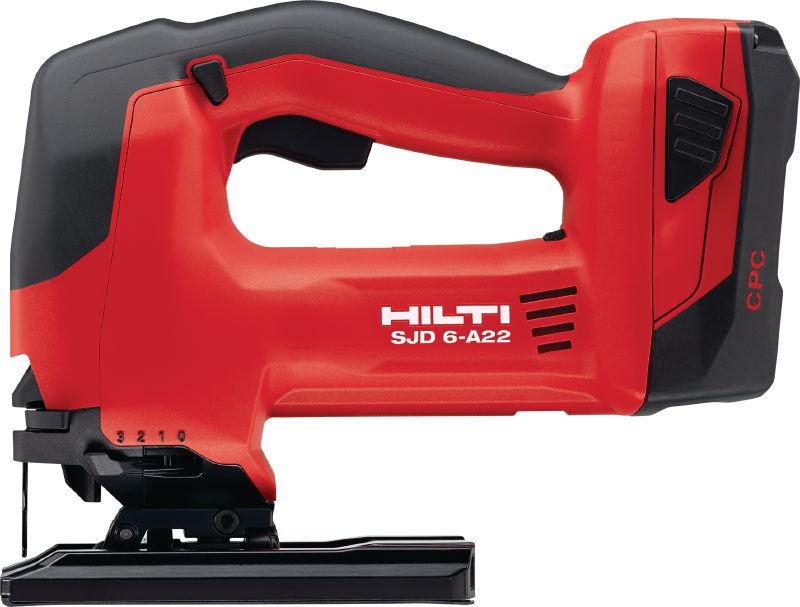

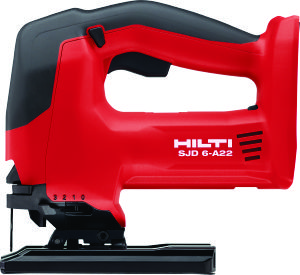

SJD 6-A22 Cordless jigsaw

Powerful 22V cordless jigsaw with top D-handle for a comfortable grip and superior control during curved cuts

  • Base material: Wood, Metal, Sandwich panel
  • Stroke length: 28 mm
  • Stroke rate: 3000 strokes/minute

Customers also searched for jigsawjigsaw tooljig sawcordless jigsaw or battery jigsaw .

Technical Data

Base material
Wood, Metal, Sandwich panel
Stroke length
28 mm
Stroke rate
3000 strokes/minute
Max. bevel angle
45 °
Max. cutting depth for aluminium
25 mm
Max. cutting depth in mild steel
10 mm
Max. cutting depth for wood
150 mm
A-weighted emission sound pressure level
87 dB (A) 1
Triaxial vibration value for cutting board (ah,B)
5.8 m/s² 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Cutting performance similar to that of a corded jigsaw, covering even the most demanding applications in harder and thicker materials
  • Compatible with all Hilti 22V Li-ion batteries
  • Variable-speed trigger with lock for continuous sawing
  • Keyless “push in, click” chuck for convenient blade changes
  • LED light, dust blower and more reliable blade guidance provide a clear line of sight for precise cuts

Applications

  • Cutting and trimming a wide variety of materials on the jobsite or in the fabrication shop
  • Wood and wood composites up to 150 mm thick
  • Wood with nails
  • Metals and metal alloys
  • Plastics

For approval or certificate information, please see individual items.
