HIT-HY 170 Adhesive anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

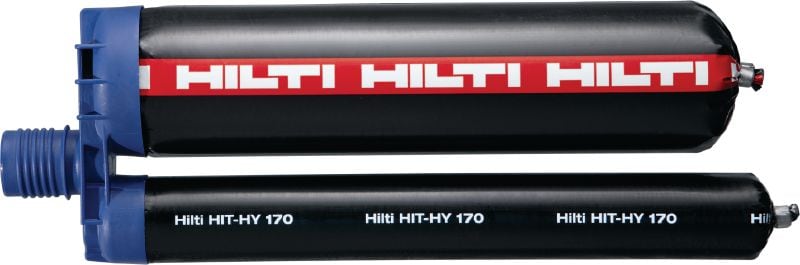

HIT-HY 170, 500ml (71752)
HIT-HY 170
HIT-HY 170 (L077165.tiff) (72357)
HIT-HY 170 (L077277.tiff) (78832)

High-performance injectable hybrid mortar with everyday approvals for post-installed rebar and anchoring in both concrete and masonry

  • Base materials: Concrete (cracked), Concrete (lightweight), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
  • Base material condition: Dry
  • Approvals / test reports: ETA, Seismic

Customers also searched for anchoring in concrete, anchoring in brick, chemical anchor, adhesive mortar or anchoring.

Choose options

Content per can/cartridge
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 1,316.70

Technical Data

Base materials
Concrete (cracked), Concrete (lightweight), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
Base material condition
Dry
Approvals / test reports
ETA, Seismic
Seismic loading
No
Fatigue loading
No
Fire resistance
No
PROFIS software
Yes
Anchoring elements
HAS-U threaded rods, HIT-IC internally-threaded rods, HIT-SC mesh sleeves, Rebar
Environmental conditions
Dry indoor
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 80 °C
Free of styrene
Yes

Documents

Technical information
Approval document
Material safety datasheet
Sustainability Documentation
Operating Instruction
Battery Recycling Information
pdf Product_Technical_Datasheet_HIT-HY 170_Concrete to concrete, English [ 1.2 MB ]
pdf Product_Technical_Datasheet_HIT-HY 170_Steel to masonry, English [ 1.5 MB ]
pdf Product_Technical_Datasheet_HIT-HY 170_Steel to concrete, English [ 860.7 KB ]
pdf Whitepaper fire design of PIR applications, English [ 1.4 MB ]

Features & Applications

Features

  • High-performance fast-curing solution suitable for post-installed rebar and anchoring applications in concrete and masonry

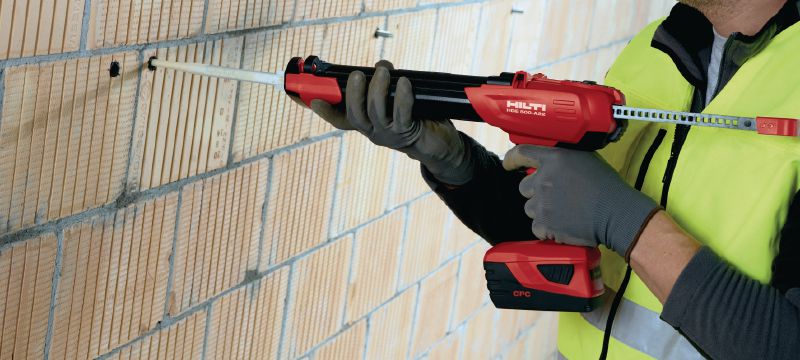

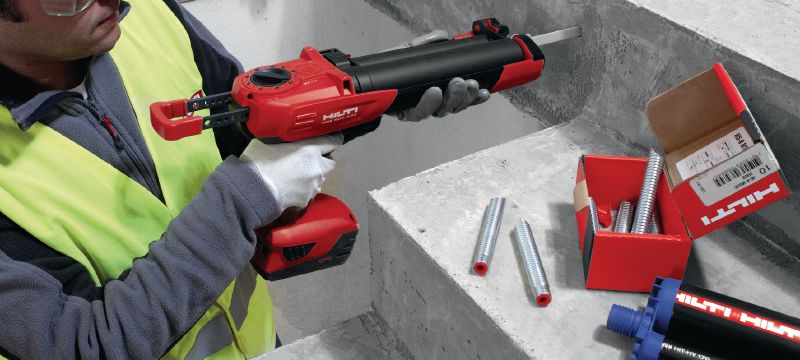

  • Faster, simpler and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
  • Comprehensive approvals available, including ETAs for anchoring in concrete or masonry and post-installed rebar
  • Environmental Product declaration (EPD), VOC and LEED certificates for Green building available
  • Extensive range of accessories available (e.g. sleeves, cordless electric dispenser)

Applications

  • Light-and medium-duty anchoring applications such as window bars, sanitary equipment, awnings, air conditioning systems, lights
  • Anchoring light structural steel connections such as steel columns and beams
  • Anchoring secondary steel elements

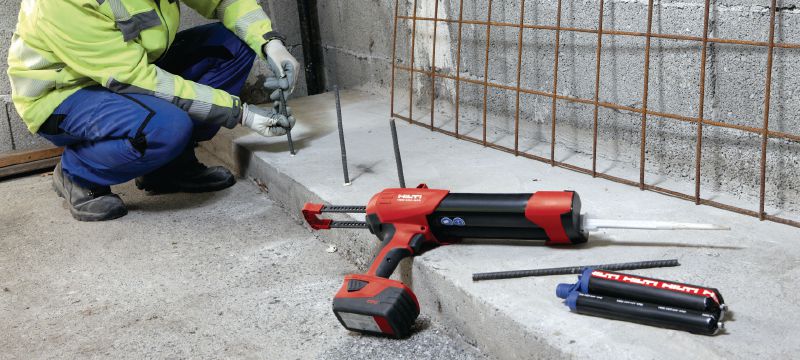

  • Renovation / upgrades with post-installed rebar
  • Substitution of misplaced / missing rebar

For approval or certificate information, please see individual items.
