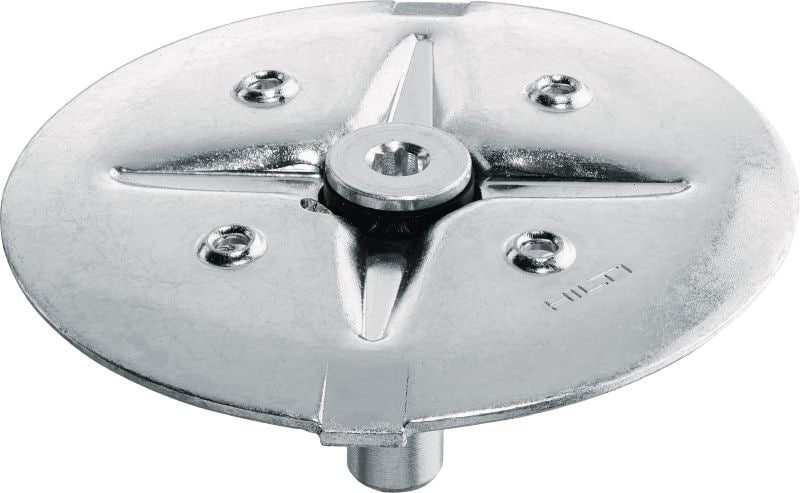

X-FCM-F L Grating fastener disc (large)

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130774 (2556373)
Grating

Wide grating fastener disc for threaded studs in mildly corrosive environments

  • Application: Grating
  • Approvals: ABS
  • For use with (tools): DX 351

Choose options

Grating height
  • 25 - 50 mm
Grating width range
  • 30 - 57 mm
Corrosion protection
  • Duplex coating, equivalent to 45 µm hot-dip galvanised
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 6,218.00

Technical Data

Application
Grating
Approvals
ABS
For use with (tools)
DX 351
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanised
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
6 mm

Documents

Technical information
Approval document
Documentation
pdf [PDS_C_080] X-FCM-F L - Large grating fastener disc (duplex coated) - Data Sheet 11/2025, English, German, Spanish, French, Italian, Polish [ 4.4 MB ]
pdf X-BT-GR, X-BT-MR Data Sheet, English [ 2.7 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Duplex-coated disc provides corrosion resistance
  • Locking tabs on the disc help to prevent self-loosening
  • Non-slip disc surface
  • Wide disc covers big grating mesh sizes
  • Cordless solution

Applications

  • Wide grating fastener disc for threaded stud in mildly corrosive environments
  • Wide grating discs are suitable for up to 60 mm width square mesh size or up to 57 mm width rectangular mesh sizes
  • Grating disc portfolio for 25-50 mm height

For approval or certificate information, please see individual items.
