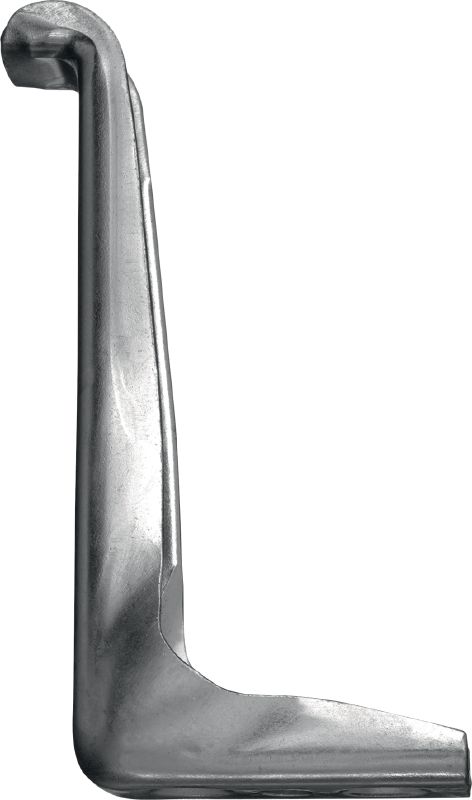

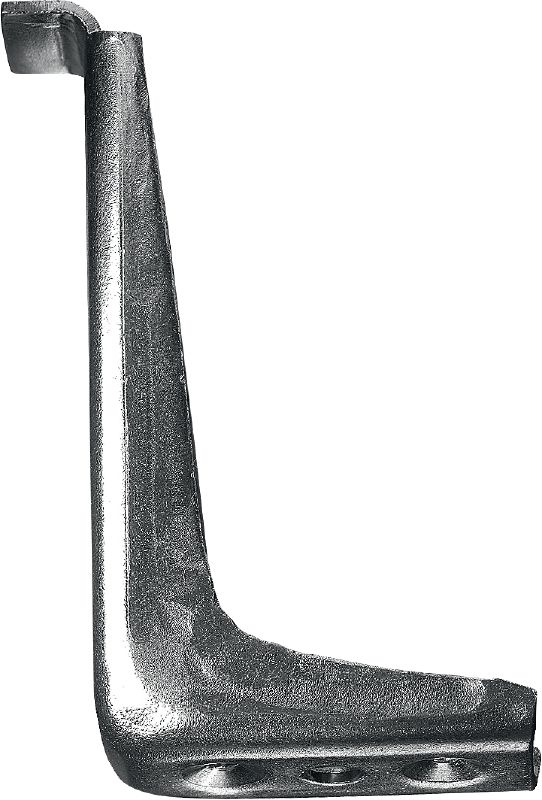

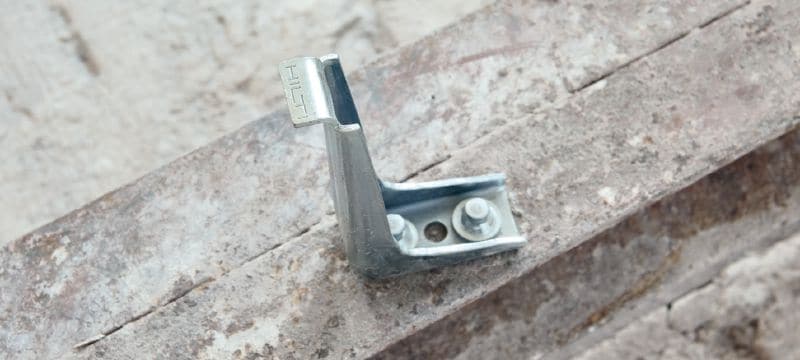

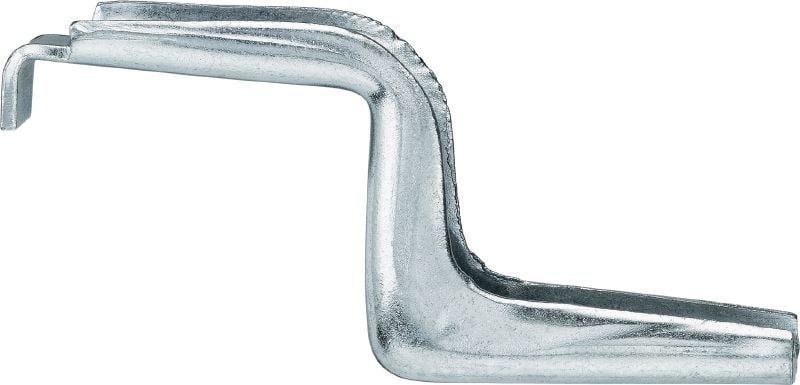

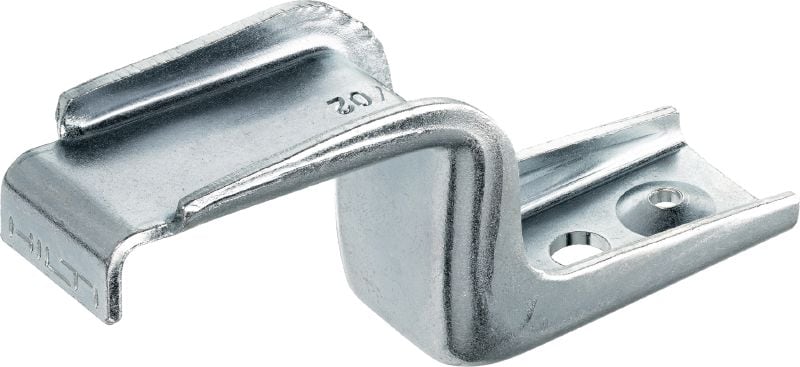

X-HVB Shear connector
Shear connector for composite beam constructions
- Application: Metal deck
- For use with (tools): DX 76
- Corrosion protection: Galvanised zinc coated <20 µm
ultimate
Customers also searched for metal floor decks, shear connectors, steel fastening, direct fastening or tools & equipment.
Choose options
Height
- 80 mm
- 95 mm
- 113 mm
- 128 mm
Fastener shank length
- 26 mm
Pack size
- 125 pc
- 200 pc
- 250 pc
Quantity
Packs
Total Pieces
1
EX. VAT
From ZAR 11,695.00
Technical Data
Application
Metal deck
For use with (tools)
DX 76
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Approvals
DIBt, SCI, SOCOTEC, TZUS
Base materials
Steel
Product class
Ultimate
Documents
Features & Applications
Features
- Economical alternative to stud welding – no expensive equipment required

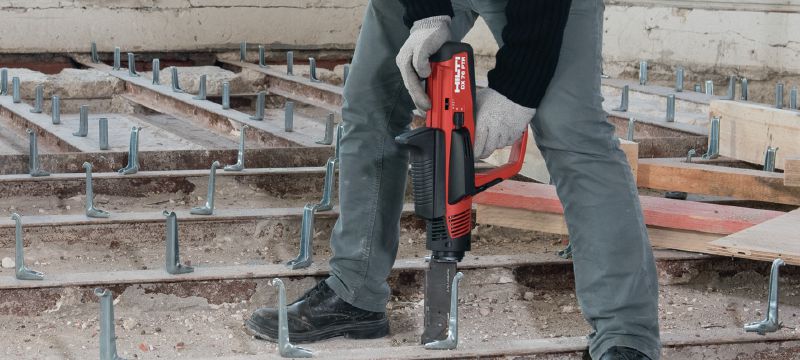

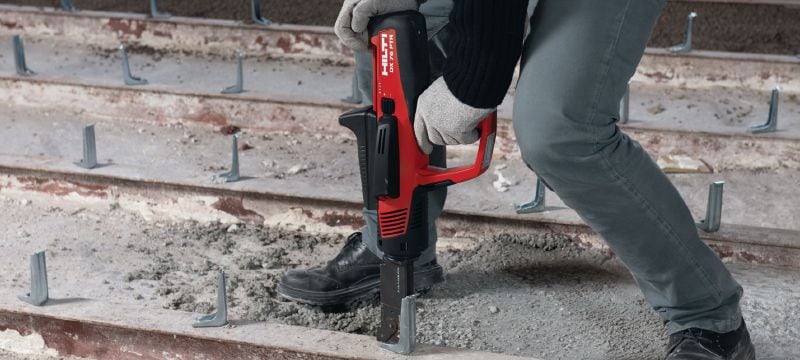

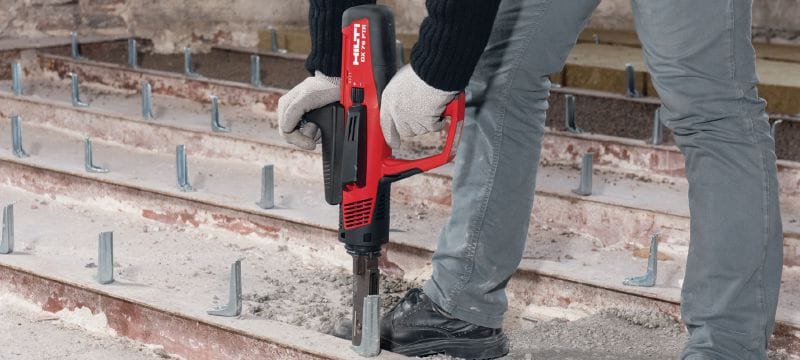

- Portable solution which can be moved around the jobsite easily without the need for pulling electric cables

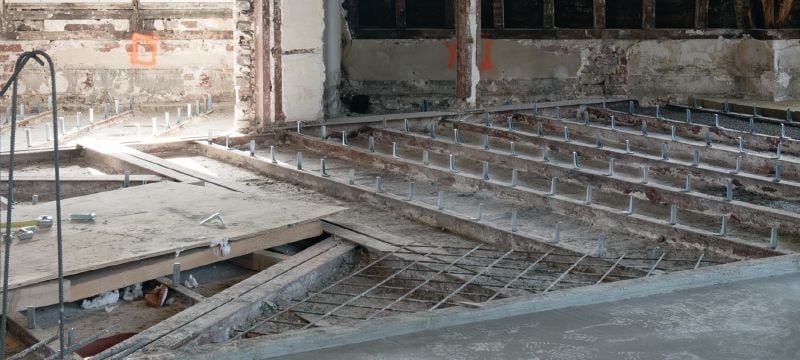

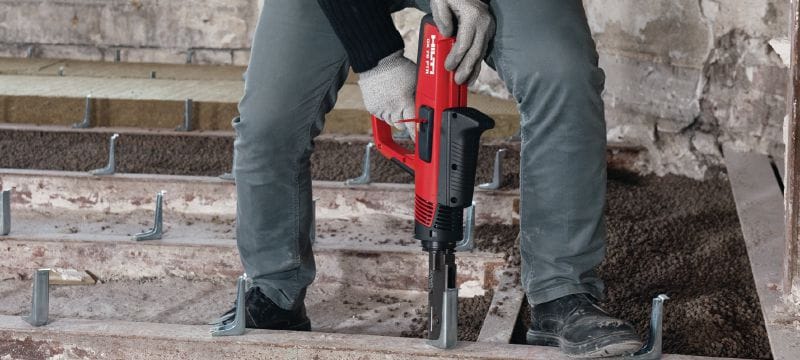

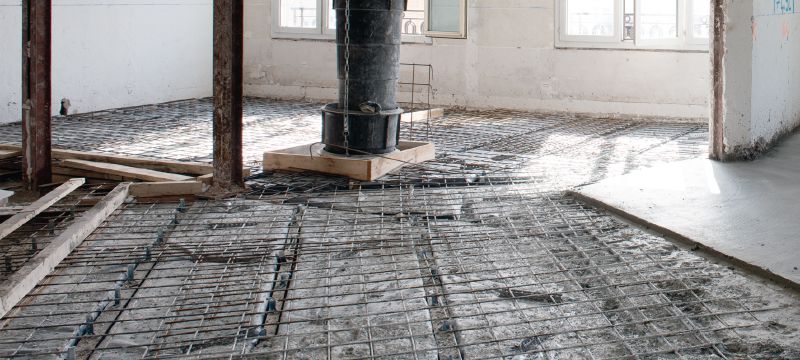

- Ideal for renovating old buildings where welding on existing cast-iron beams can be problematic
- Hilti web-based software available to aid optimum design in meeting the load requirements
- Increased productivity – quick set-up and usable in all weather conditions
Applications

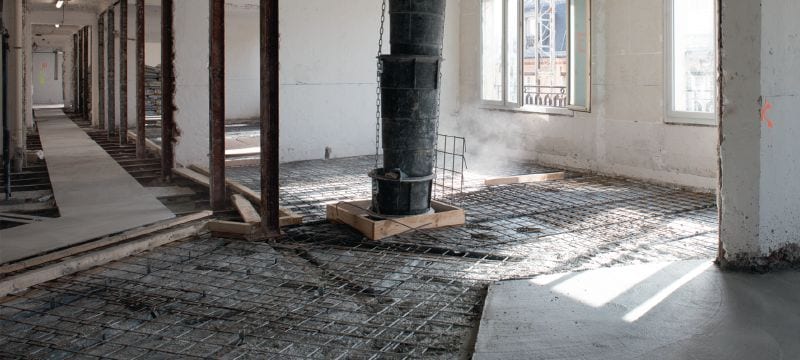

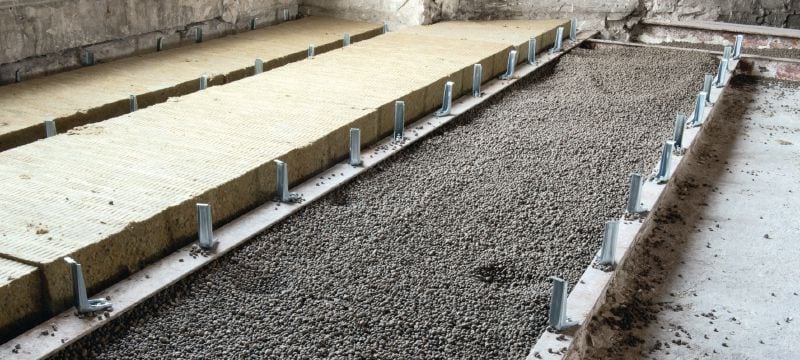

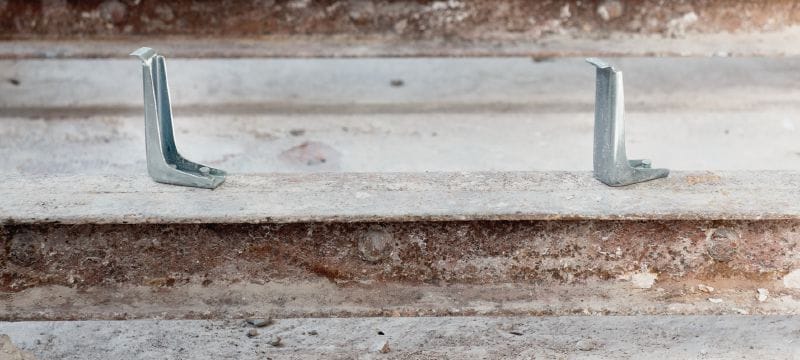

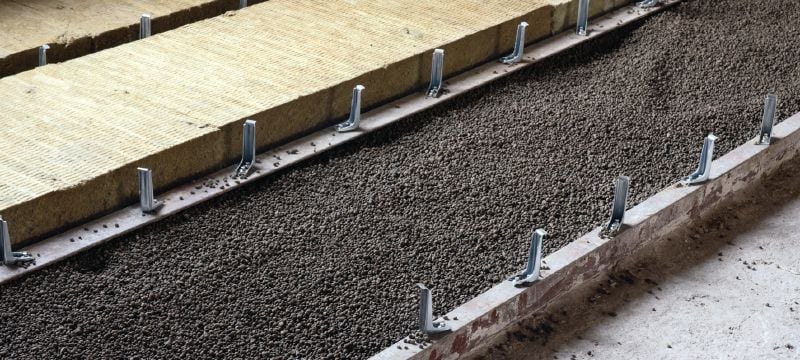

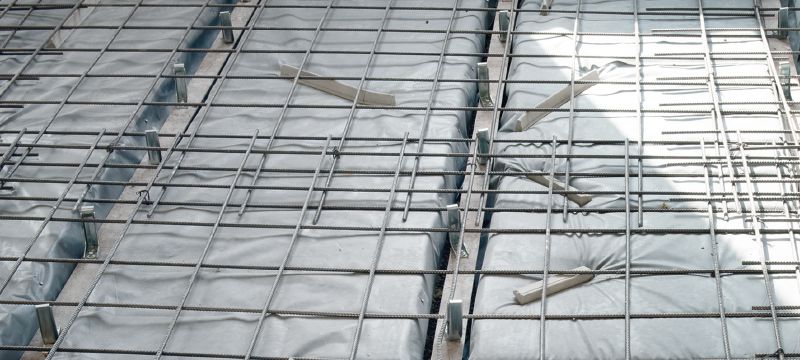

- Holding concrete slabs to steel structures to resist shear forces and increase shear loading capacity in composite structures
- Can be used on galvanised and painted beams
For approval or certificate information, please see individual items.
Related Products
Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks
Single nail for fastening shear connectors to steel structures using the DX 76 powder-actuated nailer
