DX 76 PTR Powder-actuated tool

A016004 (116351)
L_DX_76_PTR_02_kleber
L042152_cropped (195025)
DX 76 PTR
DX 76 PTR
L105723_cropped (195024)
A016004 (116351)
L_DX_76_PTR_02_kleber
L042152_cropped (195025)
DX 76 PTR
DX 76 PTR
L105723_cropped (195024)

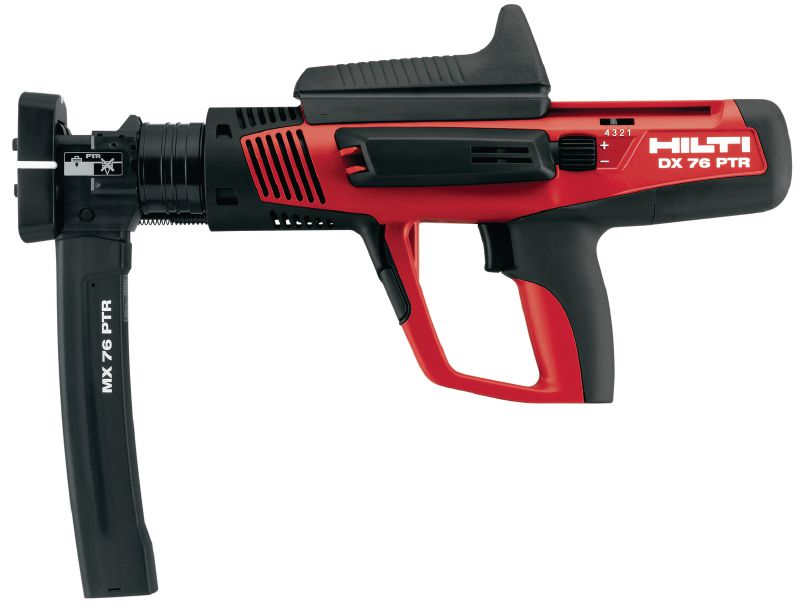

Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks

  • Dimensions (LxWxH): 464 x 104 x 352 mm
  • Weight: 4.37 kg
  • Fastener length range: 19 - 21 mm

Customers also searched for nail fastening tool, direct fastening tool, grating, industrial fastening or direct fastening.

Technical Data

Dimensions (LxWxH)
464 x 104 x 352 mm
Weight
4.37 kg
Fastener length range
19 - 21 mm
Automatic piston return
No
Bluetooth
No
Hilti Connect
No
Power (max.)
563 J
Power regulation
Yes
Piston type
X-76-P-ENP-PTR

Documents

Features & Applications

Features

  • PTR also helps to deliver excellent fastening quality even on thin materials with a thickness of 3 mm or greater
  • Fastener magazine and rugged design for more reliable, efficient and quicker operation
  • Drives fasteners at the average rate of 600 per hour
  • Easy assembly and disassembly for on-the-spot maintenance – no tools required
  • Advanced ergonomic design

Applications

  • Fastening composite metal decks to steel structures with a minimum thickness of 3 mm (1/4") for composite decking

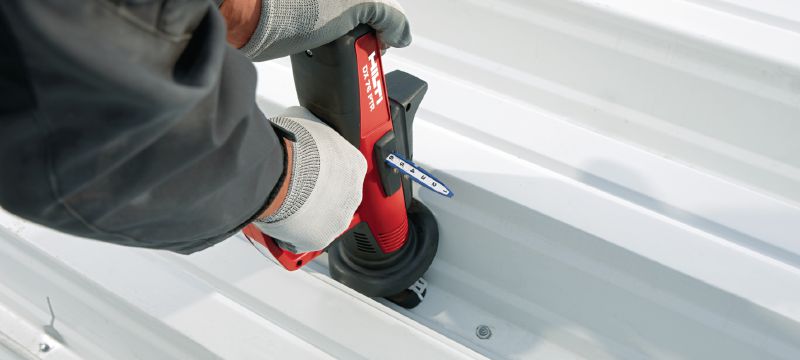

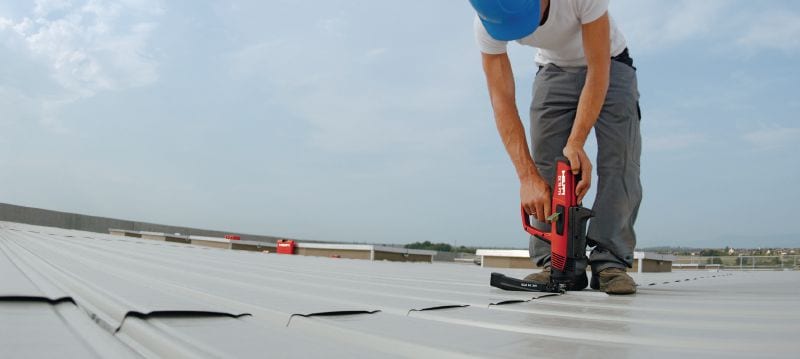

  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing

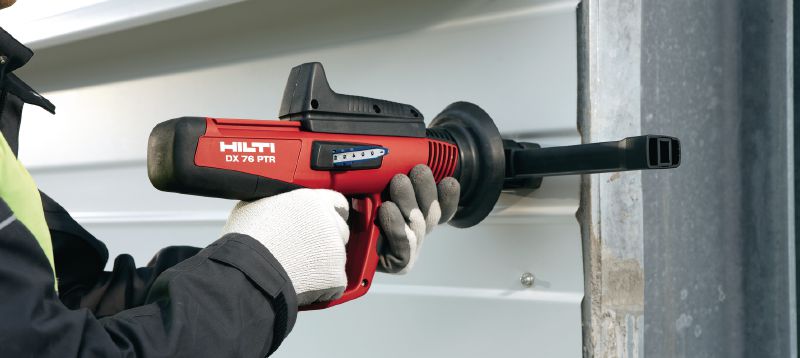

  • Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding

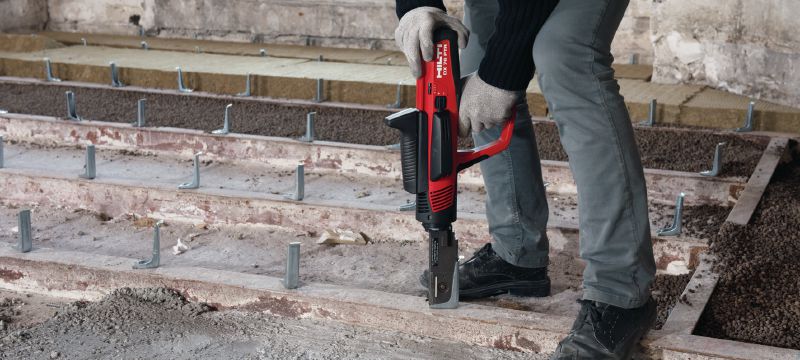

  • Fastening grating elements to steel structures using grating accessories
  • Fastening shear connectors on steel structures with HVB accessories

For approval or certificate information, please see individual items.
