HUS3-A 6 Concrete screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
57328.tif
L036088.tif, MPN-RC, HUS-A 6 screw anchor

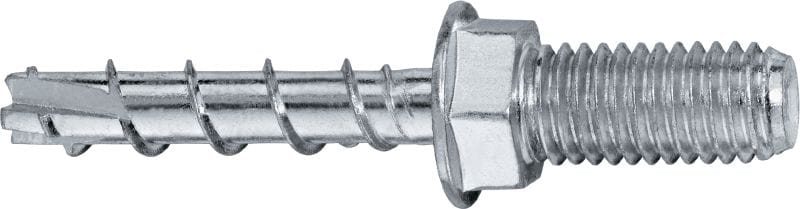

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, externally threaded head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • 6 mm / M8
  • 6 mm / M10
Anchor length
  • 35 mm
  • 55 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 3,426.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire
Base materials
Concrete (cracked), Masonry (solid)
Type of fastening
Pre-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Technical information
Approval document
Brochure
Instruction for use
pdf Technical data sheet for HUS3 screw anchor steel to concrete and steel to masonry, English [ 1.8 MB ]
pdf PDS_HUS3 HUS4 redundant_2024_en, English [ 1.4 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Ideal for overhead installation – greatly simplifies the work
  • M8 and M10 externally threaded head for direct attachment of pipe rings
  • More reliable and easier to set – HSE product profile available
  • Reduced edge and spacing distances

Applications

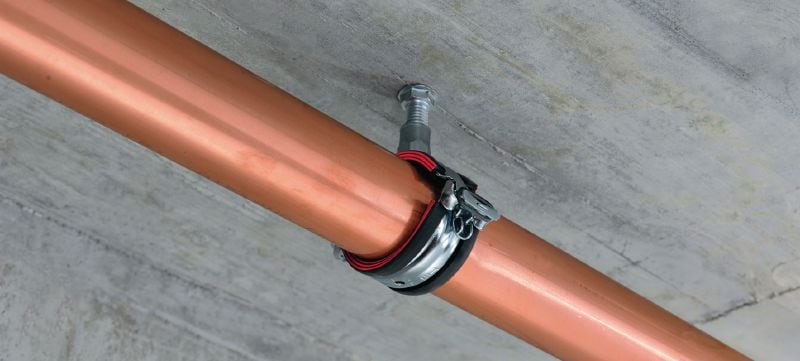

  • Fastening pipes, brackets and channels with maximum efficiency
  • Suitable for repetitive installation work

For approval or certificate information, please see individual items.
