HUS3-P 6 Concrete screw anchor

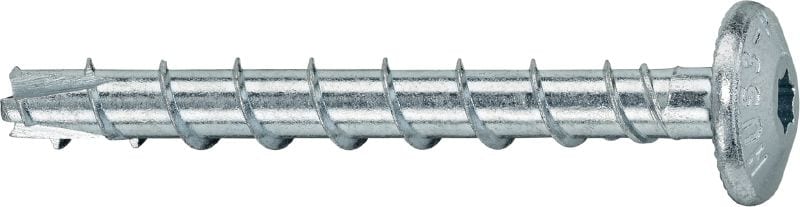

Screw anchor HUS3-P 6x40/5 #416745
Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, pan head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Pan head
- Bit size: T30
Customers also searched for screw anchors, anchoring railings, anchors, reusable anchors or anchoring.
Choose options
Anchor size
- 6 mm
Anchor length
- 40 mm
Pack size
- 100 pc
Quantity
Packs
Total Piece
100
EX. VAT
ZAR 1,943.10
ZAR 19.43 / 1 Piece
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Pan head
Bit size
T30
Drill bit diameter
6 mm
Approvals / test reports
ETA, Fire, VDS
Reusable (and removable)
Not possible
PROFIS software
Yes
Material composition
Steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Higher productivity – less drilling and fewer operations than with conventional anchors
- Flat head configuration for easy adjustment of new channel system components
- Reliable and easy to set – HSE product profile available
- Reduced edge and spacing distances
- Ideal for overhead installation – greatly simplifies the work
Applications

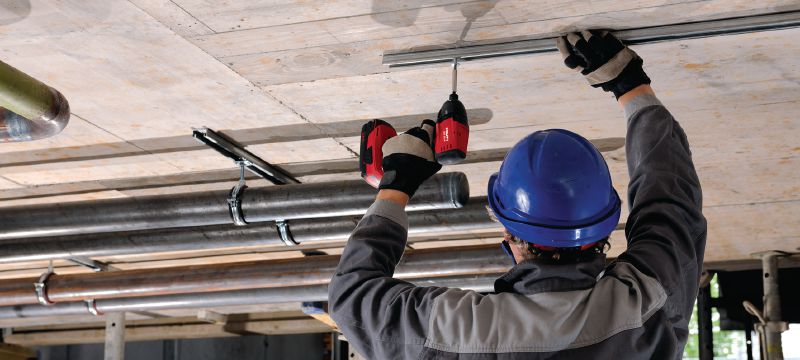

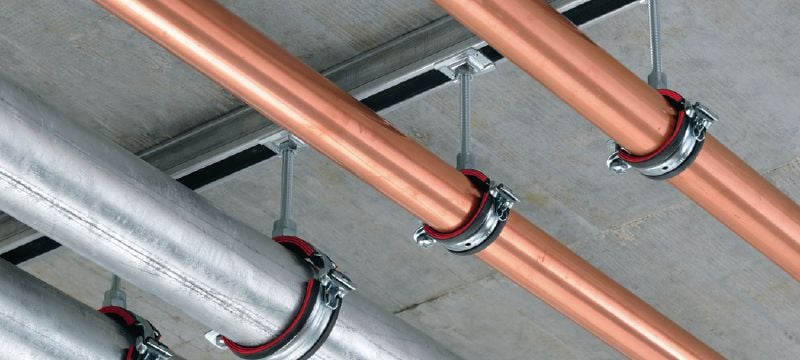

- Fastening channels directly to the ceiling for the installation of pipes or ventilation ducts
- Fastening handrails or railings and other ornamental steelwork
- Suitable for repetitive installation tasks
