HCC-K Shear connector

Configurator
Technical Data
Documents
Features & Applications
Related Products
31678.tif
HCC

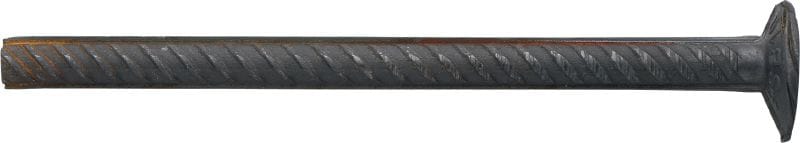

Shear connector for rebar

  • Material, corrosion: Carbon steel
  • Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor (more than 1km to coast)
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Choose options

Material composition
  • B500B DIN 488
Anchor size
  • 12 mm
  • 14 mm
  • 16 mm
Anchor length
  • 230 mm
  • 290 mm
  • 360 mm
Pack size
  • 25 pc
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
From ZAR 7,613.25

Technical Data

Material, corrosion
Carbon steel
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor (more than 1km to coast)
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
No
Approvals / test reports
ETA
Type of fastening
Pre-fastening

Documents

Approval document
Technical information
Operating Instruction
pdf ETA-20/0475 HCC-K, English, German, Polish, French [ 3.8 MB ]
pdf ETA-16/0143_HIT-RE 500 V3_Anchor_EC2_50&100years_052019, English, French [ 5.3 MB ]

Features & Applications

Features

  • Easy to use – no preparation of the anchor rod required before setting
  • Easier calculation – according to "rebar as anchor" theory
  • More reliable design – structure shows monolithic behaviour after use of HCC-K

Applications

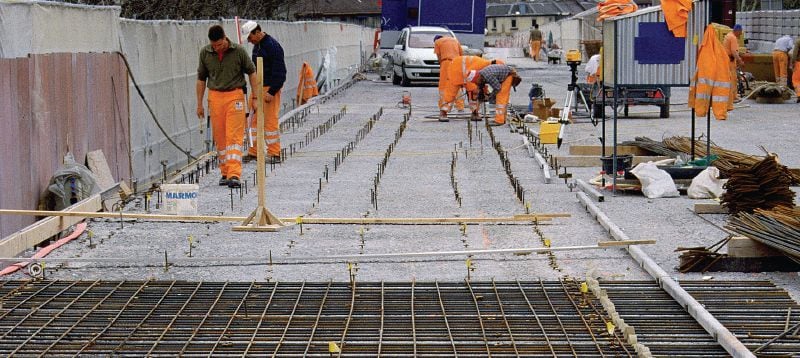

  • Renovation – reinforcement and renovation of bridges, tunnels and high-rise buildings
  • Rehabilitation – bridges, dams, parking garages
  • Reinforcement – slabs, walls, pillars
  • Concrete-concrete overlays
  • Rehabilitation – bridges, concrete streets, parking garages

For approval or certificate information, please see individual items.
