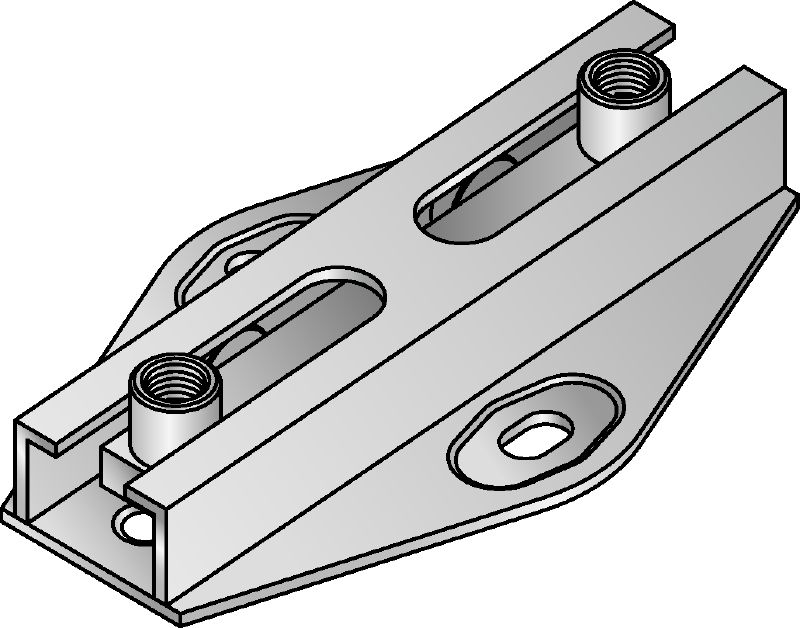

MRG-D6 double roll connector

Double roll connector MRG-D6 #334131

Configurator
Technical Data
Documents
Features & Applications
Related Products
MRG-D6

Galvanised double roll connector for heavy-duty heating and refrigeration applications

  • Thread connection - M: M12, M16
  • Height - H: 45 mm
  • Maximum load - F: 8 kN

Choose options

Thread connection - M
  • M12, M16
Height - H
  • 45 mm
Maximum load - F
  • 8 kN
Pack size
  • 5 pc
 Product options
Quantity
Packs
Total Pieces
5
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 8,454.05
ZAR 1,690.81 / 1 Piece

Technical Data

Thread connection - M
M12, M16
Height - H
45 mm
Maximum load - F
8 kN
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 300 °C
Base material type
Concrete, Steel, Wood
Max. displacement
116 mm
Coefficient of sliding friction
0.08
Weight
1.86 kg

Documents

Sustainability Documentation
Operating Instruction
pdf  EPD_Pipe Fixation (Metal/Polym, English [ 2.1 MB ]

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Load classes and capacities matched to Hilti pipe clamps
  • Stiffened base plate fits MQ modular support system
  • Smooth rolling movement on coated runner in both directions in axial pipe direction
  • High temperature resistance up to 300°C – no plastic parts

Applications

  • Mounting pipes subject to thermal elongation and contraction
  • single-point fastening of pipes or in combination with modular support systems
  • Recommended for use in dry, interior environments
