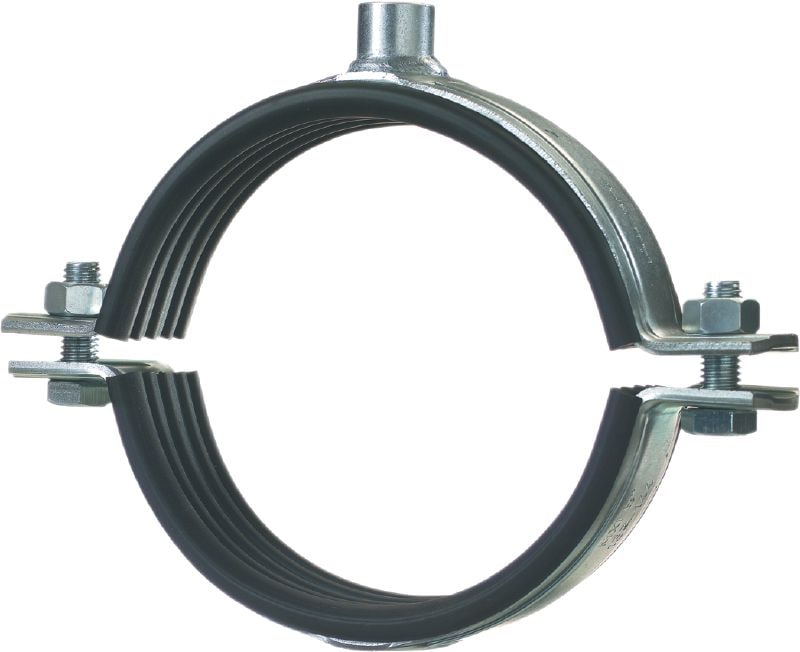

MP-MXI-F heavy-duty pipe clamp
hot-dip galvanised (HDG) pipe clamp with sound insulation for extra heavy-duty applications
- Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
- Noise reduction: 16 dB (A)
- Temperature resistance: -50 - 120 °C
Customers also searched for Insulated pipe clamp, heavy-duty pipe clamp, hot-dip galvanised pipe clamp, HDG pipe clamp or HDG pipe ring.
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Documents
Features & Applications
Features
- Solid connection head, welded all around
- Strong clamping screws for high load values
- Non-slip, pre-fitted profiled rubber inlay
- Suitable for installing pipes under dynamic loading if used with vibration-damping components
- High resistance to corrosion
Applications

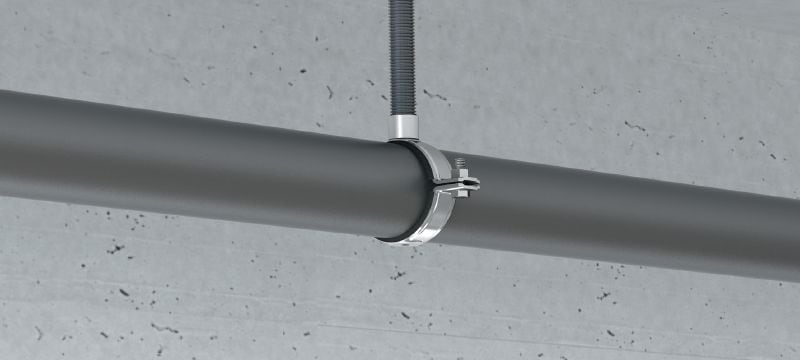

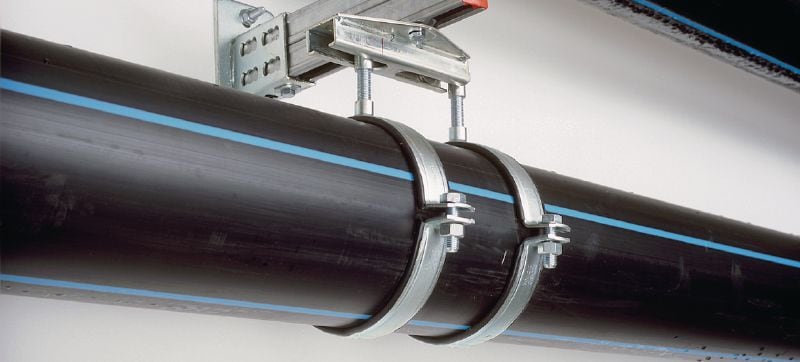

- heavy-duty pipe installations up to 508 mm
- Installing industrial pipes
- Mounting process and control queues
- heavy-duty plumbing and heating applications
- Recommended for use in moderately corrosive outdoor and indoor environments
For approval or certificate information, please see individual items.
