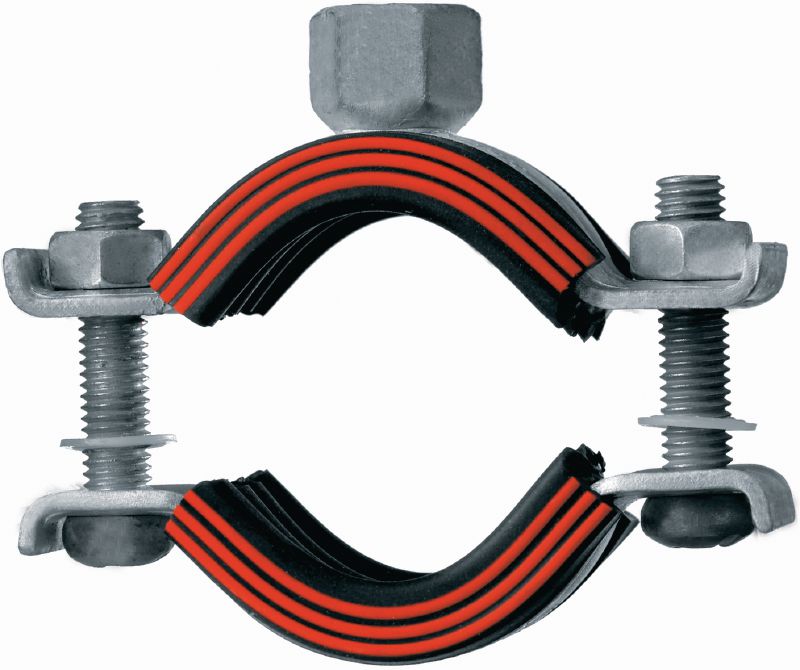

MP-MI-F heavy-duty pipe clamp
hot-dip galvanised (HDG) pipe clamp with sound insulation for heavy-duty applications
- Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
- Noise reduction: 18 dB (A)
- Temperature resistance: -50 - 120 °C
premium
Customers also searched for Insulated pipe clamp, heavy-duty pipe clamp, hot-dip galvanised pipe clamp, HDG pipe clamp or HDG pipe ring.
Choose options
Clamping range - D
- 25 - 30 mm
- 48 - 54 mm
- 57 - 64 mm
- 70 - 77 mm
- 82 - 90 mm
Thread connection - M
- M10
Nominal pipe size (imperial)
- 3/4 in
- 1-1/2 in
- 2 in
- 2-1/2 in
- 3 in
Pack size
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
EX. VAT
From ZAR 1,161.95
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction
18 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Product class
Premium
Documents
Features & Applications
Features
- Closure screws secured to help prevent loss
- Solid welded-on connection head
- Clamping screws secured against loss
- Profiled clamp band for higher rigidity
- High resistance to corrosion
Applications
- heavy-duty pipe installations up to 3"
- Installing industrial pipes
- Mounting process and control queues
For approval or certificate information, please see individual items.
