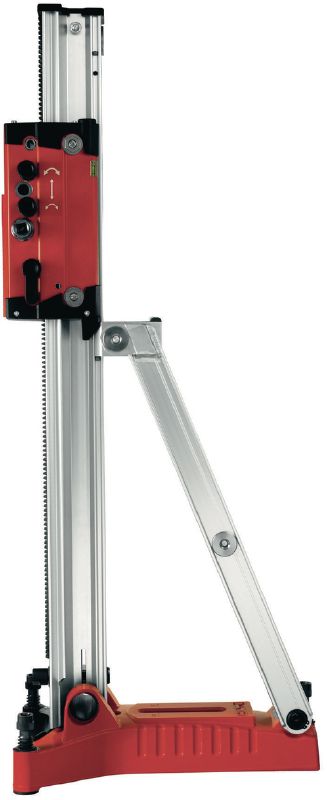

DD-HD 30 Core drill stand

Drilling stand DD-HD 30 #2148548

Configurator
Technical Data
Features & Applications
Related Products
5583.tif

Drill stands for the Hilti DD 200, DD 250, DD 350-CA and DD 500-CA drive units

  • Fixation mode: Anchor, vacuum with add-on vacuum pad
  • Angular coring: Yes
  • Column extension: Yes

Customers also searched for drilling stand, coring holes, coring tools, coring in concrete or coring.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

EX. VAT
ZAR 40,198.39
ZAR 40,198.39 / 1 Piece

Technical Data

Fixation mode
Anchor, vacuum with add-on vacuum pad
Angular coring
Yes
Column extension
Yes
For use with
DD 200, DD 250-CA, DD 350-CA, DD 500-CA
Weight
21.4 kg
Base plate dimensions (LxW)
410 x 272 mm
Drill stand height
1086 mm
Extendable diameter capacity
Yes

Features & Applications

Features

  • Built-in fine feed – making drilling less tiring during sustained operation
  • Angular drilling – easy, stepless adjustment up to 45°
  • Comprehensive range of accessories available – such as vacuum pads, spacers, cross column, jack screws and fastening kits
  • Easy set-up – tool-free quick-connection of drive unit

Applications

  • Drilling range up to 300 mm diameter without spacers
  • Drilling range up to 600 mm diameter with spacers
  • Coring at angles of up to 45°
  • Can be fastened by anchor, using the optional vacuum pad or with the jack screw
