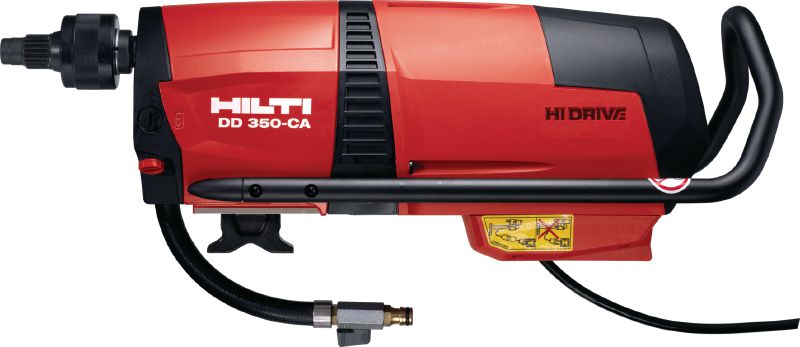

DD 350-CA Core drill
Diamond coring tool DD 350-CA BL 230V #2087381

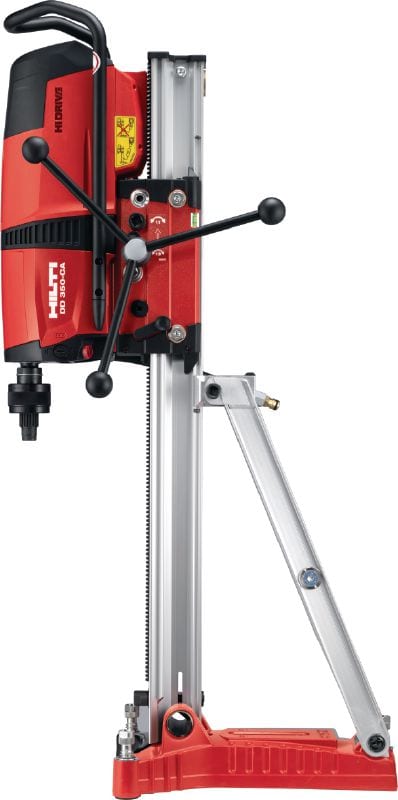

Heavy-duty diamond coring machine with high-frequency motor and optional auto-feed unit for rig-based coring from 52-500 mm (2-1/16 - 19-11/16”) in diameter
- Diameter range: 52 - 500 mm
- Rated input voltage: 230 V
- Base material: Concrete, Reinforced concrete
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
EX. VAT
ZAR 107,197.94
ZAR 107,197.94 / 1 Piece
Technical Data
Diameter range
52 - 500 mm
Rated input voltage
230 V
Base material
Concrete, Reinforced concrete
Operation mode
Rig-based drilling system
Rated input power
3600 W
Number of gears
10
No load RPM
gear 1: 298 rpm; gear 2: 667 rpm; gear 4: 619 rpm; gear 5: 571 rpm; gear 6: 524 rpm; gear 7: 405 rpm; gear 8: 357 rpm; gear 9: 286 rpm
Weight according EPTA Procedure 01/2003 without battery
14.4 kg
Weight of complete system
35 kg
Dimensions (LxWxH)
608 x 192 x 216 mm
A-weighted emission sound pressure level
95 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
pdf Operating Instruction DD 350-CA (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese [ 15.9 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]
Features & Applications
Features
- Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range

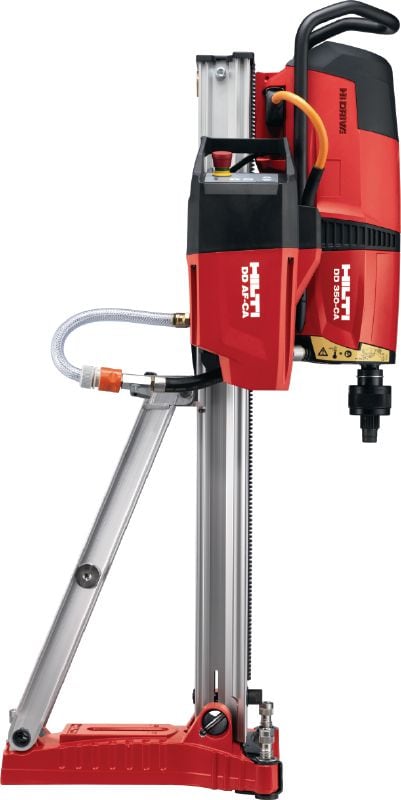

- Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process
- Iron Boost: for a quick performance boost with increased torque when drilling through rebar
- Thanks to IP 55 water spray protection, drilling can be carried out under adverse conditions
- Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators

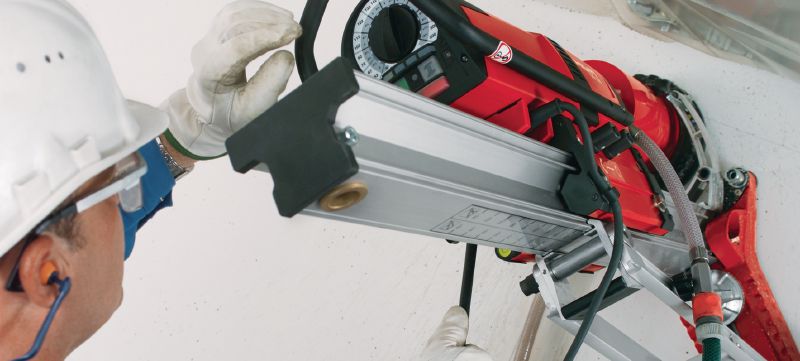

Applications

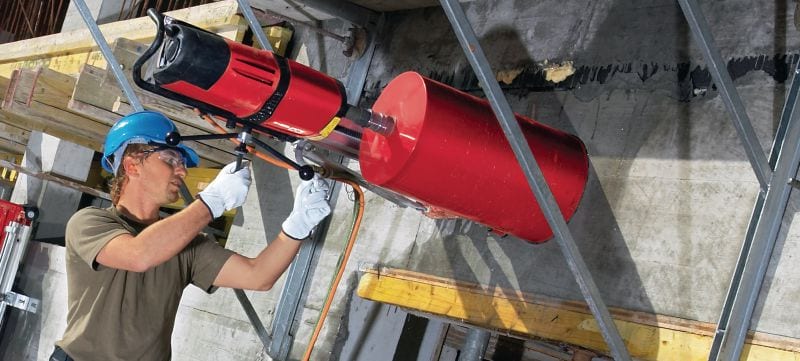

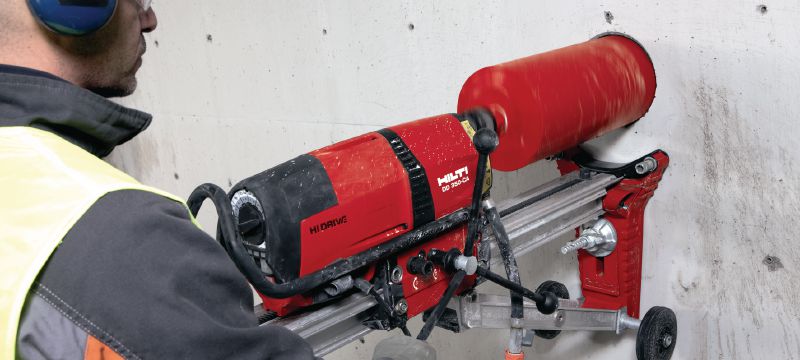

- Drilling through-holes and penetrations
- Blind holes for setting anchors or post-installed rebar
- Corner holes for sawing
- Manhole openings
- Stitch coring for installing cable trays
