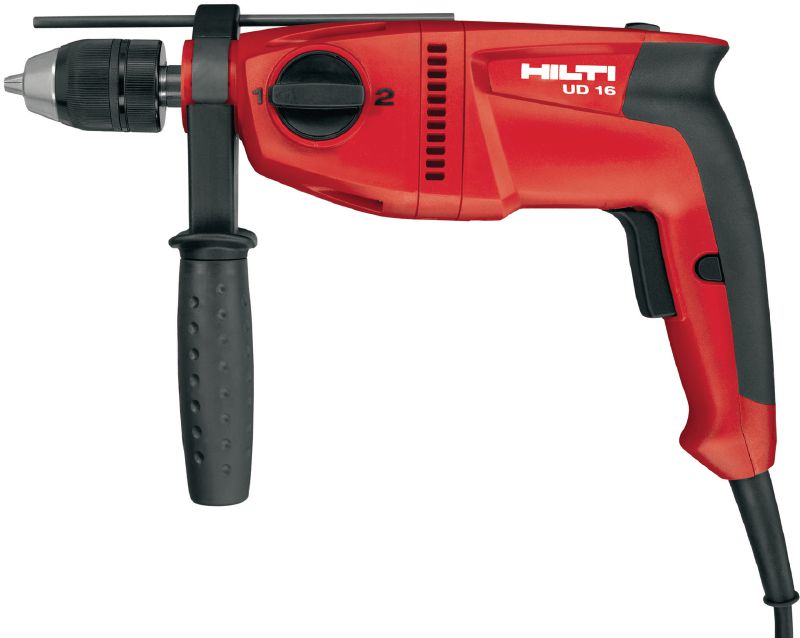

UD 16 Drill driver
Corded two-speed, high-torque drill driver for wood applications
- Chuck clamping range: 2 - 13 mm
- No load RPM: gear 1: 900 rpm; gear 2: 2500 rpm
- Maximum torque (soft/hard joint): 80 Nm (soft joint)
Customers also searched for hammer drill, corded drill, portable drill, steel drill or construction hammer drill.
Technical Data
Chuck clamping range
2 - 13 mm
No load RPM
gear 1: 900 rpm; gear 2: 2500 rpm
Maximum torque (soft/hard joint)
80 Nm (soft joint)
Number of gears
2
Dimensions (LxWxH)
342 x 86 x 205 mm
Weight
2.6 kg
Triaxial vibration value for drilling into metal (ah,D)
2.5 m/s² 1
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Ergonomically designed pistol grip and low weight for maximum comfort during long periods of use
- Very reliable thanks to the extremely rugged casing and robust motor
- Stepless electronic speed control for smooth, gentle starting and screwdriving
- Features two gears – first gear for high torque, second gear for high speed
- Choice of keyless chuck with spindle lock or robust key chuck
Applications

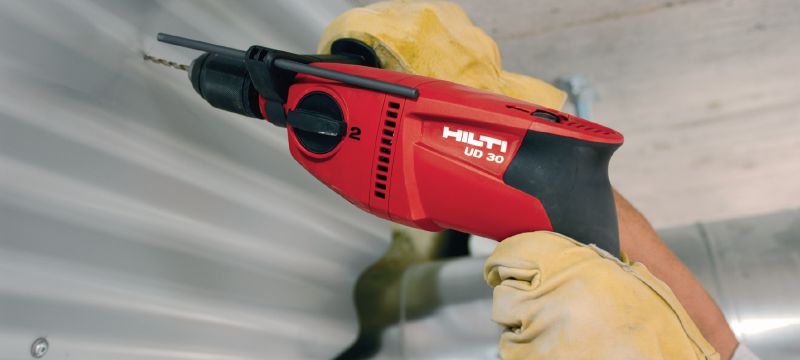

- Drilling in steel and sheet metal
- Drilling in wood with auger bits, paddle bits and Forstner bits
- Various screwdriving jobs

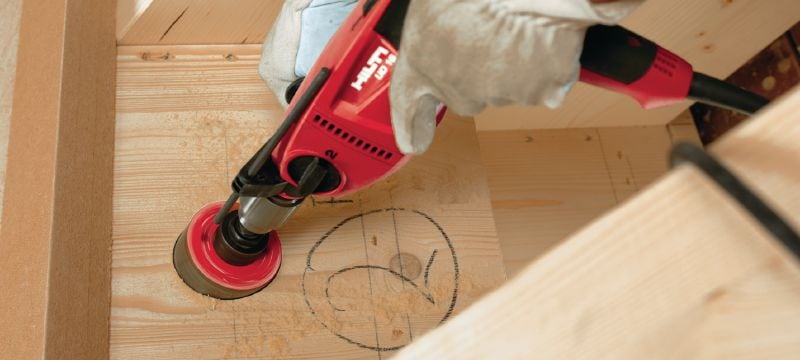

- Use of hole saws (up to 68 mm dia.)

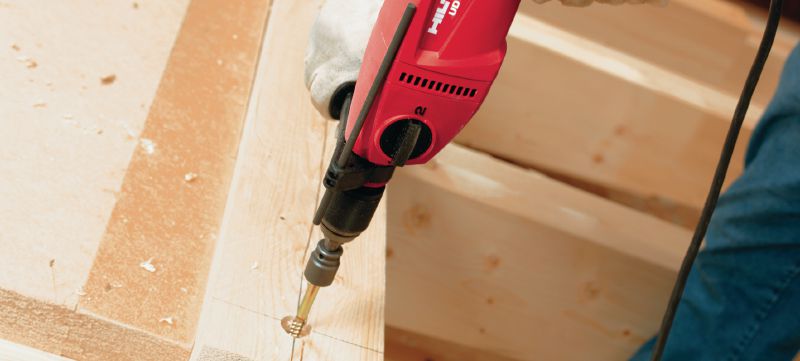

- Driving large-diameter wood screws
For approval or certificate information, please see individual items.
Hilti Tool Service
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
