Nuron
Nuron TE 2-22 Cordless rotary hammer
Compact and light weight SDS Plus cordless rotary hammer with pistol grip for best maneuverability when drilling overhead (Nuron battery platform)
- Weight according EPTA Procedure 01/2003 without battery: 2.3 kg
- Optimum hammer drilling range: 4 - 12 mm
- Single impact energy: 1.5 J
Customers also searched for cordless rotary hammer drill, cordless drill hammer, hilti cordless rotary hammer drill, cordless sds drill or cordless sds rotary hammer drill.
Technical Data
Weight according EPTA Procedure 01/2003 without battery
2.3 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.5 J
Hammer drilling diameter range
4 - 22 mm
Hammer drilling RPM
1090 rpm
Full hammering frequency
4860 impacts/minute
Functionality
Reverse mode, LED working light
Triaxial vibration value for hammer drilling into concrete (ah,HD)
13.7 m/s² 1
A-weighted emission sound power level
103 dB (A) 2
A-weighted emission sound pressure level
95 dB (A) 3
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Unbeatable grip and agility – TE 2-22 is our lightest and slimmest cordless rotary hammer, with improved in-line pistol grip designed to help you work in cramped quarters without the muscle strain
- Virtually dust-free drilling – when used with a Hilti DRS-D or DRS-S dust removal attachment or hollow drill bit and compatible Hilti vacuum cleaner
- Safer work at heights – use the included belt hook and optional tool tether to free your hands without compromising on tool drop protection
- Improved drilling precision – LED light provides better visibility of your work area, and the enhanced grip provides more comfortable control
- On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow
Applications

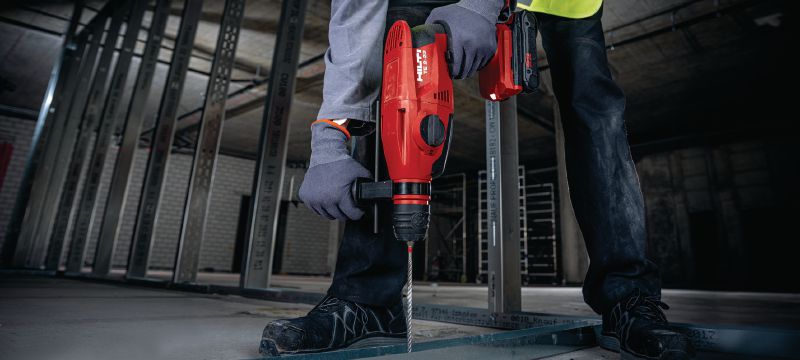

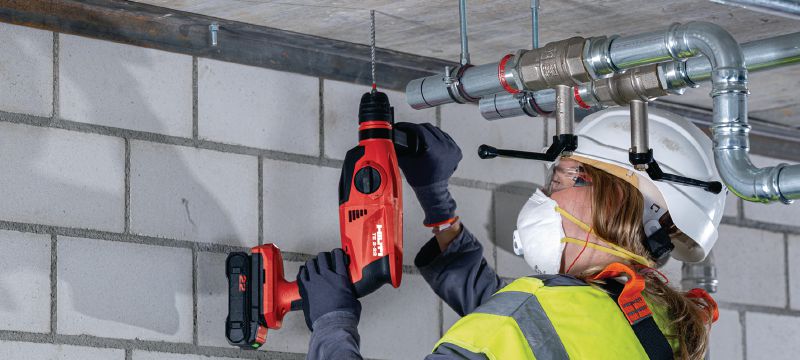

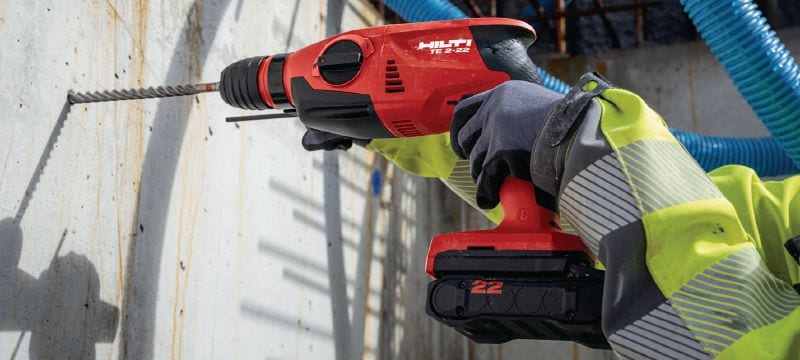

- Drilling into concrete and masonry, especially overhead or in tight spaces
- Interior finishing – installing drywall track and suspended ceilings
- Metal fabrication – fastening metal fixtures to concrete, such as handrails, staircases, sun blinds and safety barriers
- Electrical and telecom – installing cables, switchgear, outlet boxes and lights
- Any smaller drilling jobs, when cordless convenience and comfortable handling is more efficient overall than minimizing the time-per-fastening
For approval or certificate information, please see individual items.
Hilti Tool Service
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- 3-month no-cost period after each paid repair
