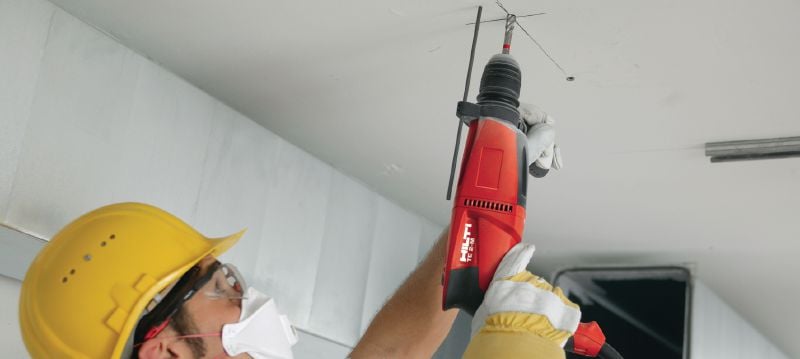

TE 2-M Rotary hammer
Compact, multi-purpose triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling
- Weight according EPTA Procedure 01/2003 without battery: 2.9 kg
- Optimum hammer drilling range: 4 - 12 mm
- Single impact energy: 1.8 J
Customers also searched for Electrical, Electrician, Building, Construction or Rotary.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
EX. VAT
From ZAR 10,669.57
Technical Data
Weight according EPTA Procedure 01/2003 without battery
2.9 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.8 J
Working mode
Hammer drilling, Drilling
Hammer drilling diameter range
4 - 22 mm
Hammer drilling RPM
1200 rpm
Full hammering frequency
4600 impacts/minute
Functionality
2nd gear for drilling in metal, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.1 m/s² 1
Triaxial vibration for chiselling in concrete
13.5 m/s² 2
A-weighted emission sound pressure level
91 dB (A) 3
Dimensions (LxWxH)
360 x 89 x 203 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Three-mode SDS Plus (TE-C) rotary hammer – for hammer drilling plus 2 gears for rotary-only drilling
- Sturdy motor with high load rating for maximum reliability
- Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
- Electronic switch for precise hole-starting
- 360° side handle adjusts easily for preference or for use in tight spaces
Applications
- Everyday hammer drilling in concrete, masonry and natural stone
- 2 gears for optimal drilling in steel, wood and plastics using optional Quick-Release Chuck
- Driving screws using the optional bit holder
- Reverse feature assists in the removal of stuck drill bits
For approval or certificate information, please see individual items.
Hilti Tool Service
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
Related Products
Ultimate SDS Plus (TE-C) hammer drill bits sets with different bit diameters and lengths (metric)
Chucks and side handles for use with TE-C (SDS Plus) rotary hammers
